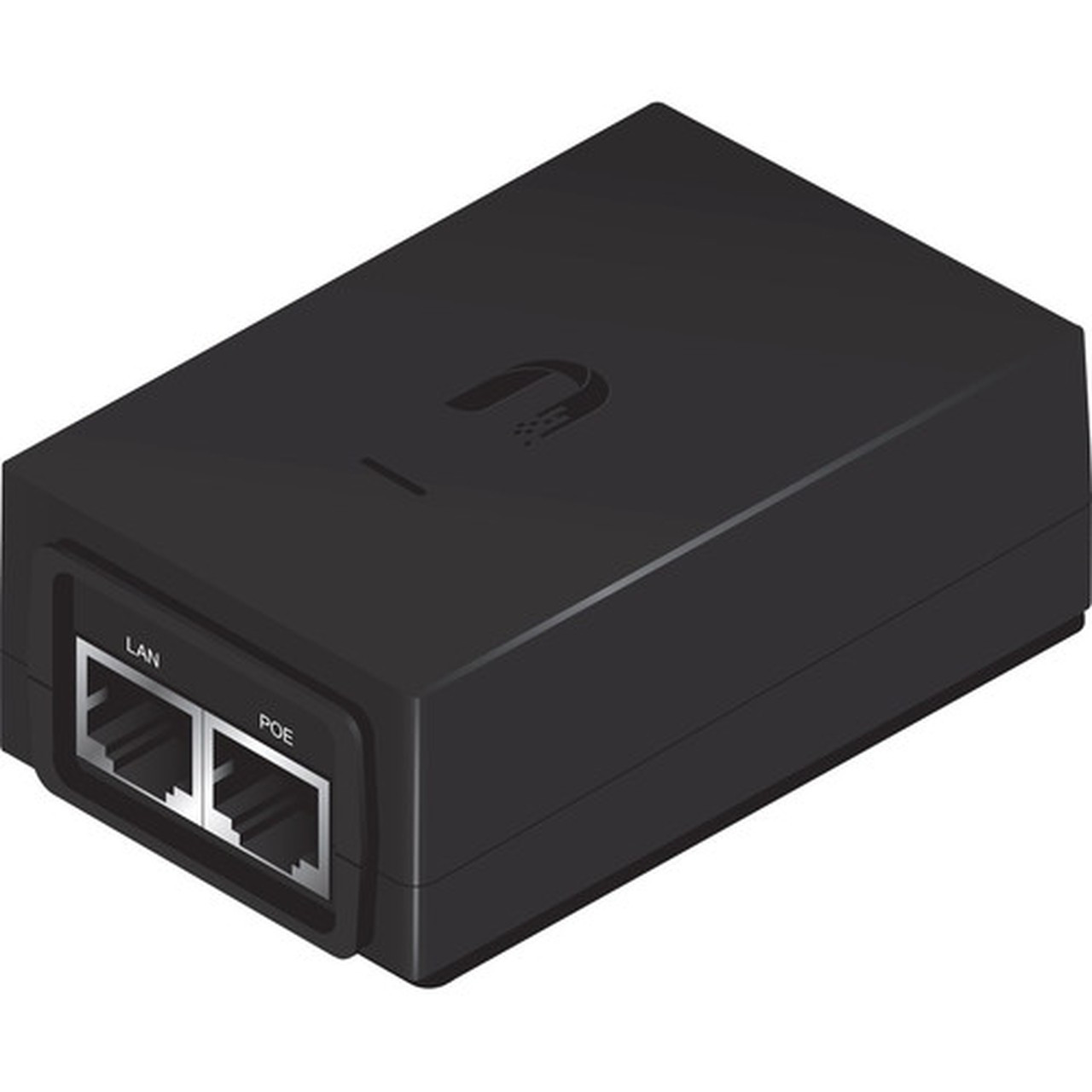

Ubiquiti POE-48-24W-G Power over Ethernet Injector - 110 V AC, 220 V AC Input - 48 V DC, 500 mA Output - 1 Ethernet Input Port(s) - 1 (POE-48-24W-G)

Marketing Information:

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices, including:

• airFiber®
• airMAX®
• EdgeMAX®
• mFi®
• UniFi® AP
• UniFi Protect / airVision®
• UniFi LED
• UFiber

Ubiquiti PoE Adapter Compatibility with the airGateway®

Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber's local network to the WISP network.

The airGateway is available in three models:

• airGateway Standard model with an internal antenna
• airGateway Pro Dual-Band Wi-Fi model with an internal antenna
• airGateway-LR Long-range Wi-Fi model with an external antenna for extended range

Protection

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.

Protection Type: Surge Protection,Clamping Protection,Peak Pulse Current

Input Voltage: 120 V AC,230 V AC

Maximum Output Voltage: 48 V DC

Maximum Input Current: 600 mA

Maximum Output Current: 500 mA

Maximum Output Power: 24 W

Input Ports: 1 x Gigabit Ethernet

Output Ports: 1 x PoE

Height: 1.30" (33.02 mm)

Width: 2.36" (59.94 mm)

Depth: 3.62" (91.95 mm)

Weight (Approximate): 158.5 g

Certifications & Standards:
