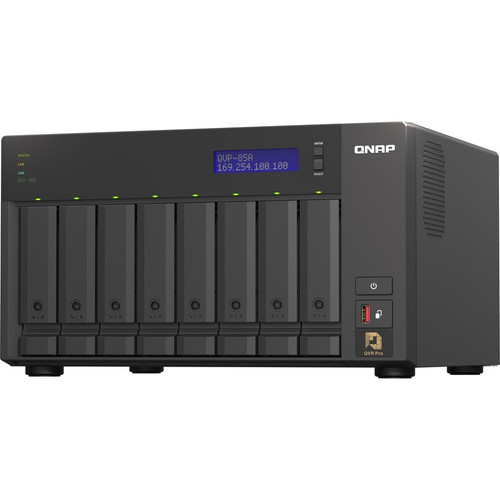

QNAP QVP-85A-US 8-Bay High-Performance NVR - 48 Channel - Full HD - 16GB RAM - HDMI
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This NVR features a 16GB memory configuration to handle simultaneous video streams and processing tasks efficiently. It records in multiple industry-standard formats including H.264, H.265, MPEG-4, Motion JPEG, and MxPEG, offering flexibility for various camera types and compression needs.
The system supports both PAL and NTSC video signal formats, making it compatible with surveillance equipment worldwide. Wired Ethernet connectivity ensures stable network performance, while remote management capabilities allow administrators to monitor and configure the system from any location.
This section brings together practical product details such as Total Number of Channels, Connectivity Technology, Recording Formats, Standard Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The QVP-85A-US provides scalable surveillance infrastructure with professional features typically found in enterprise systems. Its 48-channel capacity addresses growing security needs without requiring immediate hardware upgrades.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Density Storage, Comprehensive Connectivity.
High-Density Storage
Eight drive bays support substantial storage expansion for extended video retention periods, accommodating both 3.5" and 2.5" hard drives with included mounting hardware.
- 8 HDD trays included
- Screws for both drive sizes
- Hard disk tray key for security
Comprehensive Connectivity
Multiple interface options including HDMI for local monitoring, USB for peripheral connections, and audio ports for integrated sound capture and playback.
- HDMI video output
- USB for easy expansion
- Dedicated audio ports
Deployment / Use Cases
This NVR is ideal for retail stores, small offices, warehouses, and residential properties requiring multi-camera surveillance systems. Its 48-channel capacity makes it suitable for monitoring entrances, parking areas, hallways, and production floors simultaneously.
The system excels in environments where reliable, continuous recording is essential for loss prevention, safety compliance, and operational oversight. Businesses can deploy it as the central recording hub for IP camera networks, with the flexibility to scale storage as needs evolve.
This section brings together practical product details such as Total Number of Channels, Connectivity Technology, Recording Formats, Standard Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
SMB Security Operations
Provides the channel count and recording quality needed for comprehensive business security without enterprise-level complexity or cost.
Multi-Site Monitoring
Remote management capabilities enable centralized oversight of distributed locations from a single interface.
Physical Profile
The NVR features a compact rack-mountable design measuring 12.96" wide × 11.01" deep × 7.41" high (329.3 × 279.6 × 188.2 mm) with an approximate weight of 7.06 kg. This form factor optimizes space utilization in server racks or equipment cabinets while providing adequate ventilation for continuous operation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.41" (188.20 mm), 12.96" (329.30 mm), 11.01" (279.60 mm), 7.06 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 12.96" (329.30 mm)
- Depth
- 11.01" (279.60 mm)
- Height
- 7.41" (188.20 mm)
- Weight
- 7.06 kg
What's in the Box
The package includes all essential components for immediate deployment and storage expansion.
Highlights
- 48-channel capacity for comprehensive multi-camera surveillance
- Full HD recording at 1920×1080 resolution with 30 fps frame rate
- 8 drive bays for substantial storage expansion
- 16GB standard memory for smooth multi-stream processing
- HDMI output for local monitoring and configuration
- Wired Ethernet connectivity ensures reliable network performance
- Remote management capability for off-site system administration
- Supports H.264, H.265, MPEG-4, Motion JPEG, and MxPEG video formats
- Includes all necessary mounting hardware for drive installation
- Compact rack-mountable design for space-efficient deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | QVP-85A-US |
| Brand Name | QNAP |
| Product Line | QVR Pro |
| Product Model | QVP-85A |
| Product Name | 8-Bay High-Performance NVR for SMBs, SOHO, and Home |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 48 |
| Connectivity Technology | Wired |
| Recording Formats | Full HD |
| HD Recording | Yes |
| System Components | Network Video Recorder |
| Memory | |
| Standard Memory | 16 GB |
| Video | |
| Video Formats | H.264,H.265,MPEG-4,Motion JPEG,MxPEG |
| Video Signal Format | PAL,NTSC |
| Maximum Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| HDMI | Yes |
| Power Description | |
| Power Consumption | 65.03 W |
| Physical Characteristics | |
| Height | 7.41" (188.20 mm) |
| Width | 12.96" (329.30 mm) |
| Depth | 11.01" (279.60 mm) |
| Weight (Approximate) | 7.06 kg |
| Miscellaneous | |
| Package Contents | 8-Bay High-Performance NVR for SMBs, SOHO, and Home 1 x Power Cord 8 x HDD Tray 32 x Flat Head Screw (for 3.5" HDD) 24 x Flat Head Screw(for 2.5" HDD) Hard Disk Tray Key 2 x Ethernet Cable Cat.5e 1.8M Quick Installation Guide (QIG) 2 x HEATSINK |
| Country of Origin | Taiwan |
User Manual
FAQ
How many cameras can this NVR support simultaneously?
The QNAP QVP-85A-US supports up to 48 channels, meaning it can record video from 48 IP cameras concurrently. This capacity makes it suitable for medium-scale surveillance deployments covering multiple areas or entry points.
What is the maximum video resolution this recorder supports?
This NVR records at Full HD resolution of 1920 x 1080 pixels at 30 frames per second. This provides clear, detailed video suitable for identifying individuals, license plates, and other important security details.
How much storage capacity can this NVR accommodate?
With eight drive bays, the NVR can accommodate multiple hard drives for substantial storage expansion. The exact capacity depends on the drives installed, but the bay count allows for terabytes of storage to support extended recording periods.
Does this NVR include hard drives?
No, hard drives are not included. The package contains eight empty drive trays and all necessary mounting hardware for both 3.5" and 2.5" drives. Users must purchase compatible surveillance-grade hard drives separately.
What connectivity options are available for monitoring?
The NVR provides HDMI output for connecting to a local monitor, Ethernet for network connectivity, USB ports for peripheral devices, and both audio input and output ports. This comprehensive connectivity supports various monitoring and integration scenarios.
Can this NVR be managed remotely?
Yes, the QVP-85A-US includes remote management capabilities. Administrators can access the system, view live feeds, review recordings, and adjust settings from any location with network connectivity using compatible management software.
How much memory is installed?
It includes 16 GB of memory to support responsive multitasking and daily workloads.
