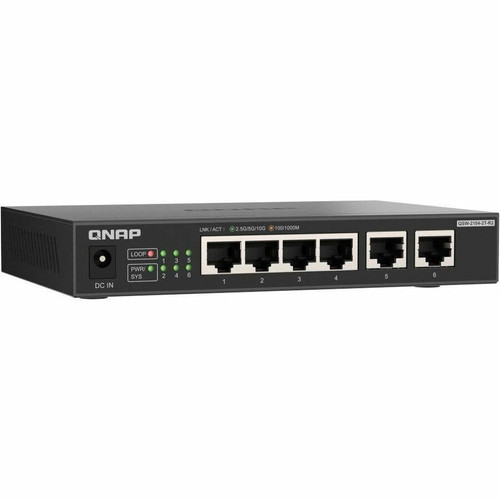

QNAP QSW-2104-2T-R2-US Ethernet Switch - 6 Ports - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet - - (QSW-2104-2T-R2-US)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Features: Energy Efficient,Fanless
Total Number of Network Ports: 6
Network (RJ-45): Yes
Port/Expansion Slot Details: 4 x 1/2.5/5 BASE-T Gigabit Ethernet RJ-45 Network Port,2 x 10 Gigabit Ethernet RJ-45 Network Port
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet,2.5 Gigabit Ethernet,5 Gigabit Ethernet,10 Gigabit Ethernet
Network Technology: 10/100/1000Base-T,2.5GBase-T,5GBase-T,10GBase-T
Maximum Data Transfer Rate: 1.25 GB/s
Layer Supported: 2
Networking Standards: IEEE 802.3az,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3an,IEEE 802.3x
Manageable: No
Input Voltage: 12 V DC
Power Source: Power Adapter,DC
Power Consumption: 18 W
Form Factor: Desktop,Compact
Height: 1.02" (26 mm)
Width: 6.30" (160 mm)
Depth: 4.33" (110 mm)
Weight (Approximate): 15.84 oz (449.06 g)
Limited Warranty: 2 Year
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 6 ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The desktop installation makes it ideal for deployments outside the wiring closet
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
[custom-specifications]
| Specifications | |
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | QSW-2104-2T-R2-US |
| Manufacturer Website Address | http://www.qnap.com |
| Brand Name | QNAP |
| Product Series | QSW |
| Product Model | QSW-2104-2T-R2-US |
| Product Name | QSW-2104-2T-R2-US Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Energy Efficient,Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 6 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 4 x 1/2.5/5 BASE-T Gigabit Ethernet RJ-45 Network Port,2 x 10 Gigabit Ethernet RJ-45 Network Port |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,2.5 Gigabit Ethernet,5 Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,2.5GBase-T,5GBase-T,10GBase-T |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3az,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3an,IEEE 802.3x |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source | Power Adapter,DC |
| Power Consumption | 18 W |
| Physical Characteristics | |
| Form Factor | Desktop,Compact |
| Height | 1.02" (26 mm) |
| Width | 6.30" (160 mm) |
| Depth | 4.33" (110 mm) |
| Weight (Approximate) | 15.84 oz (449.06 g) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
