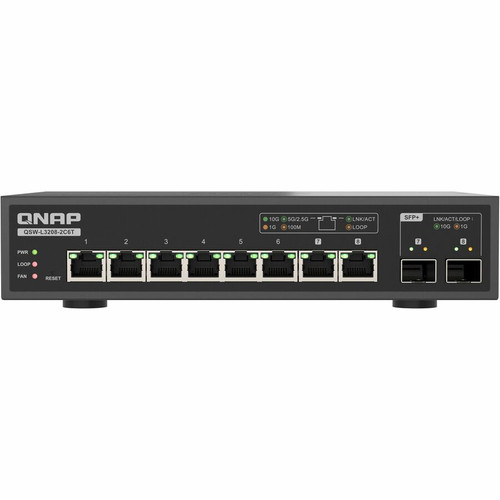

QNAP QSW-L3208-2C6T Ethernet Switch - 8 Ports - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet - - 2 (QSW-L3208-2C6T-US)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Features: Energy Efficient,Reset Button
Total Number of Network Ports: 8
Network (RJ-45): Yes
Port/Expansion Slot Details: 6 x 1/2.5/5/10BASE-T Gigabit Ethernet RJ-45 Network Port,2 x 10 Gigabit Ethernet RJ-45/SFP+ Combo Port
Media Type Supported: Twisted Pair,Optical Fiber
Ethernet Technology: Gigabit Ethernet,2.5 Gigabit Ethernet,5 Gigabit Ethernet,10 Gigabit Ethernet
Network Technology: 100/1000Base-T,2.5GBase-T,5GBase-T,10GBase-T,10GBase-X
Maximum Data Transfer Rate: 1.25 GB/s
Shared SFP Slot: Yes
Layer Supported: 2
Networking Standards: IEEE 802.3u,IEEE 802.3,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3z,IEEE 802.3an,IEEE 802.3ae,IEEE 802.3x,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.1ab,IEEE 802.1p,IEEE 802.3az
Manageable: No
Input Voltage: 12 V DC
Power Source: Power Adapter,DC
Power Consumption: 36 W
Form Factor: Desktop
Height: 1.73" (44 mm)
Width: 8.27" (210 mm)
Depth: 6.30" (160 mm)
Weight (Approximate): 2.84 lb (1290 g)
Limited Warranty: 2 Year
- Features 8 networking ports to easily establish a local network or expand your existing one
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The desktop installation makes it ideal for deployments outside the wiring closet
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
[custom-specifications]
| Specifications | |
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | QSW-L3208-2C6T-US |
| Manufacturer Website Address | http://www.qnap.com |
| Brand Name | QNAP |
| Product Series | QSW |
| Product Model | QSW-L3208-2C6T |
| Product Name | QSW-L3208-2C6T Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Energy Efficient,Reset Button |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 6 x 1/2.5/5/10BASE-T Gigabit Ethernet RJ-45 Network Port,2 x 10 Gigabit Ethernet RJ-45/SFP+ Combo Port |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,2.5 Gigabit Ethernet,5 Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 100/1000Base-T,2.5GBase-T,5GBase-T,10GBase-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Shared SFP Slot | Yes |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3u,IEEE 802.3,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3z,IEEE 802.3an,IEEE 802.3ae,IEEE 802.3x,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.1ab,IEEE 802.1p,IEEE 802.3az |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source | Power Adapter,DC |
| Power Consumption | 36 W |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.73" (44 mm) |
| Width | 8.27" (210 mm) |
| Depth | 6.30" (160 mm) |
| Weight (Approximate) | 2.84 lb (1290 g) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf3
Additional-pdf2
[/custom-user-manual]
