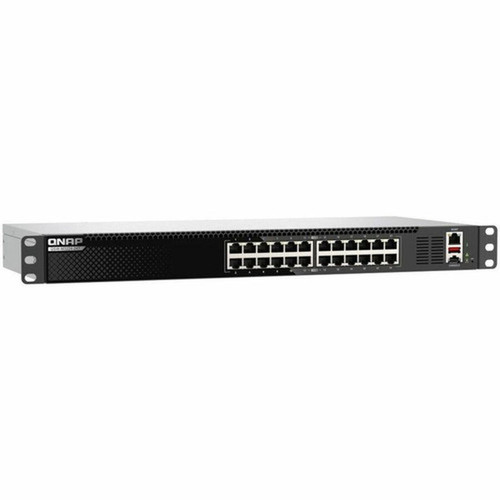

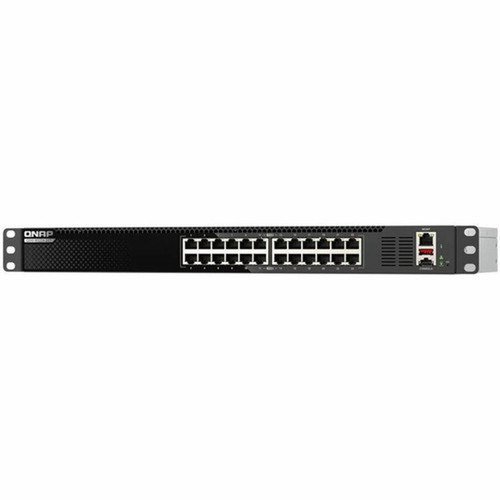

QNAP QSW-M3224-24T-US Layer 3 Managed Switch - 24-Port Multi-Gigabit (1/2. 5/5/10GbE) - Rack-Mountable 1U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3 of the OSI model, supporting advanced routing protocols for efficient network segmentation and traffic optimization. The 24 RJ-45 ports automatically negotiate speeds from 1GbE to 10GbE, accommodating legacy and modern devices simultaneously. A dedicated 1GbE management port provides out-of-band management access for secure configuration and monitoring.
The switch complies with comprehensive networking standards including IEEE 802.3 for Ethernet, IEEE 802.1Q for VLAN tagging, IEEE 802.3ad for link aggregation, and IEEE 802.1w for rapid spanning tree protocol. These standards ensure interoperability with existing network equipment and support for critical networking features.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Uplink Port. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The QSW-M3224-24T-US delivers significant advantages for network administrators seeking to future-proof their infrastructure while maintaining backward compatibility. Its multi-gigabit port architecture eliminates the need for separate switches for different speed requirements, reducing complexity and total cost of ownership.
Scalable Network Design
Layer 3 routing capabilities enable efficient inter-VLAN communication and network segmentation, supporting growth without requiring additional routing hardware.
- Advanced routing between VLANs
- Improved traffic management
- Reduced broadcast domains
Management Flexibility
Full management capabilities provide granular control over network configuration, monitoring, and security policies through intuitive management interfaces.
- Comprehensive configuration options
- Network monitoring tools
- Security policy enforcement
Physical Deployment Ready
The 1U rack-mountable design with included rackmount kit ensures quick deployment in standard server racks, optimizing data center space utilization.
- Standard 19-inch rack compatibility
- Minimal rack space consumption
- Included mounting hardware
Deployment / Use Cases
This switch is ideal for environments requiring high-speed connectivity with advanced routing capabilities. Its multi-gigabit ports make it particularly suitable for mixed-speed networks where some devices operate at traditional gigabit speeds while others require 2.5GbE, 5GbE, or 10GbE connections.
Common deployment scenarios include small to medium business core switching, branch office networking, departmental segmentation in larger organizations, and backbone connectivity for surveillance systems or storage networks. The Layer 3 functionality supports complex network architectures with multiple VLANs and routing between them.
Business Core Switching
Serve as the central switching point for office networks, connecting workstations, servers, printers, and other network devices with varying speed requirements.
Departmental Segmentation
Implement network segmentation between departments while maintaining efficient routing between segments for shared resources and services.
Physical Profile
The switch features a compact 1U rack-mountable design measuring 1.74 inches in height, 17.26 inches in width, and 7.48 inches in depth. This standard form factor ensures compatibility with most server racks while minimizing space consumption. The included rackmount kit facilitates secure installation in 19-inch rack enclosures.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.74" (44.20 mm), 17.26" (438.50 mm), 7.48" (190 mm), 6.46 lb (2930 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.26" (438.50 mm)
- Depth
- 7.48" (190 mm)
- Height
- 1.74" (44.20 mm)
- Weight
- 6.46 lb (2930 g)
What's in the Box
The package includes all necessary components for immediate deployment and operation of the switch.
Highlights
- 24 multi-gigabit Ethernet ports supporting 1GbE, 2.5GbE, 5GbE, and 10GbE speeds
- Layer 3 routing capability for scalable network design and inter-VLAN communication
- Managed switch with comprehensive configuration and monitoring options
- 1U rack-mountable form factor with included mounting hardware
- Dedicated 1GbE management port for secure out-of-band access
- Supports twisted pair cabling for cost-effective deployment up to 100 meters
- Comprehensive IEEE networking standards compliance for interoperability
- 116.90W power consumption with 12V AC and 230V AC input options
- 2-year limited warranty for peace of mind
- Includes power cord, rackmount kit, and quick installation guide
Specifications
| Specifications | |
|---|---|
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | QSW-M3224-24T-US |
| Brand Name | QNAP |
| Product Model | QSW-M3224-24T |
| Product Name | QSW-M3224-24T Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Technical Information | |
| Features | Reset Button |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 24 x 1/2.5/5/10 BASE-T Gigabit Ethernet RJ-45 Network Port,1 x 1 Gigabit Ethernet RJ-45 Management Port |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,2.5 Gigabit Ethernet,5 Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 1000Base-T,2.5GBase-T,5GBase-T,10GBase-T |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3an,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1w,IEEE 802.3ad,IEEE 802.1ab,IEEE 802.1p |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 12 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Power Consumption | 116.90 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.74" (44.20 mm) |
| Width | 17.26" (438.50 mm) |
| Depth | 7.48" (190 mm) |
| Weight (Approximate) | 6.46 lb (2930 g) |
| Miscellaneous | |
| Package Contents | QSW-M3224-24T Layer 3 Switch Power Cord Rackmount kit Quick Installation Guide (QIG) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What speeds do the 24 Ethernet ports support?
The 24 RJ-45 ports support multi-gigabit Ethernet speeds including 1 Gigabit Ethernet (1GbE), 2.5 Gigabit Ethernet (2.5GbE), 5 Gigabit Ethernet (5GbE), and 10 Gigabit Ethernet (10GbE). This allows the switch to automatically negotiate the optimal speed with connected devices, accommodating both legacy equipment and modern high-speed devices on the same switch.
What does Layer 3 switching capability provide?
Layer 3 switching enables the switch to perform routing functions between different network segments or VLANs. This allows for more efficient network design with reduced broadcast traffic, improved security through segmentation, and better traffic management without requiring a separate router for inter-VLAN communication. It supports scalable network growth as your organization expands.
How is this switch managed and configured?
This is a fully manageable switch with a dedicated 1GbE management port for out-of-band management access. It supports comprehensive configuration options through web-based management interfaces or command-line interfaces, allowing network administrators to configure VLANs, quality of service settings, security policies, port configurations, and monitor network performance and traffic patterns.
What rack mounting options are available?
The switch features a standard 1U rack-mountable form factor compatible with 19-inch server racks. The package includes a complete rackmount kit with all necessary hardware for secure installation. The compact design measures 1.74 inches in height, making efficient use of rack space while providing 24 ports of multi-gigabit connectivity.
What networking standards does this switch support?
The switch complies with comprehensive IEEE networking standards including IEEE 802.3 for Ethernet, IEEE 802.3u for Fast Ethernet, IEEE 802.3ab for Gigabit Ethernet, IEEE 802.3bz for 2.5GbE and 5GbE, IEEE 802.3an for 10GBASE-T, IEEE 802.1Q for VLAN tagging, IEEE 802.1w for rapid spanning tree protocol, IEEE 802.3ad for link aggregation, and IEEE 802.1p for quality of service prioritization.
What is included in the package with the switch?
The package contains the QSW-M3224-24T Layer 3 Switch, a power cord for operation, a complete rackmount kit with all necessary mounting hardware for installation in standard 19-inch server racks, and a quick installation guide to facilitate setup. All essential components are included for immediate deployment in your network environment.
