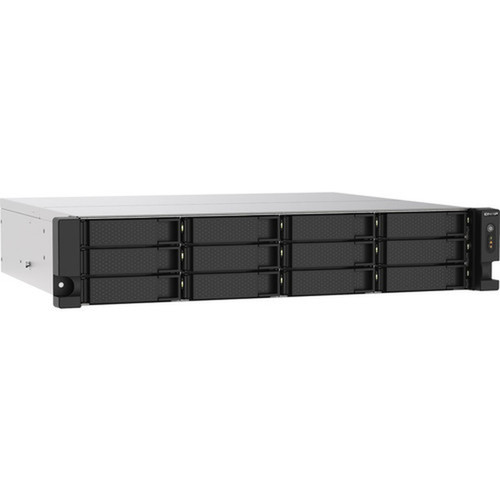

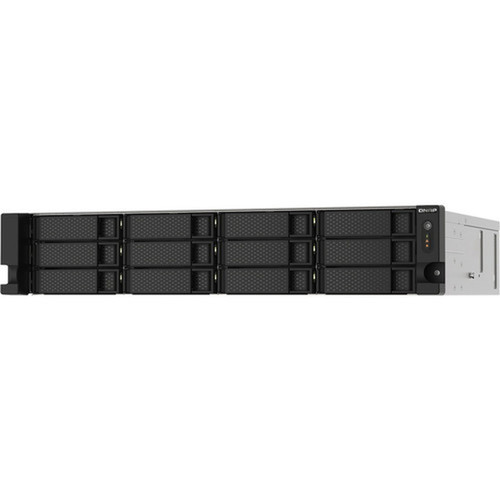

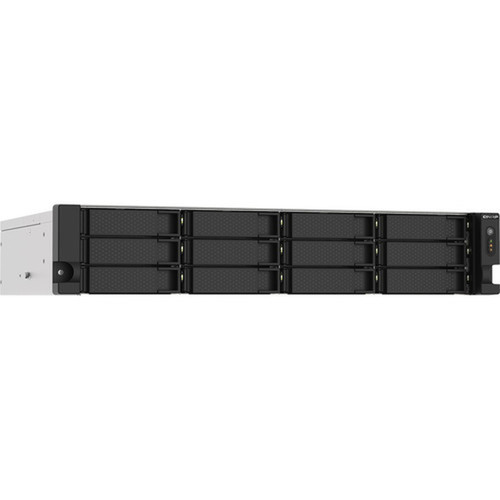

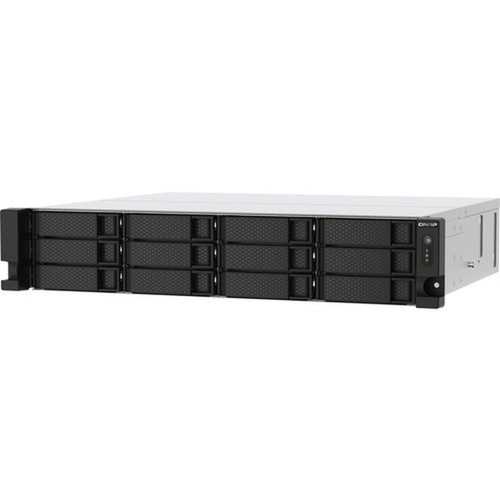

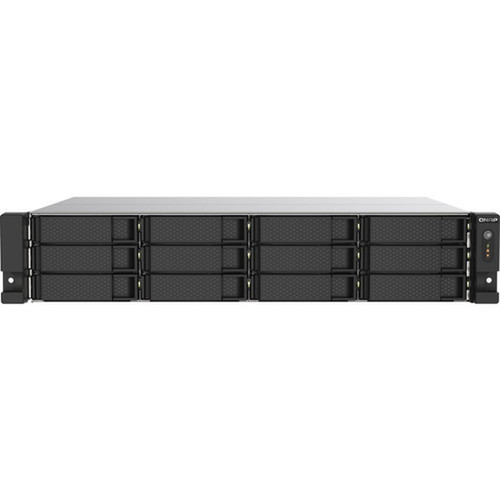

QNAP TS-1273AU-RP-8G-US 12-Bay Rackmount SAN/NAS Storage System - AMD Ryzen V1500B Quad-core 2.20 GHz - 8 GB DDR4 - 2.5GbE - 2U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the TS-1273AU-RP-8G-US lies the AMD Ryzen V1500B processor, a quad-core CPU operating at 2.20 GHz that provides robust processing capabilities for storage management, data deduplication, and virtualization tasks. The 8 GB of DDR4 SDRAM ensures smooth operation of the QTS 4.4.2 operating system and concurrent access to stored data, while 5 GB of flash memory accelerates system responsiveness.

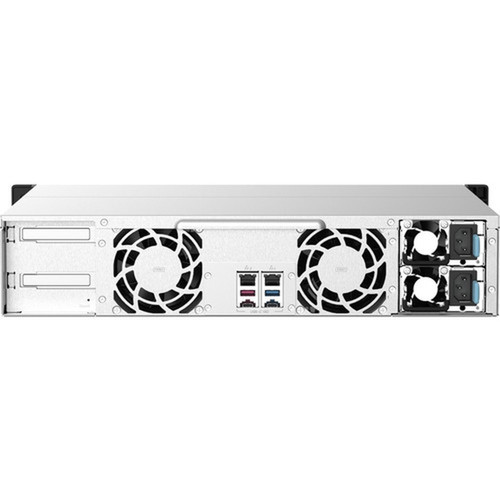

Network connectivity is handled by dual 2.5 Gigabit Ethernet ports that support modern high-speed networks, reducing bottlenecks during large file transfers and multi-user access. The system includes two PCI Express 3.0 x4 expansion slots for adding network cards, storage controllers, or other peripherals to extend functionality. Four USB ports (including one USB 3.2 Gen 1 port) provide convenient connectivity for external storage, UPS management, or peripheral devices.
Key Product Advantages
The TS-1273AU-RP-8G-US combines enterprise storage features with approachable management through QNAP's QTS operating system. The redundant power supply configuration ensures continuous operation even during a power supply failure, while the 2U rackmount design optimizes data center space utilization without compromising on drive capacity.
Comprehensive RAID Protection
Supports eight RAID levels plus JBOD and hot spare configurations, allowing organizations to balance performance, capacity, and data protection according to their specific requirements.
- RAID 0, 1, 5, 6, 10, 50, 60 support
- JBOD for individual drive management
- Hot spare functionality for automatic rebuilds
High-Speed Network Connectivity
Dual 2.5 Gigabit Ethernet ports provide 2.5x the throughput of standard Gigabit Ethernet, reducing network bottlenecks during simultaneous access by multiple users or applications.
- 2 x 2.5GbE RJ-45 ports
- Backward compatible with 1GbE networks
- Supports link aggregation for increased bandwidth
Enterprise Reliability Features
Redundant power supplies with 300W capacity each ensure continuous operation, while the rackmount design with proper ventilation maintains optimal operating temperatures for long-term reliability.
- Dual hot-swappable power supplies
- 2U rack-optimized cooling
- Tool-less drive tray design
Deployment / Use Cases
The TS-1273AU-RP-8G-US serves as a versatile storage platform suitable for various business scenarios. Its 12-bay capacity and robust processing make it ideal for departmental file sharing, backup repositories, and virtualization storage where balanced performance and capacity are required.
Small to medium businesses can deploy this system as a centralized storage solution for office documents, collaborative projects, and email archives. IT departments appreciate the flexibility to start with a few drives and expand as storage needs grow, while the comprehensive protocol support ensures compatibility with Windows, macOS, and Linux environments through SMB, AFP, and NFS protocols.
Virtualization Storage
Provides shared storage for VMware, Hyper-V, or Proxmox environments through iSCSI or NFS protocols, enabling features like vMotion, high availability, and centralized management of virtual machines.
Backup and Archiving
Serves as a target for backup software like Veeam, Acronis, or Windows Server Backup, with RAID protection ensuring data integrity for long-term retention of critical business information.
Localization and Operating System
The QNAP TS-1273AU-RP-8G-US ships with the QTS 4.4.2 operating system, a comprehensive storage management platform designed for business environments. QTS provides an intuitive web-based interface that simplifies setup, monitoring, and administration of the storage system, making it accessible for IT professionals and small business owners alike. The operating system includes built-in applications for file sharing, backup, virtualization support, and multimedia management, enabling versatile deployment without additional software costs.
This system supports a wide range of network protocols, including TCP/IP, IPv4, IPv6, DHCP, iSCSI, DDNS, NAT, NFSv2, HTTP, HTTPS, WEBDAV, SSL, SSH, Telnet, FTP, CIFS/SMB, AFP, NFSv3, SMSC, SMTP, LDAP, UPnP, SNMP, NFS, SFTP, TFTP, SSL/TLS, FTPS, FXP, RSync, RTSP, PPTP, L2TP, IPSec, DLNA, SNMPv2, and SNMPv3. This extensive protocol compatibility ensures seamless integration into diverse IT infrastructures, supporting cross-platform file access from Windows, macOS, and Linux clients. The inclusion of security protocols like SSL/TLS and IPSec helps protect data in transit, while management protocols such as SNMPv3 facilitate monitoring in enterprise network environments.
While the system does not include specific localization features like keyboard layouts or regional power adapters, its global protocol support and standard rackmount design make it suitable for international deployments. The QTS interface is available in multiple languages, and the system's flexible configuration allows adaptation to various regional networking standards and storage requirements. The included power cords are compatible with North American outlets, but additional adapters may be needed for other regions, reflecting its focus on scalable storage solutions rather than region-specific hardware.
QTS 4.4.2 Operating System
Provides a robust platform for storage management with features like snapshot replication, virtualization station, and containerized applications. The system includes 5 GB of flash memory to accelerate OS responsiveness and application performance.
- Web-based management interface
- Built-in backup and sync applications
- Supports virtualization through iSCSI and NFS
Cross-Platform Protocol Support
Ensures compatibility with diverse client environments by supporting SMB for Windows, AFP for macOS, and NFS for Linux systems. This allows centralized storage access across mixed-OS networks without requiring additional gateway software.
- SMB/CIFS for Windows integration
- AFP for macOS file sharing
- NFS for Linux and Unix systems
Physical Profile
Designed for standard 19-inch server racks, the TS-1273AU-RP-8G-US occupies 2U of vertical space (3.5 inches) with dimensions of 18.98 inches wide and 35.42 inches deep. The chassis includes tool-less drive trays for easy installation and maintenance of storage drives. At 21.36 pounds, the system maintains a manageable weight for rack installation while providing substantial storage capacity in a compact form factor.
- Width
- 18.98" (482 mm)
- Depth
- 35.42 ft (10795 mm)
- Height
- 3.50" (89 mm)
- Weight
- 21.36 lb (9690 g)
What's in the Box
The TS-1273AU-RP-8G-US ships with all necessary components for immediate deployment in a rack environment.
Highlights
- 12-bay rackmount SAN/NAS storage system with support for HDDs and SSDs
- AMD Ryzen V1500B quad-core processor operating at 2.20 GHz
- 8 GB DDR4 SDRAM with 5 GB flash memory for system acceleration
- Dual 2.5 Gigabit Ethernet ports for high-speed network connectivity
- Comprehensive RAID support including 0, 1, 5, 6, 10, 50, 60, JBOD, and hot spare
- Two PCI Express 3.0 x4 expansion slots for adding network or storage cards
- Redundant 300W power supplies for continuous operation
- 2U rackmount design with tool-less drive trays for easy maintenance
- QTS 4.4.2 operating system with extensive protocol support
- Includes all necessary cables, screws, and installation guide
Specifications
| Specifications | |
|---|---|
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | TS-1273AU-RP-8G-US |
| Brand Name | QNAP |
| Product Series | TS-x73AU |
| Product Model | TS-1273AU-RP-8G |
| Product Name | TS-1273AU-RP-8G SAN/NAS Storage System |
| Product Type | SAN/NAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 12 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 12 |
| Number of Solid State Drive Installed | 0 |
| Flash Memory Capacity | 5 GB |
| Processor & Chipset | |
| Processor Manufacturer | AMD |
| Processor Type | Ryzen |
| Processor Model | V1500B |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2.20 GHz |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of 2.5"/3.5" Bays | 8 |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | PCI Express 3.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Software | |
| Operating System | QTS 4.4.2 |
| Management & Protocols | |
| Protocols | TCP/IP,IPv4,IPv6,DHCP,iSCSI,DDNS,NAT,NFSv2,HTTP,HTTPS,WEBDAV,SSL,SSH,Telnet,FTP,CIFS/SMB,AFP,NFSv3,SMSC,SMTP,LDAP,UPnP,SNMP,NFS,SFTP,TFTP,SSL/TLS,FTPS,FXP,RSync,RTSP,PPTP,L2TP,IPSec,DLNA,SNMPv2,SNMPv3 |
| Power Description | |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 300 W |
| Redundant Power Supply | Yes |
| Physical Characteristics | |
| Height | 3.50" (89 mm) |
| Width | 18.98" (482 mm) |
| Depth | 35.42 ft (10795 mm) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Weight (Approximate) | 21.36 lb (9690 g) |
| Miscellaneous | |

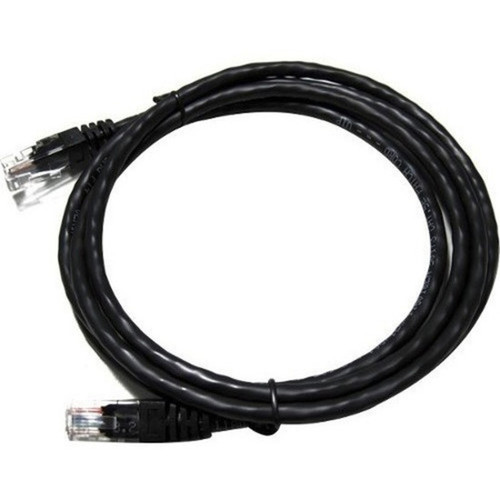

| Package Contents | TS-1273AU-RP-8G SAN/NAS Storage System 1 x Ethernet Cable 2 x Power Cords 48 x Flat Head Screws (for 3.5" HDD) 36 x Flat Head Screws (for 2.5" HDD) Quick Installation Guide (QIG) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What processor does this product use?
This product uses the AMD processor for everyday performance and multitasking.
How much memory is installed?
It includes 5 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 0 of storage for applications, files, and everyday business data.
What graphics or display support is listed?
Display-related specifications help position QNAP TS-1273AU-RP-8G SAN/NAS Storage System - AMD Ryzen V1500B Quad-core (4 Core) 2.20 GHz - 12 x HDD Supported - 0 x HDD Installed - (TS-1273AU-RP-8G-US) for the kind of viewing experience, readability, and workspace fit buyers may expect in business it/storage arrays & nas/nas storage system deployments.
What connectivity options are available?
Connectivity options include 2.5 Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is QTS 4.4.2, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
