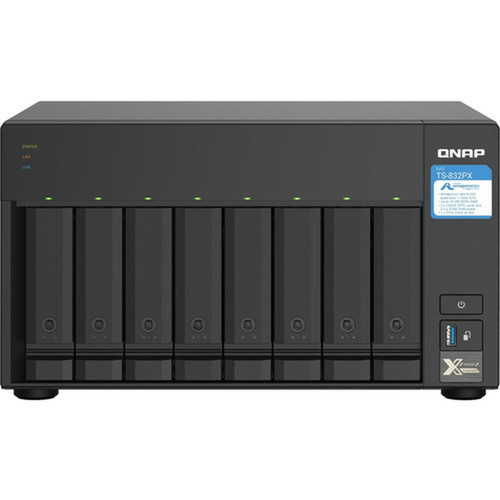

QNAP TS-832PX-4G-US 8-Bay Tower NAS Storage System - Annapurna Labs Alpine AL-324 Quad-core 1.70 GHz - 4 GB DDR4 - 10GbE - RAID Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the TS-832PX-4G-US is the Annapurna Labs Alpine AL-324 processor, a quad-core design operating at 1.70 GHz. This processor architecture is optimized for storage applications, balancing computational power with energy efficiency. The system includes 4 GB of DDR4 SDRAM, which supports multitasking and concurrent access from multiple users or applications.
Storage management is handled through Serial ATA/600 controllers that support eight drive bays with flexible configuration options. The NAS offers extensive RAID support including RAID 0, 1, 5, 6, 10, 50, 60, Hot Spare, and JBOD configurations, allowing administrators to prioritize performance, capacity, or data protection based on specific business needs.
Relevant factors for this section include Number of Hard Drives Supported, Number of Hard Drives Installed, Number of Solid State Drive Supported, Processor Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This QNAP NAS delivers several advantages for business storage deployments. The 10 Gigabit Ethernet connectivity ensures high-speed network performance that reduces transfer times for large files and improves responsiveness for multiple concurrent users. The comprehensive RAID support provides data protection options ranging from basic mirroring to complex nested configurations with hot spare capabilities.
High-Speed Connectivity
Dual RJ-45 ports with 10GbE support enable fast network transfers, making this NAS suitable for environments with demanding data throughput requirements.
- Reduces file transfer times
- Supports multiple concurrent users
- Minimizes network bottlenecks
Flexible Storage Management
Support for eight drive bays with multiple RAID options allows administrators to configure storage for performance, capacity, or redundancy based on specific business needs.
- Eight 2.5"/3.5" drive bays
- Comprehensive RAID support
- Hot spare capability
Expansion Ready
Three expansion slots (PCI Express 2.0 x2 and SFP+) provide room for additional network cards, storage controllers, or other expansion options as storage needs evolve.
- Future-proof design
- Add-on capability
- Network flexibility
Deployment / Use Cases
The TS-832PX-4G-US is well-suited for small to medium business environments requiring centralized storage for file sharing, backup, and data protection. Its tower form factor makes it appropriate for office environments where rack mounting isn't available or necessary, while still providing enterprise-grade storage features.
Common deployment scenarios include departmental file servers, backup targets for workstations and servers, media storage for creative teams, and centralized document repositories for collaborative work environments. The system's 10GbE connectivity makes it particularly valuable in settings where users regularly work with large files such as video editing, engineering design files, or database backups.
Business File Server
Provides centralized storage for departmental or workgroup file sharing with access controls and permission management through QTS 4.4.2 operating system.
Backup Storage Target
Serves as a destination for workstation and server backups with RAID protection to ensure backup data integrity and availability.
Localization and Operating System
The QNAP TS-832PX-4G-US runs the QTS 4.4.2 operating system, a purpose-built NAS platform designed for network-attached storage management. QTS provides a comprehensive web-based interface for configuration, monitoring, and administration, allowing administrators to manage storage resources, user permissions, and network settings through an intuitive dashboard. The operating system supports a wide range of network protocols including TCP/IP, SMB/CIFS, NFS, FTP, iSCSI, and numerous others, ensuring seamless integration with diverse client environments and applications.
This NAS is designed for global deployment with broad protocol compatibility that works across different geographic regions and network infrastructures. The system's management interface is available in multiple languages, supporting international teams with localized administrative access. While the hardware itself does not include region-specific power adapters or physical localization features, its software ecosystem and network protocol support make it adaptable to various business environments worldwide.
QTS 4.4.2 Operating System
Provides a complete storage management platform with file sharing, backup, virtualization support, and multimedia applications through an intuitive web interface.
- Web-based administration dashboard
- Multi-protocol file sharing support
- Backup and synchronization tools
- Virtualization and container support
Network Protocol Support
Extensive protocol compatibility ensures the NAS works with Windows, macOS, Linux, and Unix environments, as well as virtualization platforms and backup software.
- SMB/CIFS for Windows networks
- NFS for Unix/Linux environments
- FTP and SFTP for file transfers
- iSCSI for block-level storage
Physical Profile
The tower design measures 7.41 inches in height, 12.96 inches in width, and 11.06 inches in depth, with a weight of approximately 14.07 pounds. This compact footprint allows placement in office environments, server closets, or other spaces where rack mounting isn't required. The tower form factor provides easy front access to drive bays for maintenance and drive replacement without requiring specialized rack equipment or tools.
- Width
- 12.96" (329.30 mm)
- Depth
- 11.06" (280.80 mm)
- Height
- 7.41" (188.20 mm)
- Weight
- 14.07 lb (6380 g)
What's in the Box
The package includes all necessary components for initial setup and drive installation.
Highlights
- 8-bay tower NAS storage system with flexible drive configuration options
- Annapurna Labs Alpine AL-324 quad-core processor at 1.70 GHz
- 4 GB DDR4 SDRAM for responsive performance with multiple users
- 10 Gigabit Ethernet connectivity for high-speed network transfers
- Comprehensive RAID support including RAID 0, 1, 5, 6, 10, 50, 60, Hot Spare, and JBOD
- Three expansion slots (PCI Express 2.0 x2, SFP+) for future upgrades
- QTS 4.4.2 operating system with extensive protocol support
- Tower form factor suitable for office environments without rack mounting
- 250W power supply with efficient operation
- Two-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | TS-832PX-4G-US |
| Brand Name | QNAP |
| Product Model | TS-832PX-4G |
| Product Name | TS-832PX-4G SAN/NAS Storage System |
| Product Type | SAN/NAS Storage System |
| Storage | |
| Number of Hard Drives Supported | 8 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 8 |
| Number of Solid State Drive Installed | 0 |
| Flash Memory Capacity | 512 MB |
| Processor & Chipset | |
| Processor Manufacturer | Annapurna Labs |
| Processor Type | Alpine |
| Processor Model | AL-324 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 1.70 GHz |
| Memory | |
| Standard Memory | 4 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of 2.5"/3.5" Bays | 8 |
| Total Number of Expansion Slots | 3 |
| Expansion Slot Type | PCI Express 2.0 x2,SFP+ |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Software | |
| Operating System | QTS 4.4.2 |
| Management & Protocols | |
| Protocols | TCP/IP,IPv4,IPv6,DHCP,NAT,STP,DDNS,HTTP,HTTPS,SSH,Telnet,FTP,CIFS/SMB,AFP,SSL,iSCSI,SMSC,SMTP,WEBDAV,LDAP,UPnP,SNMPv2,SNMPv3,NFSv3,NFSv4,SFTP,TFTP,SSL/TLS,FTPS,FXP,RTSP,PPTP,L2TP,IPSec,DLNA |
| Power Description | |
| Maximum Power Supply Wattage | 250 W |
| Physical Characteristics | |
| Height | 7.41" (188.20 mm) |
| Width | 12.96" (329.30 mm) |
| Depth | 11.06" (280.80 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 14.07 lb (6380 g) |
| Miscellaneous | |
| Package Contents | TS-832PX-4G SAN/NAS Storage System 1 x Ethernet Cable 1 x Power Cord 32 x Flat Head Screws (for 3.5" HDD) 24 x Flat Head Screws (for 2.5" HDD) Quick Installation Guide (QIG) 2 x Drive Tray Keys |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What processor does this product use?
This product uses the Annapurna Labs processor for everyday performance and multitasking.
How much memory is installed?
It includes 512 MB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 0 of storage for applications, files, and everyday business data.
What graphics or display support is listed?
Display-related specifications help position QNAP TS-832PX-4G SAN/NAS Storage System - Annapurna Labs Alpine AL-324 Quad-core (4 Core) 1.70 GHz - 8 x HDD Supported - 0 x HDD - 8 x (TS-832PX-4G-US) for the kind of viewing experience, readability, and workspace fit buyers may expect in business it/storage arrays & nas/nas storage system deployments.
What connectivity options are available?
Connectivity options include 10 Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is QTS 4.4.2, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
