APC by Schneider Electric AP7557NA Basic Rack PDU - 11 kW - 42 Outlets - 36 C13 & 6 C19400V Input - 230V Output - 0U Vertical Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Basic Rack PDU delivers 11,000 watts of power capacity through a robust electrical architecture designed for continuous operation in commercial and industrial settings. The unit accepts 400V input power and distributes it as 230V AC through 42 IEC 60320 outlets, comprising 36 C13 connectors for standard server and networking equipment and 6 C19 connectors for higher-power devices.

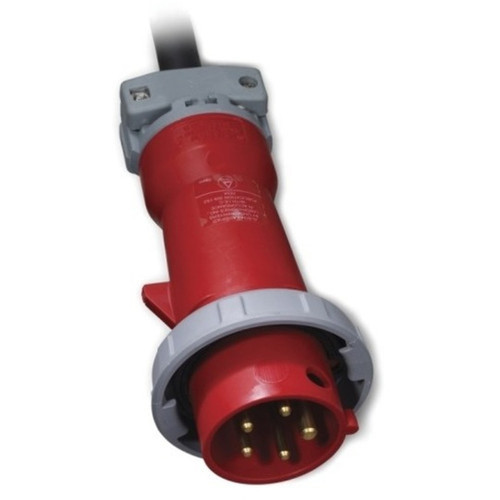

The PDU employs an IEC 60309 20A 3P+N+E plug/connector type, ensuring compatibility with standard three-phase power infrastructure. This configuration provides balanced power distribution across phases while maintaining proper grounding for equipment safety. The unit's electrical design includes overload protection mechanisms that help prevent circuit damage and enable quick recovery from temporary overload conditions.
This section brings together practical product details such as PDU Type, Plug/Connector Type, Receptacle Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This PDU's zero U vertical design represents a significant space-saving advantage in crowded rack environments. By mounting vertically along the side of the rack, the unit consumes zero rack units of front-to-back space, allowing for maximum equipment density while maintaining full power distribution capabilities.
High-Density Power Distribution
With 42 outlets supporting up to 11 kW, this PDU can power multiple servers, switches, and storage devices from a single distribution point, reducing cable clutter and simplifying power management in dense rack configurations.
- 42 total outlets
- 11 kW capacity
- Mixed C13/C19 configuration
Space-Efficient Installation
The zero U vertical mounting design preserves valuable rack space for active equipment while providing full power distribution functionality. The toolless mounting kit simplifies installation without requiring specialized tools or extensive downtime.
- Zero rack units consumed
- Vertical side mounting
- Toolless installation
Environmental Compliance
Manufactured in compliance with Restriction of Hazardous Substances (RoHS) directives, this PDU meets international environmental standards while delivering reliable performance in commercial IT environments.
- RoHS compliant
- Sustainable materials
- 2-year warranty
Deployment / Use Cases
This Basic Rack PDU is ideally suited for staffed data centers, server rooms, and network closets where reliable power distribution takes priority over advanced monitoring capabilities. The unit's 11 kW capacity and 42-outlet configuration make it particularly valuable in high-density environments where multiple servers, storage arrays, and networking equipment require centralized power distribution.
The PDU serves effectively in non-critical applications where basic power distribution meets operational requirements without the need for remote monitoring or advanced power management features. Its design supports environments where IT staff can physically access the equipment for routine maintenance and monitoring, making it a practical choice for on-premises infrastructure deployments.
Data Center Power Distribution
Deploy in standard 19-inch server racks to provide centralized power for multiple equipment shelves, reducing the need for multiple power strips and simplifying cable management in organized data center environments.
Server Room Infrastructure
Install in enterprise server rooms to distribute power to rack-mounted servers, network switches, and storage devices, supporting growing IT infrastructure while maintaining clean, organized power cabling.
Physical Profile
The PDU features a slim vertical profile measuring 70 inches in height, 2.20 inches in width, and 1.73 inches in depth, designed specifically for side-of-rack mounting without interfering with equipment installation or airflow. The unit weighs approximately 12.39 pounds, making it manageable for single-person installation in most rack environments.
The vertical orientation and compact dimensions allow the PDU to fit neatly alongside standard 19-inch rack equipment while providing full-length power distribution. The included 3-foot power cord offers sufficient reach for connecting to nearby power sources without excessive cable slack that could impede airflow or accessibility.
- Width
- 2.20" (56 mm)
- Depth
- 1.73" (44 mm)
- Height
- 0U
- Weight
- 12.39 lb (5620.01 g)
- Length
- 3 ft (0.90 m)
What's in the Box
The package includes all necessary components for immediate installation and operation in standard rack environments.
Highlights
- 11 kW power capacity supports high-density equipment deployments
- 42 total outlets with 36 C13 and 6 C19 connectors for mixed equipment needs
- Zero U vertical design preserves valuable rack space for active equipment
- 400V input to 230V output conversion for standard three-phase power infrastructure
- IEC 60309 20A 3P+N+E plug ensures proper three-phase power connection
- Vertical side mounting with toolless installation kit for easy deployment
- Overload protection helps prevent circuit damage and enables quick recovery
- RoHS compliant construction meets international environmental standards
- 2-year limited warranty provides product protection
- 3-foot power cord offers convenient connection to nearby power sources
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP7557NA |
| Brand Name | APC by Schneider Electric |
| Product Line | Basic Rack |
| Product Name | Basic Rack 42-Outlets 11kW PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | IEC 60309 20A 3P+N+E |
| Receptacle Type | IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C19,36 x IEC 60320 C13 |
| Power Description | |
| Input Voltage | 400 V |
| Output Voltage | 230 V AC |
| Power Rating (Watt) | 11 kW |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 3 ft (0.90 m) |
| Height | 70" (1778 mm) |
| Width | 2.20" (56 mm) |
| Depth | 1.73" (44 mm) |
| Weight (Approximate) | 12.39 lb (5620.01 g) |
| Miscellaneous | |
| Package Contents | Basic Rack 42-Outlets 11kW PDU Installation guide Rack mounting brackets Toolless mounting kit User manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this APC PDU?
This APC by Schneider Electric Basic Rack PDU delivers 11 kilowatts (11,000 watts) of power capacity, making it suitable for high-density server and networking environments where substantial power distribution is required. The unit can support multiple equipment loads simultaneously while maintaining reliable power delivery to all connected devices.
How many outlets does this PDU provide and what types are they?
The PDU provides 42 total outlets configured as 36 IEC 60320 C13 outlets for standard server and networking equipment and 6 IEC 60320 C19 outlets for higher-power devices. This mixed configuration allows you to power a variety of equipment types from a single distribution unit while maintaining proper connector compatibility for different power requirements.
What rack space does this PDU consume during installation?
This PDU features a zero U design that consumes no front-to-back rack units when mounted vertically along the side of the rack. The unit measures 70 inches in height but mounts externally to the rack frame, preserving all internal rack space for active equipment while providing full power distribution capabilities.
What input and output voltages does this PDU support?
The PDU accepts 400-volt input power and distributes it as 230-volt AC output to connected equipment. This voltage configuration is designed for standard three-phase power infrastructure commonly found in commercial and data center environments, providing efficient power conversion for server and networking equipment.
What type of power connector does this PDU use?
This PDU uses an IEC 60309 20A 3P+N+E plug/connector type, which provides a three-phase power connection with neutral and ground conductors. This connector type ensures proper balanced power distribution across phases while maintaining essential safety grounding for all connected equipment in commercial electrical installations.
What is included in the package with this PDU?
The package includes the Basic Rack 42-Outlets 11kW PDU unit, an installation guide, rack mounting brackets, a toolless mounting kit, and a user manual. These components provide everything needed for immediate installation in standard 19-inch rack environments without requiring additional hardware or specialized tools.
What power capacity is listed for this UPS?
The listed power specification is 11 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 400 V, which helps position the unit for the right load level and installation role.
