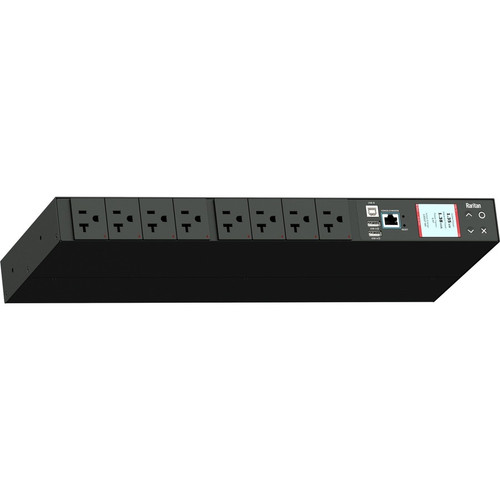

Raritan PX3-5145JR Networked PDU - 1. 5 kVA - 8 x NEMA 5-20R Outlets - 100V - Single Phase - NEMA 5-15P Input - Remote Switching
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates on a single-phase electrical system with 100V input and output voltage, handling up to 15 amps of input current. The 1.5 kVA power rating ensures sufficient capacity for powering multiple rack-mounted devices simultaneously while maintaining stable voltage delivery.
Network connectivity via RJ-45 enables remote management and monitoring through Raritan's PX3 platform. The unit supports comprehensive environmental monitoring with sensors for differential pressure, temperature, water detection, air flow, humidity, and contact closure inputs for external alarm integration.
This section brings together practical product details such as Phase, Plug/Connector Type, Receptacle Detail, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PX3-5145JR combines reliable power distribution with advanced monitoring capabilities in a space-efficient design. Remote outlet switching allows for individual outlet control, enabling power cycling of specific devices without physical access to the rack.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Intelligent Power Management, Comprehensive Environmental Monitoring.
Intelligent Power Management
Network connectivity enables real-time monitoring of power consumption, environmental conditions, and outlet status through a centralized management interface.
- Remote outlet control
- Power usage monitoring
- Environmental sensor integration
Comprehensive Environmental Monitoring
Built-in sensors track temperature, humidity, air flow, water presence, differential pressure, and contact closure events for complete environmental awareness.
- Multi-sensor capability
- Early warning detection
- External alarm integration
Deployment / Use Cases
This PDU is ideal for rack-mounted environments where space optimization and power management are critical. The 1U height and standard rack width make it suitable for installation in data center cabinets, network racks, and server rooms where vertical space is at a premium.
The eight NEMA 5-20R outlets provide sufficient connectivity for typical rack configurations, supporting servers, switches, storage devices, and other IT equipment. Remote management capabilities make this unit particularly valuable for distributed IT environments, colocation facilities, and locations where physical access is limited or requires coordination.
Data Center Racks
Provides reliable power distribution with monitoring for server cabinets in enterprise data centers and colocation facilities.
Network Equipment Closets
Delivers managed power to switches, routers, and other networking gear with environmental monitoring for early issue detection.
Physical Profile
With dimensions of 1.70 inches in height, 17.30 inches in width, and 7.20 inches in depth, this PDU occupies minimal rack space while delivering full functionality. The 1U form factor fits standard 19-inch rack mounting systems, and the 3.50 kg weight ensures stable installation without excessive load on rack rails.
The compact design allows for installation in space-constrained environments while maintaining accessibility to all outlets and network connections. The physical profile supports both front and rear rack mounting depending on infrastructure requirements and cable management preferences.
- Width
- 17.30" (439.42 mm)
- Depth
- 7.20" (182.88 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 3.50 kg
Highlights
- 1.5 kVA power capacity for reliable rack power distribution
- Eight NEMA 5-20R outlets supporting standard equipment connections
- Single-phase 100V operation with NEMA 5-15P input connector
- Remote outlet switching for individual outlet control
- RJ-45 network interface for centralized management
- Environmental monitoring with multiple sensor types
- Compact 1U form factor for space-efficient rack installation
- Two-year limited warranty for product protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3-5145JR |
| Brand Name | Raritan |
| Product Series | PX3 |
| Product Model | PX3-5145JR |
| Product Name | PX3-5145JR (8) NEMA 5-20R PDU |
| Product Type | PDU |
| Technical Information | |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P (2P3W) |
| Receptacle Detail | 8 x NEMA 5-20R |
| Environmental Sensors | Differential Pressure,Temperature,Water,Air Flow,Humidity,Contact Closure |
| Power Description | |
| Input Voltage | 100 V |
| Output Voltage | 100 V AC |
| Power Rating (VA) | 1.50 kVA |
| Input Current | 15 A |
| Management | |
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 7.20" (182.88 mm) |
| Weight (Approximate) | 3.50 kg |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this PDU?
The Raritan PX3-5145JR delivers 1.5 kVA of power capacity, supporting up to 15 amps of input current on a single-phase 100V electrical system. This capacity provides sufficient power for multiple rack-mounted devices including servers, switches, and storage equipment in typical IT environments.
How many outlets does this PDU have and what type are they?
This PDU features eight NEMA 5-20R outlets, which are standard 20-amp receptacles commonly used for IT equipment in North America. The outlet configuration supports simultaneous power delivery to multiple devices while maintaining proper electrical distribution across the unit.
What input connector does this PDU use?
The PDU utilizes a NEMA 5-15P (2P3W) input plug, which is a standard 15-amp, 3-prong connector for 100V single-phase power. This connector type is widely compatible with standard wall outlets and power sources in commercial and data center environments.
Can I control individual outlets remotely?
Yes, the PX3-5145JR supports remote outlet switching, allowing you to control power to each of the eight outlets individually through the network interface. This enables remote power cycling of specific devices without physical access to the rack, which is valuable for troubleshooting and maintenance.
What environmental monitoring capabilities does this PDU offer?
This PDU includes sensors for differential pressure, temperature, water detection, air flow, humidity, and contact closure inputs. These sensors provide comprehensive environmental monitoring around the rack, helping detect issues like overheating, water leaks, or airflow problems before they cause equipment damage.
What are the physical dimensions and rack compatibility?
The PDU measures 1.70 inches in height, 17.30 inches in width, and 7.20 inches in depth, with a weight of 3.50 kg. The 1U height and standard rack width make it compatible with 19-inch rack systems, allowing for space-efficient installation in data center cabinets and network racks.
What power capacity is listed for this UPS?
The listed power specification is 1.50 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes Yes, which helps buyers understand how many connected devices it can support in its intended deployment.
