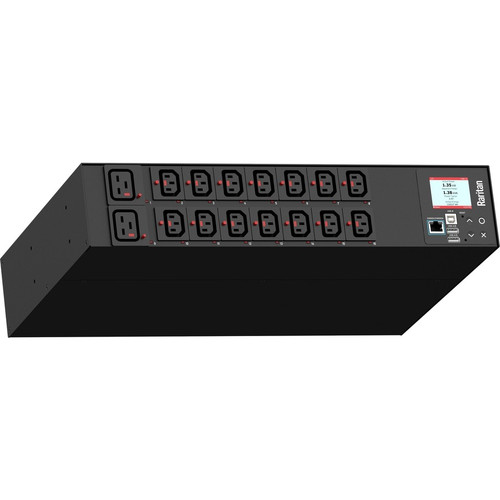

Raritan PX3-5367CR-E2 PDU - 3. 70 kVA Single Phase - 14x C13 & 2x C19 Locking Outlets - 230V - Remote Outlet Switching
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates on a single-phase 230V input and output, delivering 3.70 kVA with a 16A input current. The outlet configuration includes 14 locking IEC 60320 C13 receptacles and 2 locking IEC 60320 C19 receptacles, all fed through an IEC 60320 C20 (2P3W) plug connection.
Network connectivity via RJ-45 enables remote management capabilities, while integrated environmental sensors monitor differential pressure, temperature, water presence, air flow, humidity, and contact closure events. This technical foundation supports both power distribution and environmental awareness in critical infrastructure deployments.
This section brings together practical product details such as Phase, Plug/Connector Type, Receptacle Detail, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PX3-5367CR-E2 combines robust power distribution with intelligent management features that enhance reliability and operational control in IT environments.
Intelligent Power Control
Remote outlet switching allows individual outlet control for power cycling, load shedding, or scheduled power management without physical access to equipment.
- Reduce downtime through remote reboots
- Optimize power usage with scheduled controls
- Isolate problematic devices without affecting others
Comprehensive Environmental Awareness
Integrated sensors provide real-time monitoring of six environmental factors, enabling proactive response to conditions that could affect equipment performance or safety.
- Detect water leaks before damage occurs
- Monitor temperature gradients for cooling efficiency
- Track humidity to prevent condensation issues
Secure Power Connections
Locking C13 and C19 outlets prevent accidental disconnections in vibration-prone environments while maintaining standard IEC compatibility for broad equipment support.
- Eliminate accidental power loss
- Maintain equipment uptime
- Standard connectors ensure compatibility
Deployment / Use Cases
This PDU is engineered for environments where reliable power distribution and management are non-negotiable requirements. Its combination of capacity, outlet variety, and monitoring capabilities addresses common challenges in modern infrastructure deployments.
In data center racks, the unit efficiently distributes power to servers, switches, and storage devices while providing the remote management needed for lights-out operations. For network closets and telecommunications rooms, the environmental sensors help maintain optimal conditions for sensitive networking equipment.
Data Center Rack Deployment
Mount vertically in standard 19-inch racks to power multiple servers and networking devices with individual outlet control for maintenance and troubleshooting.
Server Room Power Management
Deploy as primary power distribution for server clusters, with environmental monitoring to ensure cooling efficiency and early leak detection.
Physical Profile
With dimensions of 3.50 inches high, 17.30 inches wide, and 11.50 inches deep, this PDU fits standard rack environments while providing substantial power capacity. The compact vertical profile maximizes usable rack space while delivering 3.70 kVA of power distribution. The unit's form factor supports both front and rear rack mounting scenarios common in data center and server room installations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.50" (88.90 mm), 17.30" (439.42 mm), 11.50" (292.10 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.30" (439.42 mm)
- Depth
- 11.50" (292.10 mm)
- Height
- 3.50" (88.90 mm)
Highlights
- 3.70 kVA power capacity for demanding equipment loads
- 14 locking C13 outlets plus 2 locking C19 outlets
- Single-phase 230V input and output configuration
- Remote outlet switching for individual outlet control
- Network management via RJ-45 interface
- Environmental sensors monitor six critical factors
- IEC 60320 C20 (2P3W) plug connection
- 16A input current rating
- Compact rack-mountable design
- 2-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3-5367CR-E2 |
| Brand Name | Raritan |
| Product Series | PX3 |
| Product Model | PX3-5367CR-E2 |
| Product Name | PX3-5367CR-E2 (14) IEC320 C13 Locking, (2) IEC320 C19 Locking PDU |
| Product Type | PDU |
| Technical Information | |
| Phase | Single Phase |
| Plug/Connector Type | IEC 60320 C20 (2P3W) |
| Receptacle Detail | 14 x IEC 60320 C13,2 x IEC 60320 C19 |
| Locking Receptacles | IEC 60320 C13,IEC 60320 C19 |
| Environmental Sensors | Differential Pressure,Temperature,Water,Air Flow,Humidity,Contact Closure |
| Power Description | |
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Power Rating (VA) | 3.70 kVA |
| Input Current | 16 A |
| Management | |
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 11.50" (292.10 mm) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this PDU?
The Raritan PX3-5367CR-E2 delivers 3.70 kVA (kilovolt-amperes) of power capacity. This rating indicates the maximum apparent power the unit can distribute to connected equipment, making it suitable for powering multiple servers, networking devices, or storage systems in a rack environment.
How many outlets does this PDU have and what types?
This PDU features 16 locking outlets total: 14 IEC 60320 C13 locking outlets and 2 IEC 60320 C19 locking outlets. The C13 outlets are standard for most IT equipment, while the C19 outlets support higher-current devices. All outlets use locking connectors to prevent accidental disconnections.
What voltage does this PDU support?
The PDU operates at 230 volts for both input and output. It uses a single-phase power configuration with an IEC 60320 C20 (2P3W) plug for connection to standard 230V power sources commonly found in commercial and data center environments.
Can I control individual outlets remotely?
Yes, this PDU supports remote outlet switching through its network interface. You can individually power cycle specific outlets, schedule power operations, or implement load shedding strategies without physical access to the equipment, which is particularly valuable for remote management and troubleshooting.
What environmental conditions does this PDU monitor?
The integrated environmental sensors monitor six factors: differential pressure, temperature, water presence, air flow, humidity, and contact closure. This comprehensive monitoring helps identify potential issues like cooling inefficiencies, water leaks, or humidity extremes before they affect equipment performance.
Is this PDU rack-mountable and what are its dimensions?
Yes, this PDU is designed for rack mounting with dimensions of 3.50 inches high, 17.30 inches wide, and 11.50 inches deep (88.90 mm x 439.42 mm x 292.10 mm). Its compact vertical profile fits standard 19-inch racks while providing substantial power capacity and outlet configuration for rack-based equipment deployments.
What power capacity is listed for this UPS?
The listed power specification is 3.70 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes Yes, which helps buyers understand how many connected devices it can support in its intended deployment.
