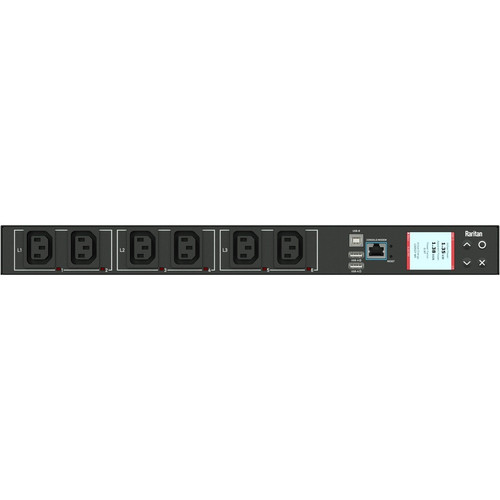

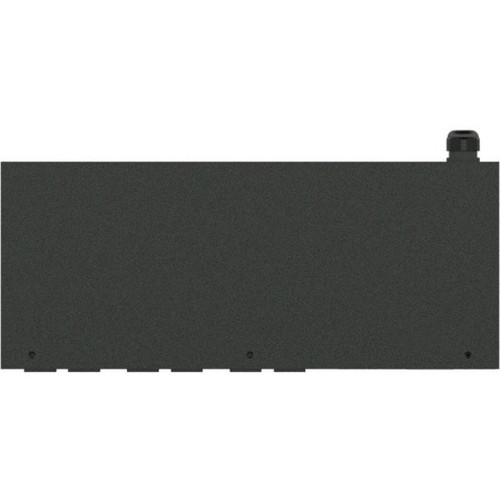

Raritan PX3-5543R Monitored Rack PDU - 11. 10 kVA - 6x IEC C13 Outlets - 400V AC Three-Phase Input - 1U Horizontal Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU accepts 400V AC three-phase input through an IEC 60309 connector rated for 16A, converting it to 230V AC output across all six outlets. The monitored design provides per-outlet metering data that supports energy optimization initiatives and helps identify circuit protection needs before they become critical.
The horizontal 1U form factor fits standard 19-inch racks with a compact footprint of 17.30" width, 7.20" depth, and 1.70" height. The unit weighs approximately 13.01 pounds, making it manageable for installation in both new and existing rack configurations.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PX3-5543R combines robust power distribution with intelligent monitoring capabilities that traditional basic PDUs lack. The ability to monitor single-or three-phase voltage remotely transforms how administrators manage power infrastructure, providing visibility that supports both operational efficiency and capacity planning.
Active Energy Optimization
Real-time metering at the outlet level identifies underutilized circuits and potential overload conditions, enabling data-driven decisions about power allocation and equipment placement.
- Identifies energy waste patterns
- Supports circuit protection planning
- Provides usage data for reporting
Remote Management Capabilities
Network connectivity allows administrators to monitor voltage, toggle outlets, and receive alerts from anywhere, reducing the need for physical access to crowded data center aisles.
- Outlet-level control via network
- Reduces physical access requirements
- Integrates with existing management systems
Deployment / Use Cases
The PX3-5543R is engineered for environments where precise power management and monitoring are essential. Its three-phase 400V input makes it suitable for data centers with higher voltage power distribution, while the six C13 outlets accommodate standard server and networking equipment power cords.
In server rack deployments, this PDU provides the monitoring capabilities needed for compliance with energy efficiency standards and sustainability initiatives. The ability to remotely switch outlets supports maintenance workflows where individual devices need to be power-cycled without affecting adjacent equipment.
Data Center Server Racks
Ideal for racks containing multiple servers, storage arrays, and networking gear where per-device power monitoring helps optimize capacity utilization and identify potential issues before they cause downtime.
Network Equipment Closets
Suits environments with high-density switches, routers, and other networking equipment that benefit from remote outlet control for maintenance and troubleshooting procedures.
Physical Profile
Designed specifically for rack installation, the PX3-5543R occupies a single rack unit (1U) with horizontal mounting orientation. The dimensions of 17.30" wide by 7.20" deep by 1.70" high ensure compatibility with standard 19-inch rack enclosures without requiring special mounting hardware or modifications.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.30" (439.42 mm), 7.20" (182.88 mm), 13.01 lb (5900 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.30" (439.42 mm)
- Depth
- 7.20" (182.88 mm)
- Height
- 1U
- Weight
- 13.01 lb (5900 g)
Highlights
- 11.10 kVA power capacity for demanding equipment loads
- Six IEC C13 outlets support standard server and networking gear
- 400V AC three-phase input compatible with data center power distribution
- Monitored design provides per-outlet metering for energy optimization
- Remote outlet switching via network RJ-45 interface
- Horizontal 1U form factor fits standard 19-inch racks
- Active monitoring of single-or three-phase voltage conditions
- Two-year limited warranty from manufacturer
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | PX3-5543R |
| Brand Name | Raritan |
| Product Series | PX3 |
| Product Model | PX3-5543R |
| Product Name | PX3-5543R 6-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 3P+N+E 6h 16A (4P5W) |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Power Description | |
| Input Voltage | 400 V AC |
| Output Voltage | 230 V AC |
| Power Rating (VA) | 11.10 kVA |
| Input Current | 16 A |
| Management | |
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 7.20" (182.88 mm) |
| Weight (Approximate) | 13.01 lb (5900 g) |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What power capacity does this PDU provide?
The Raritan PX3-5543R delivers 11.10 kVA (kilovolt-amperes) of power capacity. This rating indicates the maximum apparent power the unit can distribute to connected equipment, making it suitable for racks with multiple servers, storage devices, or networking gear that require substantial power delivery.
How many outlets does this PDU have and what type are they?
This PDU features six IEC 60320 C13 outlets. These are standard connectors used for most server, switch, and networking equipment power cords. The outlets deliver 230V AC output power from the 400V AC three-phase input, providing compatibility with typical data center equipment.
What input voltage does this PDU require?
The PX3-5543R requires a 400V AC three-phase input connection. It uses an IEC 60309 3P+N+E 6h 16A (4P5W) plug/connector type, which is designed for higher voltage data center power distribution systems rather than standard single-phase wall outlets.
What does 'monitored' mean for this PDU?
Monitored indicates the PDU provides active metering capabilities at the outlet level. This allows remote monitoring of voltage, current, and power consumption for each individual outlet via the network interface. This data supports energy optimization, helps identify circuit protection needs, and enables more informed capacity planning decisions.
How is this PDU installed in a rack?
The PX3-5543R is designed for horizontal mounting in standard 19-inch racks, occupying one rack unit (1U) of vertical space. Its dimensions of 17.30" wide by 7.20" deep by 1.70" high ensure proper fit in most rack enclosures without requiring special mounting hardware or modifications to the rack structure.
Can outlets be controlled remotely on this PDU?
Yes, the PX3-5543R supports remote outlet switching through its network RJ-45 interface. This allows administrators to toggle individual outlets on or off from a management console, enabling remote power cycling of equipment for maintenance or troubleshooting without physical access to the rack.
What power capacity is listed for this UPS?
The listed power specification is 11.10 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes Yes, which helps buyers understand how many connected devices it can support in its intended deployment.
