Reolink RP-PCB8MZ Professional 8MP Outdoor 4K Bullet Camera - 133° View - 5× Optical Zoom - PoE - Color/IR Night Vision - IP67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/2.8" CMOS image sensor to produce 8-megapixel video in H.265 and H.264 formats, optimizing bandwidth and storage efficiency. The varifocal lens offers a 5× optical zoom range, enabling users to adjust the field of view from a wide 133° diagonal down to 36.7° for focused monitoring. Night vision capabilities extend to 98.43 feet (30 meters) using a combination of infrared and color imaging, supported by four IR LEDs and an IR cut-off filter for accurate day/night transition.
Connectivity is handled through Fast Ethernet with support for multiple protocols including ONVIF, RTSP, and HTTPS, ensuring compatibility with various network video recorders and management systems. The camera includes built-in audio support with a microphone and speaker, plus smart detection features like human, vehicle, and cross-line detection powered by AI algorithms.
Key Product Advantages
The RP-PCB8MZ stands out with its combination of high-resolution imaging, flexible zoom, and robust outdoor design. The 8MP sensor captures crisp 4K footage, while the 133° wide view minimizes blind spots. AI-enhanced detection reduces false alarms by distinguishing between humans, vehicles, and other motion, improving security efficiency.
Advanced Night Vision
Delivers clear footage in low-light conditions up to 98 feet using both infrared and color night vision, ensuring reliable monitoring around the clock.
- Infrared/Color night vision
- 98.43 ft (30 m) range
- IR cut-off filter
Smart Detection Features
Utilizes AI to identify specific objects and events, enabling precise alerts and reducing unnecessary notifications.
- Human detection
- Vehicle detection
- Cross-line detection
- Motion triggered
Flexible Installation
Supports wall or ceiling mounting with PoE for single-cable power and data, streamlining setup in outdoor environments.
- PoE and DC power
- Metal construction
- IP67 weatherproof
Deployment / Use Cases
Ideal for perimeter security, parking lots, and commercial properties requiring detailed surveillance over wide areas. The 5× optical zoom allows operators to zoom in on specific points of interest without sacrificing image quality, making it suitable for monitoring entrances, gates, or high-value assets.
Its outdoor-rated IP67 construction and wide operating temperature range enable reliable performance in harsh weather, from freezing winters to hot summers. The camera's compatibility with ONVIF and standard protocols ensures seamless integration into existing security systems, while local storage via memory card offers backup recording options.
Perimeter Monitoring
Use the wide 133° view and zoom capability to cover large outdoor spaces like yards, fences, or building exteriors with minimal cameras.
Entry Point Surveillance
Deploy at gates, driveways, or doors where the AI detection can alert specifically to human or vehicle movement.
Physical Profile

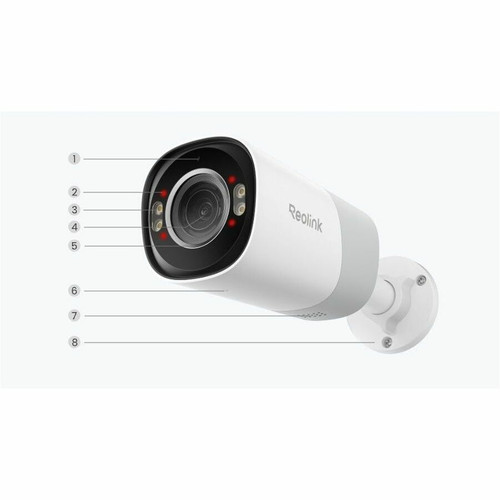

Constructed from durable metal, the bullet-form factor camera is designed for long-term outdoor use with an IP67 rating for dust and water resistance. It weighs 1.71 pounds (776 grams) and supports both wall and ceiling mounting, providing flexibility in installation. The compact design houses the varifocal lens, IR LEDs, and internal components while maintaining a professional appearance suitable for commercial settings.
- Weight
- 1.71 lb (776 g)
- Length
- 2.7 mm (0.11")
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- 8MP 4K Ultra HD resolution for detailed video
- 133° super-wide diagonal field of view
- 5× optical zoom with varifocal lens adjustment
- Color and infrared night vision up to 98 ft
- Power over Ethernet (PoE) for simplified wiring
- IP67-rated weatherproof metal housing
- AI-powered human and vehicle detection
- Supports H.265/H.264 video compression
- Built-in microphone and speaker for audio
- ONVIF compliant for system integration
Specifications
| Specifications | |
|---|---|
| Manufacturer | Reolink Digital Technology Co., Ltd. |
| Manufacturer Part Number | RP-PCB8MZ |
| Brand Name | Reolink |
| Product Line | Professional |
| Product Model | RP-PCB8MZ |
| Product Name | Smart 4K 133° View PoE Bullet Camera with 5× Optical Zoom |
| Packaged Quantity | 1 |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared/Color |
| Number of IR LEDs | 4 |
| Virtual Assistant Supported | Google Assistant |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | Horizontal: 108.6°- 32° Vertical: 56.2°- 18° Diagonal: 133°- 36.7° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.265,H.264 |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.7 mm (0.11") |
| Maximum Focal Length | 13.5 mm (0.53") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 5x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | HTTPS,SSL,TCP/IP,UDP,HTTP,IPv4,UPnP,RTSP,SMTP,NTP,DHCP,DNS,DDNS,FTP,ONVIF |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC,48 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Product Material | Metal |
| Mount Type | Wall Mount,Ceiling Mount |
| Form Factor | Bullet |
| Durability | Water Proof,Weather Proof,Water Resistant,Dust Resistant |
| Weight (Approximate) | 1.71 lb (776 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Factory Reset Button,Built-in Microphone,Built-in Speaker,Motion Detection,Human Detection,Vehicle Detection,Cross Line Detection,Motion Triggered |
| Indoor/Outdoor | Outdoor |
| Package Contents | Smart 4K 133° View PoE Bullet Camera with 5× Optical Zoom 1 x Ethernet Cable 1 x Waterproof Lid |
| Ingress Protection Rating | IP67 |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What is the maximum resolution and frame rate of this camera?
The Reolink RP-PCB8MZ captures video at 8 megapixels (3840 x 2160), which is true 4K Ultra HD resolution. It records at a maximum frame rate of 30 frames per second, ensuring smooth and detailed footage for monitoring and playback.
How does the night vision work and what is its range?
This camera features dual night vision modes: infrared and color. It uses four IR LEDs to provide black-and-white infrared vision and can also capture color video in low-light conditions. The effective night vision distance is up to 98.43 feet (30 meters), with an IR cut-off filter to automatically switch between day and night modes.
Can I adjust the zoom and field of view remotely?
Yes, the camera includes a 5× optical zoom varifocal lens that can be adjusted from 2.7 mm to 13.5 mm focal length. This allows you to change the field of view remotely, ranging from a wide 133° diagonal down to 36.7°, enabling you to focus on specific areas without physically moving the camera.
What power options are available for installation?
The camera supports both Power over Ethernet (PoE) and direct DC input. PoE allows a single Ethernet cable to provide both data and power, simplifying installation. Alternatively, you can use a 12 V DC or 48 V DC power adapter. This flexibility makes it suitable for new or existing wiring setups.
Is this camera suitable for outdoor use in extreme weather?
Absolutely. The camera is built with a metal housing and has an IP67 ingress protection rating, meaning it is dust-tight and can withstand temporary immersion in water. It operates in temperatures from -22°F to 131°F (-30°C to 55°C) and humidity from 10% to 90%, making it reliable for year-round outdoor surveillance.
What smart detection features does the camera include?
The camera uses AI-powered algorithms to detect and differentiate between humans, vehicles, and general motion. It also supports cross-line detection, which triggers alerts when objects cross a defined virtual line. These features help reduce false alarms and provide more accurate notifications for security monitoring.
