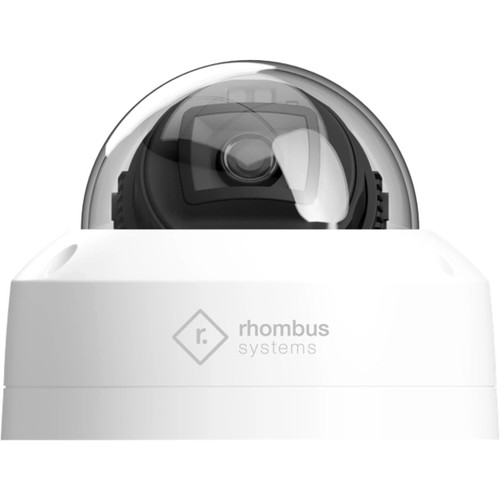

Rhombus R120-128GB 2MP Full HD Dome Network Camera - White - Indoor/Outdoor - 100ft IR Night Vision - Vandal Resistant IP66
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera captures video at a maximum resolution of 1920x1080 pixels using a 2-megapixel CMOS sensor. The fixed lens with an f/2.0 aperture ensures consistent image quality across varying lighting conditions. Wired connectivity via RJ-45 Ethernet provides stable network integration, while remote management capabilities allow for centralized control and monitoring of the camera feed.
The camera's technical design includes day/night functionality with automatic switching, built-in IR LEDs for infrared illumination, and support for SD card local storage. These features combine to create a standalone recording solution that can operate independently or as part of a larger surveillance network.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The R120-128GB delivers exceptional value through its combination of high-definition imaging, environmental durability, and flexible deployment options. Its vandal-resistant IK10 rating and weatherproof IP66 certification ensure reliable operation in challenging conditions where lesser cameras might fail.
24/7 Surveillance Capability
Infrared night vision extends monitoring capability through complete darkness, while the wide temperature range supports operation from -4°F to 122°F.
- 100-foot infrared night vision
- -4°F to 122°F operating range
- 95% maximum humidity tolerance
Professional-Grade Protection
The dome housing provides both physical protection and environmental sealing for long-term reliability in exposed installations.
- IK10 vandal resistance
- IP66 weatherproof rating
- TAA compliance for government use
Deployment / Use Cases
This camera is ideally suited for perimeter security, entryway monitoring, and indoor facility surveillance where both visibility and durability are essential. The multiple mounting options allow installation on ceilings, walls, poles, or junction boxes, adapting to various architectural requirements.
Commercial applications include retail stores, warehouses, office buildings, and educational facilities that require reliable video evidence collection. The indoor/outdoor rating makes it equally effective for monitoring loading docks, parking areas, lobbies, or production floors. Integration with existing network infrastructure is straightforward thanks to standard Ethernet connectivity and remote management capabilities.
Perimeter & Entry Security
Monitor building exteriors, gates, and entry points with weatherproof construction that withstands seasonal changes and potential tampering attempts.
Retail & Commercial Spaces
Provide comprehensive coverage of sales floors, stock rooms, and customer areas with high-definition video suitable for identifying individuals and activities.
Physical Profile
The white dome enclosure measures 4.60 inches in width and depth with a height of 3.54 inches, presenting a compact footprint that blends with architectural elements. The rounded design minimizes visual intrusion while providing 360-degree mounting flexibility. Five distinct mounting options—conduit, corner, pole, junction box, and ceiling—accommodate virtually any installation scenario without requiring additional brackets or adapters.
- Width
- 4.60" (116.84 mm)
- Depth
- 4.60" (116.84 mm)
- Height
- 3.54" (89.92 mm)
What's in the Box
The package includes all necessary components for immediate installation and operation.
Package contents include 1 x R120 Network Camera Torx Key Mounting Screws Anchors, 1 x R120 Network Camera. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 2-megapixel CMOS sensor delivers Full HD 1080p video
- 100-foot infrared night vision for 24/7 monitoring
- IP66 weatherproof and IK10 vandal-resistant construction
- Indoor/outdoor rated with wide temperature tolerance
- 96-degree field of view provides comprehensive coverage
- Five mounting options for flexible installation
- Local storage support via memory card
- Wired Ethernet connectivity with remote management
- TAA compliant for government and institutional use
- White dome design blends with architectural elements
Specifications
| Specifications | |
|---|---|
| Manufacturer | Rhombus Systems, Inc |
| Manufacturer Part Number | R120-128GB |
| Brand Name | Rhombus |
| Product Model | R120 |
| Product Name | R120 Network Camera |
| Packaged Quantity | 1 |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 100 ft (30.48 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 96° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Lens | |
| Lens Type | Fixed |
| Maximum Aperture | f/2 |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Conduit Mount,Corner Mount,Pole Mount,Junction Box Mount,Ceiling Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Weather Proof |
| Height | 3.54" (89.92 mm) |
| Width | 4.60" (116.84 mm) |
| Depth | 4.60" (116.84 mm) |
| Diameter | 4.64" (117.86 mm) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Day/Night,SD Card Local Storage,Built-in IR LED |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents | 1 x R120 Network Camera Torx Key Mounting Screws Anchors |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
FAQ
What resolution does this camera record at?
The Rhombus R120-128GB records at Full HD 1080p resolution (1920 x 1080 pixels) using its 2-megapixel CMOS sensor. This provides clear, detailed video suitable for identifying individuals and reading license plates at appropriate distances, making it effective for both security monitoring and evidence collection.
How far does the night vision reach?
The built-in infrared LEDs provide night vision coverage up to 100 feet (30.48 meters). This extended range ensures clear monitoring of large outdoor areas or long indoor corridors during complete darkness, supporting 24/7 surveillance operations without requiring additional external lighting.
Is this camera suitable for outdoor use?
Yes, this camera is rated for both indoor and outdoor use. It features IP66 weatherproof certification that protects against dust and powerful water jets, along with an operating temperature range of -4°F to 122°F (-20°C to 50°C). These specifications make it suitable for exposed installations in various climates and weather conditions.
What mounting options are available?
The camera supports five mounting methods: conduit mount, corner mount, pole mount, junction box mount, and ceiling mount. This flexibility allows installation on virtually any surface or structure without requiring additional brackets, making it adaptable to different architectural environments and surveillance requirements.
What durability ratings does this camera have?
The camera carries two important protection ratings: IK10 for impact resistance against vandalism and physical abuse, and IP66 for environmental protection against dust and water ingress. These ratings ensure reliable operation in challenging environments where cameras might be exposed to weather, tampering, or accidental impacts.
Does this camera support local storage?
Yes, the camera includes support for local storage via memory card. This allows for onboard recording without requiring continuous network connectivity to a central recorder, providing redundancy and flexibility in deployment scenarios. The camera also features day/night functionality and remote management capabilities for comprehensive surveillance control.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
