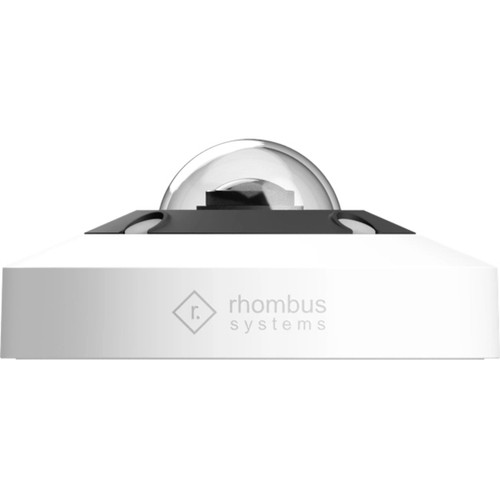

Rhombus R360-512GB 12MP Indoor/Outdoor Dome Network Camera - 3008 x 3008 Resolution - 100 ft IR Night Vision - White - Vandal Resistant IP66
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera employs a fixed f/2.8 aperture lens optimized for consistent light gathering across its operational spectrum. The wired Ethernet connectivity ensures stable network integration, while remote management capabilities allow administrators to configure, monitor, and maintain the system from a central location.
Local storage is supported via memory card, providing a backup or primary recording option independent of network video recorder systems. The camera's environmental resilience is certified for operation from -22°F to 131°F and up to 90% humidity, making it suitable for harsh climates.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The R360 combines high-resolution imaging with robust physical construction to address critical security needs. Its vandal-resistant dome housing and IP66 ingress protection guard against physical tampering and environmental elements like dust and water jets.
360° Panoramic Coverage
Eliminates blind spots with a complete spherical view, ideal for monitoring large open spaces, parking lots, or warehouse interiors without requiring multiple fixed cameras.
- Reduces total camera count
- Simplifies installation planning
- Provides continuous situational awareness
Extended Infrared Illumination
Integrated IR LEDs deliver clear monochrome video up to 100 feet in total darkness, ensuring reliable surveillance around the clock regardless of lighting conditions.
- No external IR illuminators needed
- Automatic day/night switching
- Consistent image quality in low light
Deployment / Use Cases
This camera is designed for versatile deployment across commercial, industrial, and institutional settings where high-fidelity video and durability are non-negotiable. Its multiple mounting options and indoor/outdoor rating provide flexibility for both new installations and retrofits.
Typical applications include perimeter security for manufacturing plants, monitoring retail store interiors and exteriors, overseeing school campuses and public parks, and securing transportation hubs like bus depots or parking garages. The white dome housing blends discreetly into many architectural environments while the IK10 impact rating deters deliberate damage.
Retail & Commercial Security
Monitor entrances, sales floors, stock rooms, and parking areas with clear identification-grade video to deter theft, document incidents, and ensure staff safety.
Industrial & Perimeter Monitoring
Withstand harsh outdoor conditions while providing detailed coverage of fences, gates, loading docks, and equipment yards, supporting both live viewing and forensic review.
Physical Profile
The dome measures 5.10" in width and depth with a 2.28" height, presenting a low-profile appearance that minimizes visual intrusion. Its compact dimensions facilitate installation in tight spaces while the comprehensive mounting kit supports conduit, corner, pole, junction box, and ceiling attachments. The white finish is resistant to UV fading and complements most building exteriors and interiors.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.28" (57.91 mm), 5.10" (129.54 mm), 5.10" (129.54 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.10" (129.54 mm)
- Depth
- 5.10" (129.54 mm)
- Height
- 2.28" (57.91 mm)
What's in the Box
The package includes all necessary hardware for a complete installation.
Package contents include R360 Network Camera Torx Key Mounting Screws Anchors Waterproof Ethernet Connector, R360 Network Camera. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 12-megapixel CMOS sensor for 3008x3008 ultra-high-definition video
- 100-foot infrared night vision with built-in IR LEDs
- 360° panoramic field of view eliminates blind spots
- IP66 and IK10 rated for weatherproof and vandal-resistant durability
- Indoor/outdoor operation from -22°F to 131°F (-30°C to 55°C)
- Multiple mounting options: conduit, corner, pole, junction box, ceiling
- Wired Ethernet connectivity with remote management capability
- Local storage via memory card slot
- 10-year limited warranty for long-term reliability
- TAA compliant for government and institutional procurement
Specifications
| Specifications | |
|---|---|
| Manufacturer | Rhombus Systems, Inc |
| Manufacturer Part Number | R360-512GB |
| Brand Name | Rhombus |
| Product Model | R360 |
| Product Name | R360 Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 100 ft (30.48 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 360° |
| Effective Camera Resolution | 12 Megapixel |
| Video | |
| Maximum Video Resolution | 3008 x 3008 |
| Lens | |
| Lens Type | Fixed |
| Maximum Aperture | f/2.8 |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Conduit Mount,Corner Mount,Pole Mount,Junction Box Mount,Ceiling Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Weather Proof |
| Height | 2.28" (57.91 mm) |
| Width | 5.10" (129.54 mm) |
| Depth | 5.10" (129.54 mm) |
| Diameter | 5.11" (129.79 mm) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,SD Card Local Storage,Built-in IR LED |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents | R360 Network Camera Torx Key Mounting Screws Anchors Waterproof Ethernet Connector |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 10 Year |
FAQ
What is the maximum video resolution of the Rhombus R360 camera?
The Rhombus R360 captures video at up to 3008 x 3008 resolution, which is equivalent to 12 megapixels. This high resolution provides exceptional detail for identifying faces, license plates, and other critical features in both live monitoring and recorded footage.
How far does the night vision reach on this camera?
The built-in infrared LEDs provide clear night vision up to 100 feet (30.48 meters) in total darkness. The camera automatically switches between color day mode and infrared night mode based on ambient light conditions, ensuring continuous surveillance.
Is this camera suitable for outdoor installation?
Yes, the R360 is rated for both indoor and outdoor use. It carries an IP66 ingress protection rating, meaning it is dust-tight and protected against powerful water jets. It also operates reliably in temperatures from -22°F to 131°F (-30°C to 55°C) and up to 90% humidity.
What mounting options are available for the R360 dome camera?
The camera supports versatile mounting including conduit, corner, pole, junction box, and ceiling installations. The included hardware kit contains screws, anchors, a Torx key, and a waterproof Ethernet connector to facilitate secure and weatherproof mounting in various locations.
Does the camera support local storage without a network video recorder?
Yes, the R360 features a memory card slot for local storage. This allows for on-camera recording independent of an NVR system, which can be useful for standalone deployments, backup recording, or locations with limited network infrastructure.
What is the warranty period for the Rhombus R360 network camera?
Rhombus backs the R360 camera with a 10-year limited warranty. This extended warranty period reflects the product's build quality and durability, providing long-term peace of mind for commercial and institutional security investments.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
