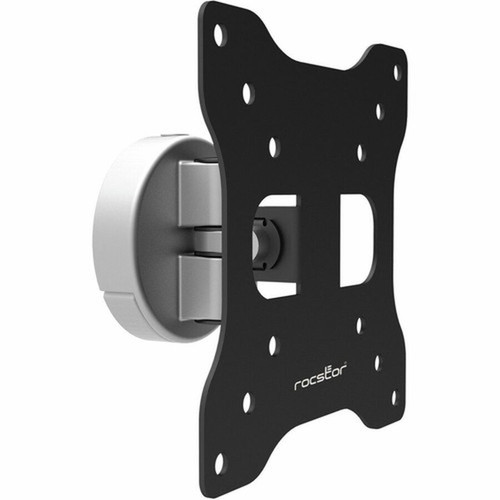

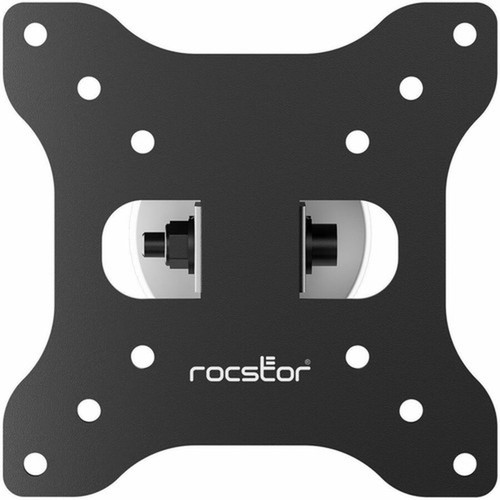

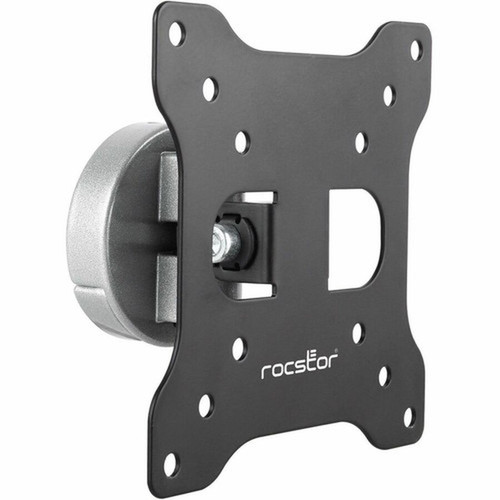

Rocstor Y10N025-S1 ErgoReach Wall Mount for Monitors & TVs - Silver Gray - 33 lb Capacity - 13"-34" Screens - VESA 50/75/100
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This wall mount delivers precise articulation with ±45° tilt and ±45° swivel ranges, allowing users to adjust viewing angles to reduce glare and achieve optimal ergonomic positioning. The pivot function supports portrait or landscape orientation changes, adapting to various workflow or entertainment needs.
Built-in cable management channels keep power and video cables organized, maintaining a clean, clutter-free appearance behind the display. The mount is VESA compatible with 50x50, 75x75, and 100x100 millimeter patterns, covering most consumer and business displays. Its compact dimensions—7.90 inches in height, 10.20 inches in width, and 11 inches in length—ensure it fits discreetly on walls without excessive protrusion.
This section brings together practical product details such as Device Supported, Number of Displays Supported, Maximum Load Capacity, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ErgoReach mount combines robust functionality with user-friendly design, offering several advantages for both installers and end-users. Its lightweight aluminum build reduces strain during installation while maintaining structural integrity under load.
Ergonomic Flexibility
Adjust tilt, swivel, and pivot to achieve comfortable viewing angles, reducing neck and eye strain during extended use.
- ±45° tilt for glare reduction
- ±45° swivel for shared viewing
- Pivot for orientation changes
Simplified Installation
The slide-in wall plate design allows for easy mounting and removal of displays without tools after initial setup.
- Quick attachment/detachment
- Reduces maintenance time
- Includes comprehensive hardware kit
Deployment / Use Cases
This wall mount is ideal for environments where desk space is limited or where a clean, professional appearance is essential. In corporate offices, it enables dual-monitor setups by freeing up desk real estate, while in home offices, it helps create organized workspaces with adjustable viewing positions.
For retail or hospitality settings, the mount securely displays digital signage or informational screens at optimal heights and angles. In residential entertainment areas, it supports TVs up to 34 inches, allowing for flexible placement in living rooms or bedrooms. The mount's compatibility with various display types makes it a versatile solution for mixed-device environments.
Physical Profile
Constructed from silver-gray aluminum, the mount offers a sleek, modern aesthetic that complements most interiors. Its compact footprint and low weight make it easy to handle during installation, while the durable material ensures long-term stability. The finish resists fingerprints and smudges, maintaining a clean appearance with minimal upkeep.
- Width
- 10.20" (259.08 mm)
- Height
- 7.90" (200.66 mm)
- Weight
- 15.52 oz (439.98 g)
- Length
- 11" (279.40 mm)
What's in the Box
The package includes all necessary components for installation and ongoing use.
Highlights
- Supports single displays up to 34 inches with 33 lb capacity
- ±45° tilt and swivel ranges for ergonomic viewing adjustments
- VESA compatible with 50x50, 75x75, and 100x100 mm patterns
- Lightweight aluminum construction in Silver Gray finish
- Slide-in wall plate for easy installation and maintenance
- Integrated cable management for organized setup
- Pivot function enables portrait or landscape orientation
- Backed by a 5-year limited warranty from Rocstor
- Complies with REACH and RoHS environmental standards
- Includes comprehensive installation hardware and manual
Specifications
| Specifications | |
|---|---|
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10N025-S1 |
| Brand Name | Rocstor |
| Product Line | ErgoReach |
| Product Name | Monitor Wall Mount - Aluminum |
| Packaged Quantity | 1 |
| Product Type | Wall Mount |
| Product Information | |
| Device Supported | Monitor,LED Display,Flat Panel Display,LCD Display,TV |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 33 lb (14968.55 g) |
| Minimum Screen Size Supported | 13" |
| Maximum Screen Size Supported | 34" |
| Features | +/- 45° Tilt,+/- 45° Swivel,Pivot,Cable Management,Swivel,Tilt,Easy to Apply,Lightweight,Sturdy,Durable |
| Physical Characteristics | |
| Color Family | Silver |
| Product Color | Silver Gray |
| Product Material | Aluminum |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 50 x 50,75 x 75,100 x 100 |
| Form Factor | Wall Mountable |
| Height | 7.90" (200.66 mm) |
| Width | 10.20" (259.08 mm) |
| Length | 11" (279.40 mm) |
| Weight (Approximate) | 15.52 oz (439.98 g) |
| Miscellaneous | |
| Package Contents | 1 x Display Mount 1 x Wrench 1 x Hex Key 2 x Screws 2 x Wall Screws 4 x Washers 4 x M4x14 mm Screws 4 x M5x14 mm Screws 1 x Instruction Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What types of displays are compatible with this wall mount?
The Rocstor ErgoReach mount supports monitors, LED displays, LCD flat panels, and TVs with screen sizes ranging from 13 inches to 34 inches. It is VESA compatible with 50x50, 75x75, and 100x100 millimeter mounting patterns, covering most consumer and business displays within the specified size and weight limits.
What is the maximum weight capacity of this mount?
This wall mount can support displays weighing up to 33 pounds (approximately 14,968.55 grams). This capacity accommodates a wide range of modern flat-panel displays and TVs within the supported screen size range, ensuring secure mounting without risk of overloading.
What adjustment features does this mount offer?
The mount provides ±45° tilt and ±45° swivel ranges, allowing users to adjust the viewing angle horizontally and vertically to reduce glare and achieve comfortable ergonomic positions. It also includes a pivot function that enables switching between portrait and landscape orientations, adapting to different content or workspace needs.
Is installation difficult, and what tools are included?
Installation is straightforward with the included hardware kit, which contains a wrench, hex key, screws, wall screws, washers, and mounting screws in M4x14 mm and M5x14 mm sizes. The slide-in wall plate design simplifies attaching and detaching the display after initial setup, reducing the time and effort required for maintenance or reconfiguration.
What warranty coverage does Rocstor provide for this mount?
Rocstor backs this ErgoReach wall mount with a 5-year limited warranty, covering defects in materials and workmanship. This warranty provides long-term assurance of product reliability and is complemented by lifetime free technical support for assistance with installation or usage questions.
Does this mount include cable management features?
Yes, the mount features integrated cable management channels that route power and video cables neatly behind the display. This helps maintain an organized, clutter-free appearance, reduces cable strain, and enhances the professional look of the installation in office or home environments.
