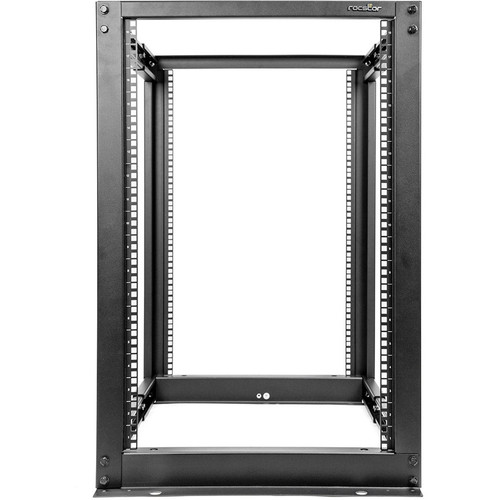

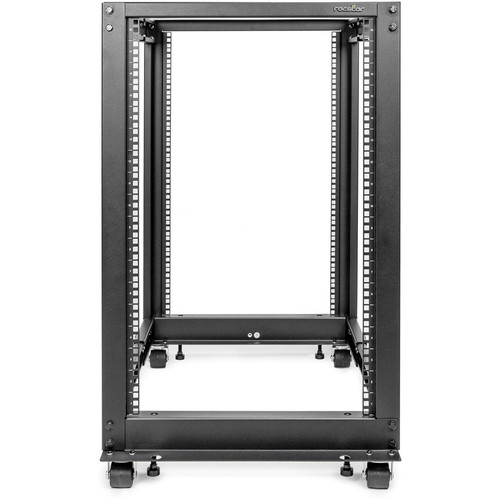

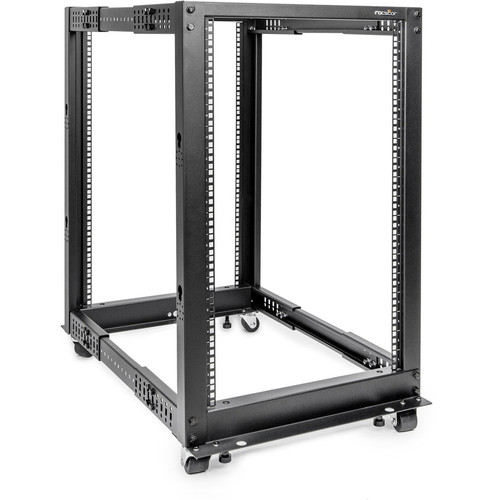

Rocstor SolidRack 18U Open Frame Rack - 4 Post - Adjustable Depth - For Patch Panel, Server, LAN Switch, KVM Switch, A/V Equipment, - (Y10E023-B1)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- SolidRack 18U Open Frame Rack - 4 Post - Adjustable Depth
- 4 x Caster
- 2 x Left Vertical Rail
- 2 x Right Vertical Rail
- 2 x Top Bracket
- 2 x Base Bracket
- 18 x M6 Flange Nut
- 18 x M6 Flat Washer
- 18 x M6 Hex Screw
- 8 x Cable Management Hook
- 8 x Hook Mounting Screw
- 8 x Corner Section
- 4 x Center Section
- 4 x Leveling Feet
- 4 x Grounding Wire
- 4 x Philips Head Screw
- 4 x Locking Washer
- 1 x 10mm Wrench
- 1 x 13mm Wrench
- 1 x Philips Head Screwdriver
- 24 x M6 Screw
- 24 x M6 Plastic Washer
- 24 x M6 Cage Nut
- 50 x M8 Flat Washer
- 50 x M8 Hex Screw
- 1 x Manual
Rack Type: Open Frame
Application/Usage: Patch Panel,Server,LAN Switch,KVM Switch,A/V Equipment,UPS
Features: Leveling Feet,Casters,Adjustable Mounting Rails,Cable Management,Adjustable Depth,Heavy Duty
Rack Post Quantity: 4
Form Factor: Floor Standing
Product Color: Black
Product Material: Cold-rolled Steel (CRS)
Static/Stationary Weight Capacity: 1200 lb (544310.84 g)
Height: 35.55" (902.97 mm)
Width: 23.62" (599.95 mm)
Depth: 41.30" (1049.02 mm)
Rack Height: 18U
Rack Width: 19" (482.60 mm)
Rack Depth: 41.30" (1049.02 mm)
Weight (Approximate): 59.30 lb (26898.03 g)
Package Contents:
Assembly Required: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- Rack Frame allows quick and easy retrieval of your items with better organizing and feasible mounting
- Comes in black color for a sophisticated and dazzling loo
- Built with cold-rolled steel (crs) to offer great resistance to damage and deterioration
- Floor Standing form factor for your convenience and simplicity of usage
- Patch Panel application, usage offers maximum items, valuables, equipment organizational, storage, placement reliability
- Leveling Feet feature for maximum items, valuables, equipment organizational, storage, placement convenience
[custom-specifications]
| Specifications | |
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10E023-B1 |
| Manufacturer Website Address | http://www.rocstor.com |
| Brand Name | Rocstor |
| Product Line | SolidRack |
| Product Name | SolidRack 18U Open Frame Rack - 4 Post - Adjustable Depth |
| Product Type | Rack Frame |
| Technical Information | |
| Rack Type | Open Frame |
| Application/Usage | Patch Panel,Server,LAN Switch,KVM Switch,A/V Equipment,UPS |
| Features | Leveling Feet,Casters,Adjustable Mounting Rails,Cable Management,Adjustable Depth,Heavy Duty |
| Rack Post Quantity | 4 |
| Physical Characteristics | |
| Form Factor | Floor Standing |
| Product Color | Black |
| Product Material | Cold-rolled Steel (CRS) |
| Static/Stationary Weight Capacity | 1200 lb (544310.84 g) |
| Height | 35.55" (902.97 mm) |
| Width | 23.62" (599.95 mm) |
| Depth | 41.30" (1049.02 mm) |
| Rack Height | 18U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 41.30" (1049.02 mm) |
| Weight (Approximate) | 59.30 lb (26898.03 g) |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
[/custom-user-manual]
