Rocstor SolidRack 2U Low Profile Vertical Mount Enclosure Cabinet - For Networking, Equipment Rack, Patch Panel, LAN Switch - 2U Rack (Y10E068-B1)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- SolidRack 2U Low Profile Vertical Mount Enclosure Cabinet
- 12 x M6 Screws
- 12 x M6 Cup Washers
- 12 x 12-24 Screws
- 2 x Keys
- Owner's Manual
Rack Type: Enclosed Cabinet
Application/Usage: Networking,Equipment Rack,Patch Panel,LAN Switch
Ventilation: Yes
Features: Heavy Duty,Powder Coated,Front Door,Damage Resistant,Vented,Lockable Front Door,Reversible Front Door,Tamper Resistant,Removable Cover
Form Factor: Wall Mountable
Color Family: Black
Product Color: Black
Product Material: Steel
Static/Stationary Weight Capacity: 150 lb (68038.86 g)
Height: 28.80" (731.52 mm)
Width: 25.60" (650.24 mm)
Depth: 4.50" (114.30 mm)
Rack Height: 2U
Rack Width: 19" (482.60 mm)
Weight (Approximate): 51.40 lb (23314.65 g)
Package Contents:
Assembly Required: No
Limited Warranty: 5 Year
- Saves valuable workspace by housing EIA-standard 19-inch rack equipment in a 2U vertical-mount cabinet.
- Low-profile design extends less than 5 inches from the wall, accommodating equipment up to 20 inches deep.

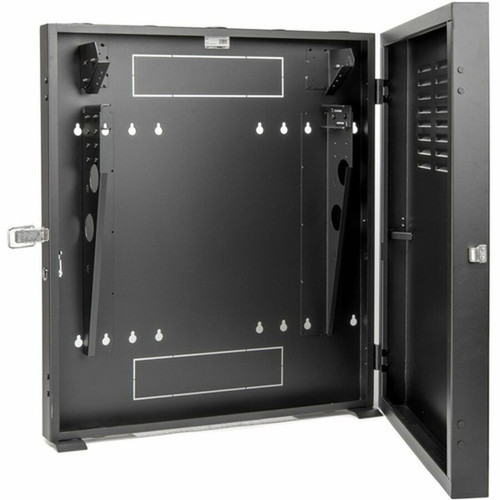

- Includes a slide-out 1U mounting bracket for patch panels up to 2.5 inches deep.
- Maximum load capacity of 150 lbs (68 kg).

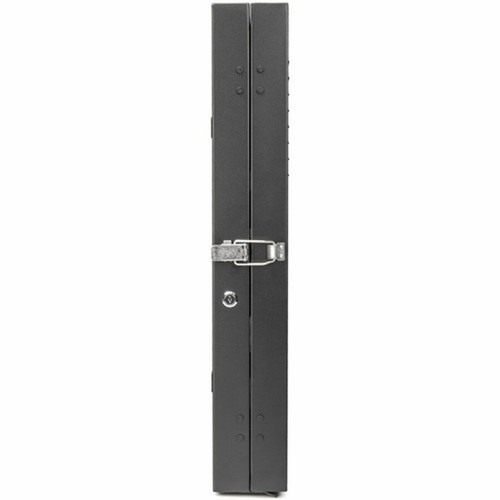

- Secure locking, reversible front door prevents unauthorized access and tampering.

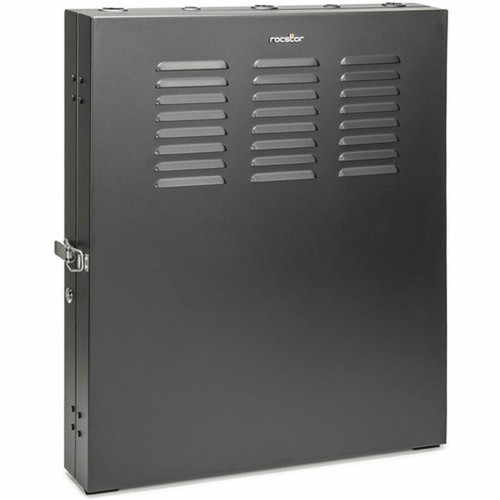

- Vented design ensures proper airflow to keep equipment cool.
- Convenient top and bottom ports with removable covers for easy cable routing.
- Ships fully assembled with wall-mounting holes spaced 16 inches apart for standard wall stud placement.
- Threaded mounting holes support M6 or 12-24 hardware, with clearly marked rack spaces for easy installation.
- Warranty: Rocstor 5-year limited warranty.
[custom-specifications]
| Specifications | |
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10E068-B1 |
| Manufacturer Website Address | http://www.rocstor.com |
| Brand Name | Rocstor |
| Product Line | SolidRack |
| Product Name | SolidRack 2U Low Profile Vertical Mount Enclosure Cabinet |
| Product Type | Rack Cabinet |
| Technical Information | |
| Rack Type | Enclosed Cabinet |
| Application/Usage | Networking,Equipment Rack,Patch Panel,LAN Switch |
| Ventilation | Yes |
| Features | Heavy Duty,Powder Coated,Front Door,Damage Resistant,Vented,Lockable Front Door,Reversible Front Door,Tamper Resistant,Removable Cover |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Static/Stationary Weight Capacity | 150 lb (68038.86 g) |
| Height | 28.80" (731.52 mm) |
| Width | 25.60" (650.24 mm) |
| Depth | 4.50" (114.30 mm) |
| Rack Height | 2U |
| Rack Width | 19" (482.60 mm) |
| Weight (Approximate) | 51.40 lb (23314.65 g) |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
