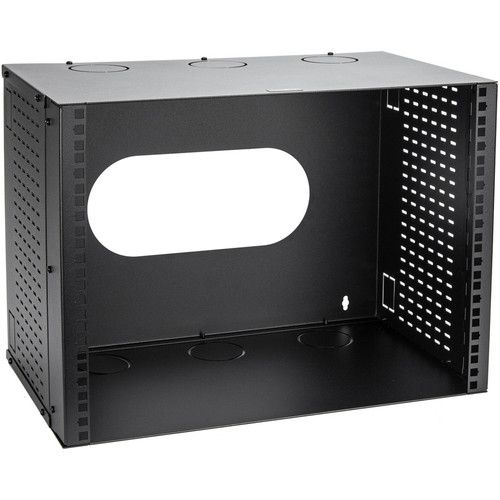

Rocstor SolidRack Wall-Mount Bracket for Shallow Rack-Mount Equipment - Solid Steel - 8U - For Switch, Patch Panel, Server, Network - (Y10E027-B1)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 1 x Wall-Mount Bracket
- 1 x M6 K-Nut
- 6 x Wood Screws
- 24 x M5 Screws
- 24 x M5 Cage Nuts
- 1 x User Manual
Application/Usage: Switch,Patch Panel,Server,Network Equipment,UPS
Features: Heavy Duty
Rack Post Quantity: 2
Form Factor: Wall Mountable
Color Family: Black
Product Color: Black
Product Material: Cold-rolled Steel (CRS)
Maximum Weight Capacity: 44 lb (19958.06 g)
Static/Stationary Weight Capacity: 44 lb (19958.06 g)
Height: 14.30" (363.22 mm)
Width: 20.08" (510.03 mm)
Depth: 11.81" (299.97 mm)
Rack Height: 8U
Rack Width: 19" (482.60 mm)
Rack Depth: 11.81" (299.97 mm)
Weight (Approximate): 17.64 lb (8001.37 g)
Package Contents:
Assembly Required: No
Country of Origin: China
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- Rack Mount Bracket allows you to effectively utilize most of the space available with maximum dependability
- Comes in black color for a sophisticated and dazzling loo
- Built with cold-rolled steel (crs) for added firmness and maximum reliability
- Wall mountable rack mount bracket is Ideal for permanent placement with added space efficiency
- Switch application, usage for easy accessibility with items, valuables, equipment organizational, storage, placement convenience
- Heavy Duty feature for better items, valuables, equipment organizational, storage, placement reliance
[custom-specifications]
| Specifications | |
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10E027-B1 |
| Manufacturer Website Address | http://www.rocstor.com |
| Brand Name | Rocstor |
| Product Line | SolidRack |
| Product Name | SolidRack Wall-Mount Bracket for Shallow Rack-Mount Equipment - Solid Steel - 8U |
| Product Type | Rack Mount Bracket |
| Technical Information | |
| Application/Usage | Switch,Patch Panel,Server,Network Equipment,UPS |
| Features | Heavy Duty |
| Rack Post Quantity | 2 |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Cold-rolled Steel (CRS) |
| Maximum Weight Capacity | 44 lb (19958.06 g) |
| Static/Stationary Weight Capacity | 44 lb (19958.06 g) |
| Height | 14.30" (363.22 mm) |
| Width | 20.08" (510.03 mm) |
| Depth | 11.81" (299.97 mm) |
| Rack Height | 8U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 11.81" (299.97 mm) |
| Weight (Approximate) | 17.64 lb (8001.37 g) |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | China |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
[/custom-user-manual]
