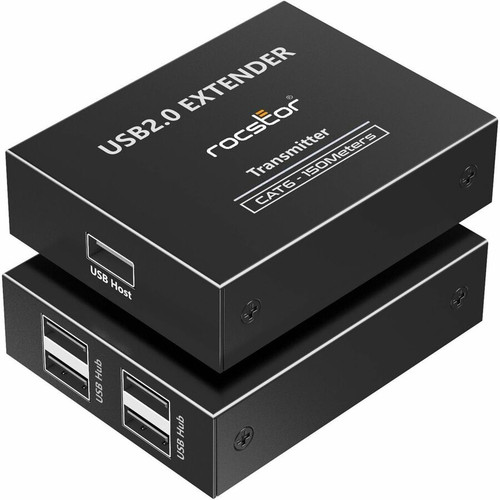

Rocstor Y10G004-B1 TrueReach 4-Port USB 2. 0 Extender - up to 492ft (150m) Range - 5 USB Ports - 2 RJ-45 - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This USB extender operates at USB 2.0 specifications, delivering a maximum data transfer rate of 60 MB/s across extended distances. The system utilizes two RJ-45 Ethernet ports to establish the link between the local transmitter and remote receiver units, leveraging existing network cabling infrastructure for cost-effective installation. The 5V input voltage ensures low power consumption and compatibility with standard USB power sources.
The extender supports plug-and-play operation across multiple operating systems including Windows, Mac, and Linux, requiring no additional drivers for basic functionality. Its compact dimensions—2.99" length × 2.36" width × 0.83" height—make it suitable for space-constrained installations. The transmitter weighs approximately 4.34 ounces (123 grams) while the receiver weighs 4.52 ounces (128 grams), contributing to a lightweight overall footprint.
This section brings together practical product details such as Maximum Extended Range, Maximum Data Transfer Rate, Network (RJ-45), Number of Network (RJ-45) Ports, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Rocstor TrueReach extender addresses common distance limitations in USB connectivity with several distinct advantages. Its extended 492-foot range surpasses typical USB cable limitations, enabling flexible peripheral placement in large rooms, between floors, or across separate buildings. The use of standard Ethernet cabling reduces deployment costs compared to specialized USB extension solutions, while maintaining reliable data integrity across the extended connection.
Simplified Installation

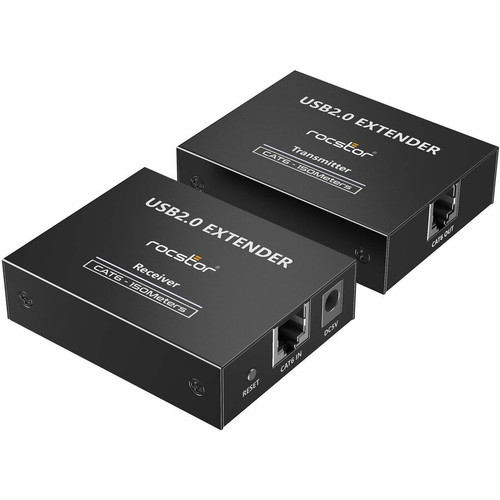

The included transmitter and receiver units connect via standard Ethernet cables, eliminating complex configuration. The universal power adapter supports worldwide voltage standards.
- Transmitter and receiver included
- Uses Cat5/6/6a cables
- No external power typically needed
Broad Compatibility
Works with virtually any USB 2.0 peripheral including printers, scanners, cameras, and storage devices across Windows, macOS, and Linux systems without driver installation.
- USB 2.0 devices
- Multiple OS support
- Plug-and-play operation
Deployment / Use Cases
This USB extender is ideal for environments where computers and peripherals must be separated by substantial distances. In office settings, it enables centralized computer placement while maintaining access to shared printers, scanners, or security dongles in remote departments. Educational institutions can use it to connect classroom computers to peripherals in media labs or administrative offices without running dedicated USB cabling through walls.
Industrial and commercial applications benefit from the extender's ability to connect monitoring equipment, barcode scanners, or point-of-sale devices across warehouse floors or retail spaces. IT professionals can utilize it for temporary testing setups or permanent installations where USB device relocation would otherwise require expensive infrastructure changes. The compact design and minimal power requirements make it suitable for embedded applications in kiosks, digital signage, or control systems.
Office & Enterprise
Extend USB connectivity between floors or buildings for shared peripherals, security devices, and specialized hardware without compromising performance.
- Multi-floor office buildings
- Shared department printers
- Security dongle access
Industrial & Retail
Connect point-of-sale systems, inventory scanners, or monitoring equipment across large retail spaces, warehouses, or manufacturing facilities using existing network infrastructure.
- Warehouse barcode scanners
- POS peripherals
- Equipment monitoring
Physical Profile
The TrueReach extender features a compact steel enclosure measuring 2.99" in length, 2.36" in width, and 0.83" in height. This slim profile allows for discreet placement on desks, behind monitors, or mounted in equipment racks. The black finish provides a professional appearance that blends with most office or industrial environments. Despite its durable steel construction, the transmitter and receiver units remain lightweight at approximately 4.34 and 4.52 ounces respectively, minimizing stress on mounting surfaces or cables.
- Width
- 2.36" (60 mm)
- Height
- 0.83" (21 mm)
- Weight
- 4.34 oz (123 g)
- Length
- 2.99" (76 mm)
What's in the Box
The package includes all components needed for immediate deployment of the USB extension system.
Highlights
- Extends USB connectivity up to 492 feet (150 meters) using Cat5, Cat6, or Cat6a Ethernet cable
- Supports connection of up to four USB 2.0 devices simultaneously at extended distances
- Provides maximum data transfer rate of 60 MB/s for efficient peripheral operation
- Features 5 USB ports and 2 RJ-45 network ports for flexible connectivity options
- Bus-powered design typically eliminates need for external power source
- Compact steel construction with black finish measures just 2.99"L × 2.36"W × 0.83"H
- Operating system independent—compatible with Windows, Mac, and Linux systems
- Includes both transmitter and receiver units for complete extension solution
- Certified with CE and FCC standards for regulatory compliance
- Backed by 2-year limited warranty for reliable long-term performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10G004-B1 |
| Brand Name | Rocstor |
| Product Line | TrueReach |
| Product Name | TrueReach 4 Port USB 2.0 Extender - up to 492ft (150m) |
| Packaged Quantity | 1 |
| Product Type | USB Extender |
| Technical Information | |
| Maximum Extended Range | 492 ft (149961.60 mm) |
| Maximum Data Transfer Rate | 60 MB/s |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| USB | Yes |
| Number of USB Ports | 5 |
| Power Description | |
| Input Voltage | 5 V |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Height | 0.83" (21 mm) |
| Width | 2.36" (60 mm) |
| Length | 2.99" (76 mm) |
| Transmitter Weight (Approximate) | 4.34 oz (123 g) |
| Receiver Weight (Approximate) | 4.52 oz (128 g) |
| Miscellaneous | |
| Package Contents | 1 x USB 2.0 Local Extender 1 x USB 2.0 Remote Extender 1 x 0.5m (1.5ft) Mini-USB to USB 2.0 A Cable 1 x Universal Power Adapter 1 x Instruction Manual |
| Certifications & Standards | CE FCC |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum distance this USB extender can cover?
The Rocstor TrueReach USB 2.0 Extender can extend USB connectivity up to 492 feet (150 meters) when using appropriate Cat5, Cat6, or Cat6a Ethernet cabling. This substantial range allows peripheral placement far beyond typical USB cable limitations, making it suitable for large office spaces, industrial environments, or multi-building installations.
How many USB devices can I connect with this extender?
This extender supports connection of up to four USB 2.0 devices simultaneously through its five available USB ports. The system maintains reliable data transfer across all connected peripherals at extended distances, enabling flexible workspace configurations where multiple devices need to operate remotely from the host computer.
What type of cable do I need to connect the transmitter and receiver?
The extender uses standard Ethernet cables (Cat5, Cat6, or Cat6a) to connect the transmitter and receiver units. These commonly available network cables provide the physical link for USB signal extension up to 492 feet, eliminating the need for specialized USB extension cabling and leveraging existing network infrastructure.
Is external power required for this USB extender?
The extender features a bus-powered design that typically draws power directly from the USB connection, eliminating the need for an external power source in most applications. The package includes a universal power adapter for situations where additional power is required, providing flexibility for various deployment scenarios.
What certifications does this product carry?
The Rocstor TrueReach USB Extender is certified with CE and FCC standards, ensuring compliance with European and North American regulatory requirements. The product also meets environmental standards including WEEE (Waste Electrical and Electronic Equipment Directive) and RoHS (Restriction of Hazardous Substances) compliance.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
What input or connectivity options are listed?
Connectivity options include 5 V, helping the product integrate into common office or home setups.
Does the display support VESA mounting or adjustment features?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
