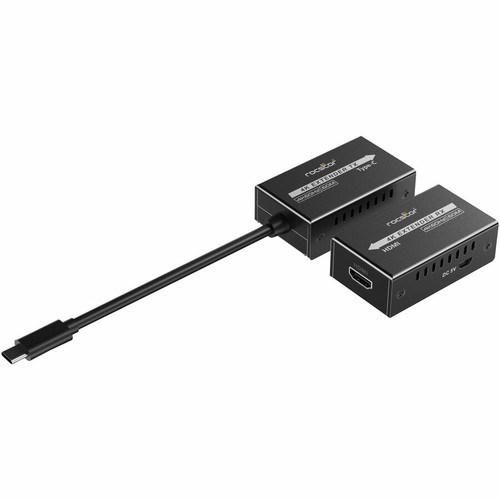

Rocstor Y10G007-B2 TrueReach Video Extender Transmitter/Receiver - 4K HDR10197 ft Range - 2x RJ-45 - 2x USB - HDMI Out
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The TrueReach extender maintains signal integrity across extended distances with support for 4K@60Hz at the full 197-foot range and 4K@120Hz at distances up to 82 feet. EDID passthrough ensures automatic resolution adjustment between source and display devices, while backward compatibility guarantees operation with existing 1080i and 1080p equipment.
Connectivity includes two RJ-45 network ports for flexible cabling options, two USB ports for peripheral extension, and one HDMI output for display connection. The system supports Category 6, 6a, and 7 twisted-pair cable standards, providing installation flexibility with commonly available infrastructure.
Relevant factors for this section include Connectivity Technology, Maximum Operating Distance, Graphics Modes, Supported Video Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TrueReach extender combines professional performance with practical installation benefits. HDR10 compatibility ensures content appears with optimal contrast and color representation, while the compact form factor and plug-and-play operation reduce setup time and technical overhead.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Zero-Latency Performance, Extended Distance Capability.
Zero-Latency Performance
Maintains real-time video synchronization without perceptible delay, critical for interactive applications and live presentations where timing accuracy matters.
Extended Distance Capability
Transmits 4K signals up to 197 feet using standard Ethernet cable, eliminating the distance limitations of conventional HDMI cables while reducing installation complexity and cost.
Deployment / Use Cases
The TrueReach extender serves professional AV applications where reliable video extension over distance is essential. Control room installations benefit from the zero-latency transmission for monitoring applications, while education environments appreciate the simplified setup and compatibility with existing display equipment.
The system's support for standard twisted-pair cable makes it ideal for retrofitting existing spaces where running new HDMI cables would be impractical or cost-prohibitive, while the compact design ensures minimal visual impact in finished environments.
Conference Room AV Systems
Extend laptop or desktop video signals to wall-mounted displays or projectors across medium to large meeting spaces while maintaining presentation quality and responsiveness.
- Supports 4K resolution for detailed presentations and video conferences
- Zero-latency ensures smooth cursor movement and video playback
- USB extension allows wireless presenter controls and document cameras
Digital Signage Installations
Distribute high-resolution content from centralized media players to multiple displays throughout retail, hospitality, or corporate environments using existing network infrastructure.
- 197-foot range accommodates large facilities and multi-room deployments
- HDR10 compatibility ensures vibrant marketing content
- Compact receivers mount discreetly behind displays
What's in the Box
The TrueReach Video Extender Transmitter/Receiver ships complete with all necessary components for immediate deployment.
Package contents include 1x Transmitter, 1x Receiver, 1x Micro USB cable, 1x User manual. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Extends 4K video up to 197 feet over Cat6/6a/7 cable
- Zero-latency transmission ensures seamless performance
- Supports 4K@120Hz resolution with HDR10 compatibility
- EDID passthrough for automatic resolution adjustment
- Two RJ-45 ports and two USB ports for flexible connectivity
- USB-C input with power delivery from source device
- Compact, plug-and-play design simplifies installation
- Backward compatible with 1080i and 1080p equipment
- Includes transmitter, receiver, micro USB cable, and manual
- 2-year limited warranty with lifetime technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10G007-B2 |
| Brand Name | Rocstor |
| Product Line | TrueReach |
| Product Name | TrueReach Video Extender Transmitter/Receiver |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 196.85 ft (60000 mm) |
| Video | |
| Graphics Modes | 4K |
| Supported Video Modes | 1080i,1080p |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 2 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Twisted Pair Cable Standard | Category 6,Category 6a,Category 7 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Transmitter Height | 0.59" (15 mm) |
| Transmitter Width | 1.02" (26 mm) |
| Transmitter Depth | 2.81" (71.50 mm) |
| Receiver Height | 0.91" (23 mm) |
| Receiver Width | 1.57" (40 mm) |
| Receiver Depth | 2.64" (67 mm) |
| Transmitter Weight (Approximate) | 3 oz (85 g) |
| Receiver Weight (Approximate) | 2.54 oz (72 g) |
| Miscellaneous | |
| Package Contents | 1x Transmitter 1x Receiver 1x Micro USB cable 1x User manual |
| Application/Usage | Computer,Display |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum distance this video extender can transmit 4K signals?
The Rocstor TrueReach extender transmits 4K@60Hz video up to 196.85 feet (60 meters) using Category 6, 6a, or 7 twisted-pair Ethernet cable. For 4K@120Hz signals, the maximum distance is 82 feet (25 meters). These extended ranges eliminate the limitations of standard HDMI cables while maintaining zero-latency performance.
Does this extender support HDR content?
Yes, the TrueReach extender supports HDR10, which enhances dynamic range and color depth for more vibrant and realistic visuals. This ensures compatible HDR content from sources like gaming consoles, media players, and computers appears with optimal contrast and color representation on connected displays.
What types of cables are compatible with this video extender?
The extender works with standard Category 6, Category 6a, or Category 7 twisted-pair Ethernet cables. These commonly available cable types provide installation flexibility and cost-effectiveness compared to specialized AV cabling. The system does not require proprietary cables, making it easy to integrate with existing infrastructure.
How many devices can I connect to this extender system?
The transmitter includes USB-C input for the video source, while the receiver provides two RJ-45 network ports, two USB ports, and one HDMI output. This configuration supports extending video from one source device while providing connectivity for network connections and USB peripherals like keyboards, mice, or storage devices at the display location.
Is this extender compatible with older 1080p equipment?
Yes, the TrueReach extender is backward compatible with 1080i and 1080p video sources and displays. The EDID passthrough feature automatically negotiates the optimal resolution between connected devices, ensuring seamless operation with both legacy and current-generation equipment without manual configuration.
What warranty coverage does Rocstor provide for this product?
Rocstor backs the TrueReach Video Extender Transmitter/Receiver with a 2-year limited warranty against defects in materials and workmanship. Additionally, the product includes lifetime technical support, providing ongoing assistance with installation, configuration, and troubleshooting throughout the product's usable life.
