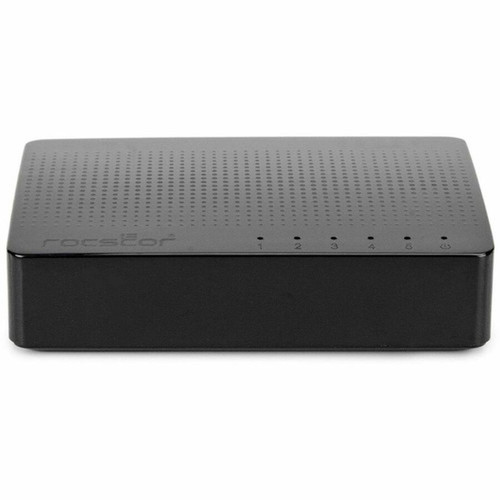

Rocstor Y10S001-B1 JetConnect JC5 5-Port Gigabit Desktop/Wallmount Unmanaged Switch - Layer 2 - Fanless - 10/100/1000Base-T
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch provides five 10/100/1000Base-T RJ-45 ports, each capable of Gigabit Ethernet performance with a maximum data transfer rate of 125 MB/s. It supports standard twisted-pair cabling for distances up to 100 meters, ensuring compatibility with existing network infrastructure. The switch is compliant with IEEE 802.3, 802.3u, and 802.3ab standards, guaranteeing interoperability with a wide range of network devices.
As an unmanaged switch, it requires no configuration or ongoing management, making it ideal for users who need a simple, reliable solution. The internal architecture is optimized for low latency and efficient packet switching, supporting features like store-and-forward switching and full-duplex operation on all ports to maximize network throughput.
Relevant factors for this section include Features, Total Number of Network Ports, Network (RJ-45), Modular. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The JetConnect JC5 combines simplicity with robust performance, offering a cost-effective way to expand wired networks without complexity. Its fanless operation ensures silent performance in quiet environments, while the compact, wall-mountable design saves valuable desk space.
Zero-Configuration Networking
As an unmanaged switch, it works immediately out of the box. Simply connect your devices—no software, setup, or IT expertise required.
- Auto-negotiation for speed/duplex
- Auto-MDI/MDIX for cable type
- No management interface needed
Reliable Gigabit Speeds
Delivers full Gigabit bandwidth to every connected device, supporting high-speed data transfers for file sharing, backups, and media streaming.
- 10/100/1000Base-T auto-sensing
- 125 MB/s maximum transfer rate
- Low latency for responsive networking
Deployment / Use Cases
This switch is ideal for scenarios where additional wired ports are needed quickly and affordably. It serves as a central hub for connecting multiple devices in a localized area, such as a home office setup with a desktop PC, laptop, network printer, and network-attached storage (NAS) device.
Small business environments can use it to expand network capacity in conference rooms, reception areas, or retail counters. Its wall-mount capability allows for discreet installation under desks, on walls, or in network cabinets, keeping workspaces tidy and cables organized.
Home Office Network Hub
Connect your computer, printer, smart TV, and gaming console to a single Internet connection with reliable Gigabit speeds for all devices.
Small Business Expansion
Add extra ports to a router in a small office, supporting additional workstations, VoIP phones, or security cameras without upgrading core infrastructure.
Physical Profile

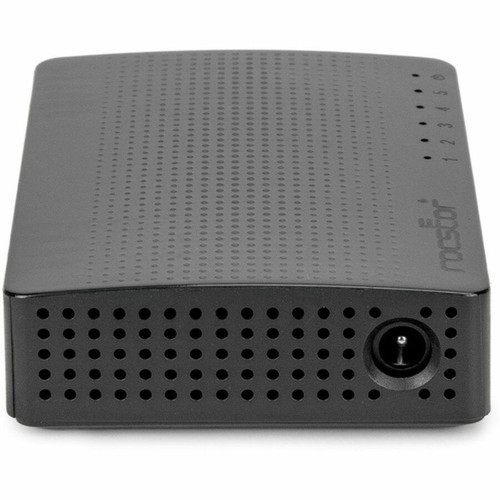

The switch features a compact black plastic chassis measuring 5.40" (137.16 mm) in length, 3.66" (92.96 mm) in width, and 0.88" (22.35 mm) in height, with a depth of 2.66" (67.56 mm). This slim profile allows it to fit easily on desktops, shelves, or mounted vertically on a wall using the included keyhole slots. The lightweight design and durable plastic construction ensure portability and longevity in everyday use.
- Width
- 3.66" (92.96 mm)
- Depth
- 2.66" (67.56 mm)
- Height
- 0.88" (22.35 mm)
- Length
- 5.40" (137.16 mm)
What's in the Box
The package includes everything needed for immediate setup and operation.
Highlights
- 5 Gigabit Ethernet ports for connecting PCs, printers, and other network devices
- Unmanaged operation for plug-and-play setup with no configuration required
- Fanless, energy-efficient design with only 2W power consumption
- Supports 10/100/1000Base-T auto-negotiation on all ports
- Layer 2 switching with IGMP snooping, port mirroring, and spanning tree
- Compact desktop or wall-mountable form factor for flexible placement
- Compliant with IEEE 802.3, 802.3u, and 802.3ab networking standards
- Includes power adapter and user guide for immediate use
- 5-year limited warranty for long-term reliability
- TAA compliant and environmentally friendly
Specifications
| Specifications | |
|---|---|
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10S001-B1 |
| Brand Name | Rocstor |
| Product Line | JetConnect |
| Product Model | JC5 |
| Product Name | JetConnect JC5 5-Port Gigabit Desktop / Wallmount Unmanaged Network Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless,Energy Efficient |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Modular | No |
| Port/Expansion Slot Details | 5 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Maximum Data Transfer Rate | 125 MB/s |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 2 W |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Plastic |
| Form Factor | Desktop,Wall Mountable |
| Height | 0.88" (22.35 mm) |
| Width | 3.66" (92.96 mm) |
| Depth | 2.66" (67.56 mm) |
| Length | 5.40" (137.16 mm) |
| Miscellaneous | |
| Package Contents | JetConnect JC5 5-Port Gigabit Desktop / Wallmount Unmanaged Network Switch Power Adapter User Guide |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
How many devices can I connect to this switch?
The Rocstor JetConnect JC5 has five Gigabit Ethernet ports, allowing you to connect up to five wired devices such as computers, printers, NAS units, or gaming consoles. It serves as a network hub to expand the number of available ports from your existing router or modem.
Does this switch support Power over Ethernet (PoE)?
No, this is a standard unmanaged Gigabit switch and does not provide Power over Ethernet. It requires an external power adapter for operation and does not deliver power to connected devices over the Ethernet cables.
What is the difference between a managed and unmanaged switch?
An unmanaged switch, like the JetConnect JC5, works automatically out of the box with no configuration needed—ideal for simple network expansion. Managed switches offer advanced features like VLANs, QoS, and SNMP for network control, but require setup and are typically used in larger, more complex environments.
Can I mount this switch on a wall?
Yes, the switch is designed for both desktop use and wall mounting. It includes keyhole slots on the bottom of the chassis, allowing you to securely mount it vertically on a wall to save desk space and keep cables organized.
What type of cables does this switch support?
It supports standard twisted-pair Ethernet cables (Cat5e, Cat6, or higher) with RJ-45 connectors. The switch auto-negotiates speed and duplex settings, and includes auto-MDI/MDIX, so you can use either straight-through or crossover cables without manual configuration.
What is the warranty period for this switch?
Rocstor provides a 5-year limited warranty for the JetConnect JC5 switch, covering defects in materials and workmanship under normal use. This warranty offers long-term assurance for reliability in home, office, or small business deployments.
