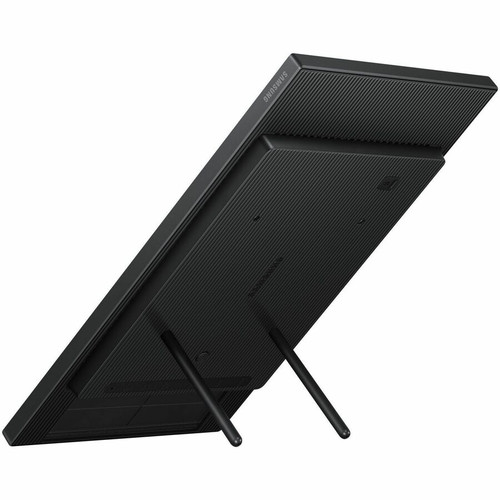

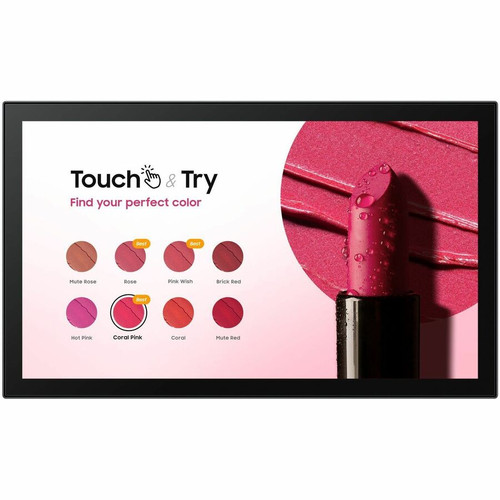

Samsung 13" Small Touch Signage QBC-T - 13" (330.20 mm) LCD - Advanced Super Dimension Switch ( ADS ) - Touchscreen - 16 Hours/ 7 Days (LH13QBCTBGBXZA)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Panel Technology: Advanced Super Dimension Switch ( ADS )
Operation Hours: 16 Hours/ 7 Days
Number of Screens: 1
Viewable Screen Size: 13" (330.20 mm)
Screen Size Class: 13" (330.20 mm)
Display Screen Type: LCD
Multi-touch Screen: Yes
Response Time: 30 ms
Touchscreen: Yes
Display Resolution: 1920 x 1080
Scan Format: 1080p
Native Contrast Ratio: 600:1
Dynamic Contrast Ratio: 10,000:1
Brightness: 500 cd/m²
Color Gamut: 45%
Ethernet: Yes
Wireless LAN: Yes
Bluetooth: Yes
USB: Yes
HDMI: Yes
DisplayPort: No
Serial: Yes
Number of HDMI Inputs: 1
RS-232C Input: Yes
Operating System: Tizen 7.0
Input Voltage: 120 V AC,230 V AC
Bezel Color: Black
VESA Mount Standard: 100 x 100
Height: 7.62" (193.50 mm)
Width: 12.68" (322 mm)

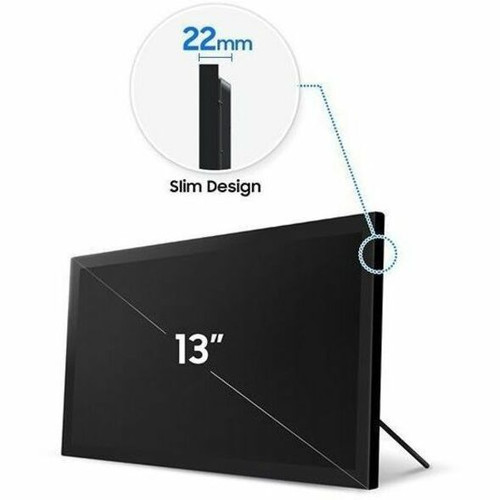

Depth: 0.87" (22 mm)
Weight (Approximate): 2.43 lb (1100 g)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 80%
Application/Usage: Business,Wayfinding,High Traffic Area
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)
Energy Efficiency Certification: ENERGY STAR 8.0
- Digital Signage Display - Ideal for rack, passageway, booth or display counter
- Experience luminescent visual images with LCD display
- Features full 1920 x 1080 HD resolution enabling sharp and clear images
- Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
[custom-specifications]
| Specifications | |
| Manufacturer | Samsung |
| Manufacturer Part Number | LH13QBCTBGBXZA |
| Manufacturer Website Address | http://www.samsung.com |
| Brand Name | Samsung |
| Product Series | QBC-T |
| Product Model | QB13C-T |
| Product Name | 13" Small Touch Signage QBC-T |
| Product Type | Digital Signage Display |
| Technical Information | |
| Panel Technology | Advanced Super Dimension Switch ( ADS ) |
| Operation Hours | 16 Hours/ 7 Days |
| Display & Graphics | |
| Number of Screens | 1 |
| Viewable Screen Size | 13" (330.20 mm) |
| Screen Size Class | 13" (330.20 mm) |
| Display Screen Type | LCD |
| Multi-touch Screen | Yes |
| Response Time | 30 ms |
| Touchscreen | Yes |
| Display Resolution | 1920 x 1080 |
| Video | |
| Scan Format | 1080p |
| Native Contrast Ratio | 600:1 |
| Dynamic Contrast Ratio | 10,000:1 |
| Brightness | 500 cd/m² |
| Color Gamut | 45% |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | No |
| Serial | Yes |
| Number of HDMI Inputs | 1 |
| RS-232C Input | Yes |
| Software | |
| Operating System | Tizen 7.0 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Bezel Color | Black |
| VESA Mount Standard | 100 x 100 |
| Height | 7.62" (193.50 mm) |
| Width | 12.68" (322 mm) |
| Depth | 0.87" (22 mm) |
| Weight (Approximate) | 2.43 lb (1100 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Miscellaneous | |
| Application/Usage | Business,Wayfinding,High Traffic Area |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver) |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
[/custom-user-manual]
