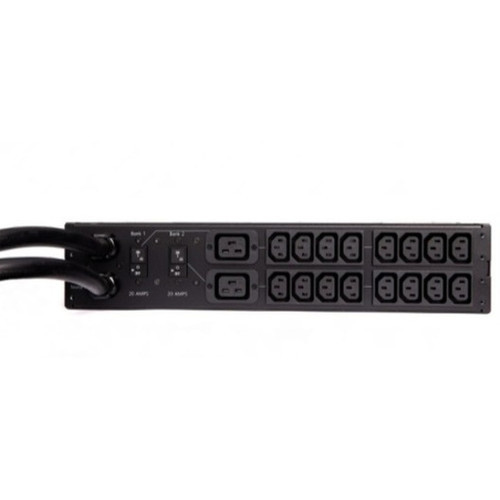

APC by Schneider Electric AP4432 ATS 18-Outlet Automatic Transfer Switch - 230V AC 30A - 16x C13 - 2x C19 - Rack-Mountable 2U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This automatic transfer switch features a NEMA L6-30P input connector and delivers power through 18 strategically arranged outlets. The 2U rack-mount design optimizes space utilization in standard 19-inch racks while maintaining accessibility for cable management.
The switch includes RS-232 configuration capabilities for remote management and monitoring. Compliance with EN 55022 Class A, FCC Part 15 Class A, PSE, TUV-C, and TUV-NURTL standards ensures reliable operation in commercial environments.
Relevant factors for this section include Plug/Connector Type, Receptacles, Input Voltage, Output Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The AP4432 delivers automatic power source switching to prevent downtime during primary power failures. Its high-density outlet configuration maximizes power distribution in limited rack space while maintaining proper airflow and accessibility.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Reliable Power Transfer, Space-Efficient Design.
Reliable Power Transfer
Automatically switches between power sources to maintain continuous operation of connected equipment without manual intervention.
- Prevents downtime during power source failures
- Maintains equipment operation during maintenance windows
Space-Efficient Design
The 2U form factor provides 18 outlets in minimal rack space, optimizing data center density while allowing proper cable management.
- Fits standard 19-inch racks
- Leaves room for airflow and service access
Deployment / Use Cases
This automatic transfer switch is ideal for environments requiring power redundancy and high-density distribution. Data centers can deploy it in server racks to provide automatic failover between utility power and generator sources.
Network operations centers benefit from its ability to maintain connectivity for switches, routers, and firewalls during power transitions. Colocation facilities use these switches to offer redundant power circuits to tenant equipment while maximizing rack utilization.
Relevant factors for this section include Plug/Connector Type, Receptacles, Input Voltage, Output Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Data Center Redundancy
Deploy in server racks to automatically switch between primary and backup power sources, ensuring continuous operation of critical servers and storage systems.
Network Infrastructure
Power networking equipment with automatic transfer capability to maintain connectivity during power source changes or maintenance activities.
Physical Profile
The AP4432 features a compact 2U rack-mountable enclosure measuring 3.46" (88 mm) in height, 17.01" (432 mm) in width, and 9.29" (236 mm) in depth. The design includes integrated rack mounting brackets for secure installation in standard 19-inch racks. The 10.65 lb weight ensures manageable installation while the front-accessible outlets simplify cable connections and maintenance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2U, 17.01" (432 mm), 9.29" (236 mm), 10.65 lb (4830.76 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.01" (432 mm)
- Depth
- 9.29" (236 mm)
- Height
- 2U
- Weight
- 10.65 lb (4830.76 g)
What's in the Box
The package includes everything needed for immediate deployment of the automatic transfer switch in your rack environment.
Highlights
- 18-outlet automatic transfer switch with 16 C13 and 2 C19 receptacles
- 230V AC input with 200/208V AC output at 30A current capacity
- 2U rack-mountable form factor for space-efficient installation
- NEMA L6-30P input connector for secure power connection
- RS-232 configuration capability for remote management
- Compliant with EN 55022 Class A, FCC Part 15 Class A, and international standards
- Includes mounting hardware and rack brackets for immediate installation
- Manufactured in the Philippines with environmentally friendly processes
- Backed by a 2-year limited warranty from APC by Schneider Electric
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP4432 |
| Brand Name | Schneider Electric |
| Product Series | ATS |
| Product Name | ATS 18-Outlet Automatic Transfer Switch |
| Product Type | Automatic Transfer Switch |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacles | 16 x IEC 60320 C13,2 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 200 V AC,208 V AC |
| Current | 30 A |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.46" (88 mm) |
| Width | 17.01" (432 mm) |
| Depth | 9.29" (236 mm) |
| Weight (Approximate) | 10.65 lb (4830.76 g) |
| Miscellaneous | |
| Package Contents | ATS 18-Outlet Automatic Transfer Switch Mounting hardware Rack mounting brackets RS-232 configuration cable |
| Compatibility | EN 55022 Class A FCC Part 15 Class A PSE TUV-C TUV-NURTL |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What is the purpose of this automatic transfer switch?
The AP4432 automatic transfer switch provides automatic switching between two power sources to maintain continuous operation of connected equipment. When the primary power source fails or requires maintenance, the switch automatically transfers to the secondary source without interrupting power to your servers, networking gear, or other critical infrastructure.
How many devices can I connect to this switch?
This switch provides 18 outlets total: 16 IEC 60320 C13 outlets suitable for most servers, switches, and storage devices, plus 2 IEC 60320 C19 outlets designed for higher-power equipment. The 30A current rating supports multiple devices simultaneously while maintaining safe operating parameters.
What rack space does this switch require?
The AP4432 occupies 2U (3.46 inches or 88 mm) of vertical space in a standard 19-inch rack. The dimensions are 17.01" (432 mm) wide and 9.29" (236 mm) deep, making it compatible with most data center racks. The included mounting brackets and hardware facilitate secure installation.
What input power connection does this switch use?
This switch uses a NEMA L6-30P plug for input power connection. It accepts 230V AC input power and delivers 200/208V AC output to connected devices. The 30A current capacity ensures sufficient power for multiple high-demand devices in rack environments.
Can I manage this switch remotely?
Yes, the AP4432 includes RS-232 configuration capabilities for remote management and monitoring. This allows administrators to configure switch settings, monitor power status, and receive alerts without physical access to the data center rack. The included RS-232 cable facilitates connection to management systems.
What certifications does this switch carry?
The AP4432 is compliant with EN 55022 Class A for electromagnetic compatibility, FCC Part 15 Class A for radio frequency emissions, PSE (Product Safety Electrical), TUV-C, and TUV-NURTL standards. These certifications ensure reliable operation in commercial environments and compliance with international electrical safety requirements.
