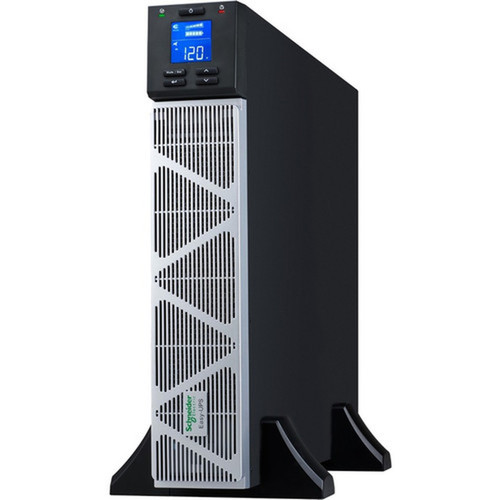

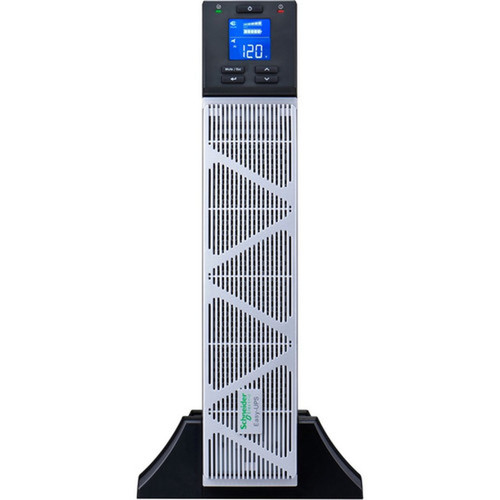

APC by Schneider Electric SRVSL2KRARK Easy UPS On-Line Li-Ion SRVSL RT 2000VA 120V Rackmount - 2U - 6 Outlets - 10. 38 Min Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This online UPS employs double-conversion technology, continuously converting incoming AC power to DC and back to clean AC, isolating connected loads from all power anomalies. It supports an input voltage range of 80-150V AC, with a 70 Hz input frequency and 60 Hz output frequency, ensuring compatibility with various power sources. The unit features a 0.9 output power factor and 220 J surge energy rating for effective protection against surges and spikes.
Management capabilities include an LCD display for real-time status monitoring and alarms for on-battery, low-battery, and overload conditions. Connectivity options comprise a serial port, USB port, and an EPO (Emergency Power Off) port for integration into broader management systems. The battery subsystem operates at 48V and provides 10.38 minutes of runtime at full load (1.80 kW) and 21 minutes at half load, offering sufficient time for graceful shutdowns or transition to alternate power.
Key Product Advantages
The SRVSL RT series combines high-efficiency lithium-ion batteries with robust online topology to deliver dependable power continuity. Its 2U rack-mountable form factor maximizes rack space utilization while providing 2 kVA of protection capacity. The integrated rail kit and stabilization feet ensure secure mounting and vibration resistance in dynamic environments.
Long-Life Lithium-Ion Battery
Features a lithium-ion battery with a 10-year typical lifespan, reducing replacement frequency and total cost of ownership compared to traditional lead-acid batteries.
- 10-year battery life
- 2-hour recharge time
- 48V battery system
Comprehensive Power Protection
Provides full isolation from power issues including blackouts, brownouts, surges, and frequency variations through double-conversion online technology.
- Sine wave output
- 0.9 output power factor
- 220 J surge protection
Rack-Optimized Design
Engineered for seamless integration into standard server racks with included mounting hardware and a compact 2U height.
- 2U rack height
- Includes rail kit and brackets
- Black and silver finish
Deployment / Use Cases
This UPS is purpose-built for environments requiring guaranteed power quality and extended runtime in a rack-mounted configuration. Its 2 kVA capacity and 6 NEMA 5-20R outlets make it suitable for protecting servers, networking gear, storage systems, and industrial controllers in centralized IT racks.
Typical applications include building management systems, distribution centers, and automation systems where power disturbances could disrupt critical operations. The unit's environmental specifications support operation at elevations up to 9842.52 feet and storage in conditions from -4°F to 122°F, ensuring reliability in diverse facility types.
Data Center & Server Room Protection
Safeguards rack-mounted servers and network equipment from power interruptions, providing time for orderly shutdown or generator transfer.
Industrial Automation & Control
Ensures continuous operation of PLCs, HMIs, and sensors in manufacturing and distribution environments vulnerable to power fluctuations.
Physical Profile
The UPS features a compact footprint measuring 3.39" (86 mm) in height, 17" (431.80 mm) in width, and 20" (508 mm) in depth, occupying 2U of rack space. Its black and silver finish blends with standard rack equipment, while the approximate weight of 36.60 lb (16600 g) ensures stable mounting. The design includes stabilization feet for floor placement when not rack-mounted, and operates at a sound emission level of 50 dB(A) for quiet performance in office-adjacent spaces.
- Width
- 17" (431.80 mm)
- Depth
- 20" (508 mm)
- Height
- 3.39" (86 mm)
- Weight
- 50 dB(A)
What's in the Box
The package includes all necessary components for immediate deployment:
Highlights
- 2 kVA / 1.80 kW double-conversion online UPS for maximum power protection
- Lithium-ion battery with 10-year life and 2-hour recharge time
- 10.38-minute full-load runtime (21 minutes at half load)
- 2U rack-mountable design with included rail kit and mounting brackets
- 6 x NEMA 5-20R outlets for connecting multiple devices
- 120V AC input with 80-150V AC input voltage range
- Sine wave output at 120V/110V/115V AC with 0.9 power factor
- LCD display with alarms for on-battery, low-battery, and overload conditions
- Serial, USB, and EPO ports for management and integration
- 3-year limited warranty and RoHS/WEEE/REACH environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRVSL2KRARK |
| Brand Name | Schneider Electric |
| Product Line | Easy UPS On-Line |
| Product Series | SRVSL RT |
| Product Name | Easy UPS On-Line Li-Ion SRVSL RT 2000VA 120V, with Rail Kit |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 6 x NEMA 5-20R |
| Phase | Single Phase |
| Application/Usage | Building System,Distribution Center,Automation System |
| Power Description | |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 80 V AC - 150 V AC,55 V AC - 150 V AC |
| Output Voltage | 120 V AC,110 V AC,115 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 220 J |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Alarm | On Battery,Low Battery,Overload |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size | 48V |
| Backup/Run Time (Full Load) | 10.38 Minute |
| Backup/Run Time (Half Load) | 21 Minute |
| Battery Life | 10 Year |
| Typical Battery Recharge Time | 2 Hour |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49212.60 ft (15000000 mm) |
| Storage Temperature | -4°F (-20°C) - 122°F (50°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 50 dB(A) |
| Physical Characteristics | |
| Product Color | Black,Silver |
| Height | 3.39" (86 mm) |
| Width | 17" (431.80 mm) |
| Depth | 20" (508 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 36.60 lb (16600 g) |
| Miscellaneous | |
| Package Contents | Easy UPS On-Line Li-Ion SRVSL RT 2000VA 120V, with Rail Kit Basic UPS Signalling RS-232 Cable USB Cable Rack Mounting Brackets Rack Mounting Support Rails Stabilization Feet |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this UPS?
This APC by Schneider Electric UPS has a load capacity of 2 kVA (2000 VA) and 1.80 kW (1800 watts). This capacity determines how much equipment it can support during a power outage, making it suitable for protecting multiple servers, network switches, or industrial controllers in a rack environment.
How long will the UPS run on battery power?
At full load (1.80 kW), the UPS provides 10.38 minutes of runtime. At half load (0.90 kW), runtime extends to 21 minutes. These times allow for graceful shutdown of connected equipment or transition to an alternate power source like a generator during a blackout.
What type of battery does this UPS use?
This unit uses a lithium-ion (Li-Ion) battery system operating at 48V. Lithium-ion batteries typically offer a longer lifespan (10 years in this case) and faster recharge times (2 hours) compared to traditional lead-acid batteries, reducing maintenance and replacement frequency.
How many devices can I connect to this UPS?
The UPS features 6 NEMA 5-20R outlets, allowing you to connect up to six devices with standard NEMA 5-20P plugs. This outlet configuration is common for servers, networking equipment, and other rack-mounted devices requiring 120V power.
Is this UPS rack-mountable?
Yes, this is a 2U rack-mountable UPS designed for standard 19-inch server racks. The package includes a rail kit, mounting brackets, and support rails for secure installation. The unit measures 3.39" in height, occupying 2U of vertical rack space.
What management features does this UPS offer?
The UPS includes an LCD display for real-time status monitoring and alarms for on-battery, low-battery, and overload conditions. It provides serial and USB ports for connectivity to management software, plus an EPO (Emergency Power Off) port for integration with safety systems.
What power capacity is listed for this UPS?
The listed power specification is 2 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
