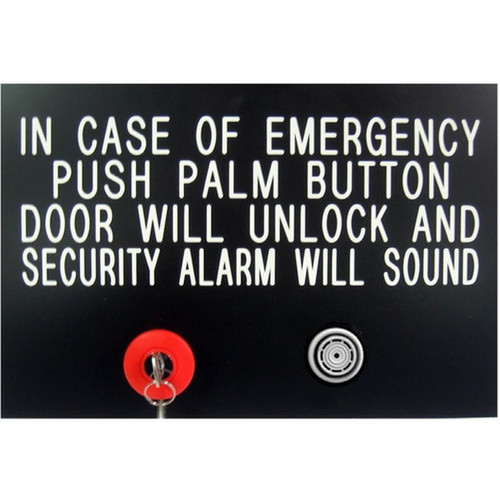

SDC APB1000A Emergency Access Panel - Elevator - Door Access - Emergency - 12V/28V DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The APB1000A operates on dual DC voltage inputs of 12V and 28V, offering flexibility for integration with various power systems commonly found in security installations. The panel incorporates a latching mushroom push button for secure activation, which utilizes screw terminal wire connections for reliable electrical bonding.
An integrated siren provides immediate audible notification upon activation, using quick-connect connection tabs for simplified installation. The panel's physical footprint measures 12" wide by 8" high by 3" deep, designed for surface mounting in accessible locations while maintaining a low-profile appearance.
This section brings together practical product details such as Application/Usage, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The APB1000A combines critical emergency access features with practical installation considerations for security professionals. Its design prioritizes both immediate functionality during emergencies and long-term reliability in demanding environments.
Clear Activation Interface
Features easy-to-read activation instructions and a prominent latching mushroom push button that provides tactile feedback and prevents accidental deactivation during emergency situations.
- Visual instruction labeling
- Tactile mushroom button
- Secure latching mechanism
Integrated Audible Alert
Includes a built-in siren that sounds immediately upon activation, providing audible notification throughout the secured area without requiring additional external alarm devices.
- Quick-connect siren tabs
- Immediate activation response
- Self-contained alert system
Simplified Installation
Designed with practical wiring connections including screw terminals for the push button and quick-connect tabs for the siren, reducing installation time and complexity for security technicians.
- Dual connection types
- Standard terminal blocks
- Minimal tools required
Deployment / Use Cases
The SDC APB1000A Emergency Access Panel serves critical roles in security systems where controlled access during emergencies is essential. Its specific voltage compatibility and activation features make it suitable for integration into comprehensive security infrastructures.
In elevator control applications, the panel provides emergency override capabilities for authorized personnel. For door access systems, it offers emergency exit or entry functions while maintaining security protocols. The dual voltage support allows deployment in facilities with either 12V or 28V security power systems, providing installation flexibility across different building infrastructures.
Elevator Emergency Access
Enables emergency override control for elevator systems, allowing authorized personnel to bypass normal operation during security incidents or emergency situations while maintaining audible notification.
Secure Door Entry Points
Provides emergency access functionality for controlled entryways, combining physical activation with audible alerts to balance security requirements with emergency access needs.
Physical Profile
The APB1000A features a compact rectangular enclosure measuring 12 inches wide by 8 inches high by 3 inches deep, designed for surface mounting in visible yet protected locations. The panel's dimensions accommodate standard wiring while maintaining a professional appearance suitable for commercial installations. The housing construction provides durability for long-term operation in various environmental conditions.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 8" (203.20 mm), 12" (304.80 mm), 3" (76.20 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 12" (304.80 mm)
- Depth
- 3" (76.20 mm)
- Height
- 8" (203.20 mm)
Highlights
- Latching mushroom push button for secure emergency activation
- Easy-to-read activation instructions for clear operation
- Integrated siren sounds immediately upon panel activation
- Key reset functionality for authorized deactivation
- Push button utilizes screw terminal wire connections
- Siren employs quick-connect connection tabs
- Dual voltage input (12V DC and 28V DC)
- Compact dimensions: 12"W × 8"H × 3"D
- 5-year limited warranty from Security Door Controls
- Manufactured in the United States
Specifications
| Specifications | |
|---|---|
| Manufacturer | Security Door Controls |
| Manufacturer Part Number | APB1000A |
| Brand Name | SDC |
| Product Model | APB1000A |
| Product Name | APB1000A Emergency Access Panel |
| Product Type | Door Access Control Panel |
| Technical Information | |
| Application/Usage | Elevator,Door Access,Emergency |
| Power Description | |
| Input Voltage | 12 V DC,28 V DC |
| Physical Characteristics | |
| Height | 8" (203.20 mm) |
| Width | 12" (304.80 mm) |
| Depth | 3" (76.20 mm) |
| Miscellaneous | |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What applications is the APB1000A Emergency Access Panel designed for?
The SDC APB1000A is specifically designed for elevator systems, door access control points, and emergency scenarios. It provides emergency override functionality for authorized personnel while maintaining security protocols and offering immediate audible notification through its integrated siren.
What voltage inputs does this emergency access panel support?
The APB1000A supports dual DC voltage inputs of 12V and 28V. This flexibility allows integration with various security power systems commonly found in commercial and institutional buildings, providing installation options for facilities with different electrical infrastructures.
How does the activation mechanism work on this panel?
The panel features a latching mushroom push button that provides secure activation during emergencies. This button utilizes screw terminal wire connections for reliable electrical bonding and includes easy-to-read activation instructions. Once activated, the button remains latched until reset with the provided key.
What type of alert does the panel provide when activated?
Upon activation, the APB1000A's integrated siren immediately sounds to provide audible notification throughout the secured area. The siren uses quick-connect connection tabs for simplified installation and operates independently without requiring additional external alarm devices.
What are the physical dimensions of this access panel?
The panel measures 12 inches in width, 8 inches in height, and 3 inches in depth (304.80 mm × 203.20 mm × 76.20 mm). These compact dimensions allow for surface mounting in accessible locations while accommodating standard wiring and maintaining a professional appearance suitable for commercial installations.
What warranty coverage does Security Door Controls provide for this product?
Security Door Controls provides a 5-year limited warranty for the APB1000A Emergency Access Panel. This warranty covers manufacturing defects and ensures long-term reliability for security installations in commercial and institutional environments.
