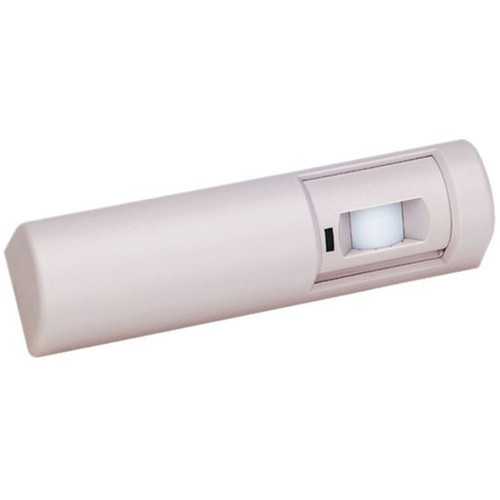

SDC MD-31DOW Motion Sensor - Infrared PIR - Off White - 24V DC - Wall/Ceiling Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This motion sensor utilizes passive infrared technology to detect heat signatures from moving objects. The PIR sensor ensures accurate motion detection without false triggers from stationary heat sources. The 24V DC input voltage provides consistent operation, compatible with standard security system power supplies.
The sensor projects a wrap-around U-pattern detection field, extending down and away from the door to inhibit tampering. This pattern design minimizes blind spots and enhances coverage reliability. Electrical connections are straightforward, supporting integration into existing security or access control setups.
This section brings together practical product details such as Wireless Technology, Passive Infrared Sensor (PIR), Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The MD-31DOW offers several advantages for security installations. Its adjustable coverage range adapts to different mounting heights, providing flexibility for various door configurations. The tamper-resistant U-pattern projection reduces vulnerability to bypass attempts, ensuring the sensor maintains its protective function.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Versatile Mounting, Reliable Detection.
Versatile Mounting
Install the sensor on frame headers, walls, or ceilings to suit your space requirements. This flexibility simplifies integration into both new and retrofit security projects.
- Frame Header Mount
- Wall Mount
- Ceiling Mount
Reliable Detection
Passive infrared technology ensures consistent motion detection across the specified coverage areas. The sensor responds quickly to movement, triggering connected security systems promptly.
Deployment / Use Cases
Deploy the SDC MD-31DOW motion sensor in commercial buildings, warehouses, or controlled access areas where door security is paramount. It functions effectively as a request-to-exit sensor, automating door release when authorized movement is detected, enhancing both security and convenience.
Common applications include integration with access control systems for automatic door operation, perimeter security monitoring, and occupancy detection in restricted zones. The sensor's off-white color and compact size make it suitable for environments where aesthetics and space constraints are considerations.
Access Control Integration
Connect the sensor to door controllers or security panels to enable automated entry and exit routines. This reduces manual intervention and improves traffic flow in high-use areas.
Perimeter Security
Use the sensor to monitor doorways or entry points for unauthorized access attempts. Its detection pattern helps cover approach angles, adding a layer of security to vulnerable openings.
Physical Profile
The motion sensor features a slim design with dimensions of 1.50" height, 6.25" width, and 1.50" depth, allowing it to fit discreetly in tight spaces. The off-white finish provides a neutral appearance that complements most interior color schemes. Mounting options include frame headers, walls, or ceilings, offering installation flexibility to match specific architectural layouts.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.50" (38.10 mm), 6.25" (158.75 mm), 1.50" (38.10 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.25" (158.75 mm)
- Depth
- 1.50" (38.10 mm)
- Height
- 1.50" (38.10 mm)
Highlights
- Infrared passive infrared sensor for accurate motion detection
- 24V DC power input for reliable operation
- Off-white color blends with interior decor
- Compact dimensions: 1.50" H x 6.25" W x 1.50" D
- Adjustable coverage from 5x6 ft to 10x12 ft
- Tamper-resistant U-pattern projection
- Mounts to frame header, wall, or ceiling
- Ideal for door security and access control
Specifications
| Specifications | |
|---|---|
| Manufacturer | Security Door Controls |
| Manufacturer Part Number | MD-31DOW |
| Brand Name | SDC |
| Product Model | MD-31DOW |
| Product Name | Motion Sensor |
| Product Type | Motion Sensor |
| Technical Information | |
| Wireless Technology | Infrared |
| Passive Infrared Sensor (PIR) | Yes |
| Power Description | |
| Input Voltage | 24 V DC |
| Physical Characteristics | |
| Product Color | Off White |
| Height | 1.50" (38.10 mm) |
| Width | 6.25" (158.75 mm) |
| Depth | 1.50" (38.10 mm) |
| Miscellaneous | |
| Additional Information | PIR Request-to-Exit Sensor Coverage may be 5 by 6 feet at 7 feet high to 10 by 12 feet at 15 feet high Projects a wrap around U pattern down and away from the door to inhibit tampering May be mounted to the frame header, wall or ceiling |
FAQ
What type of motion detection technology does this sensor use?
The SDC MD-31DOW uses passive infrared technology to detect motion. This method senses heat signatures from moving objects, providing reliable detection without being triggered by stationary heat sources. It's effective for security applications where accurate movement sensing is required.
What power supply is needed for this motion sensor?
This sensor requires a 24V DC power input. It's compatible with standard security system power supplies commonly used in commercial installations. Ensure your power source provides stable 24V DC to maintain consistent sensor operation and detection reliability.
What are the coverage dimensions for this sensor?
Coverage varies with mounting height. At 7 feet high, coverage is approximately 5 by 6 feet. At 15 feet high, coverage expands to about 10 by 12 feet. This adjustable range allows flexibility in installation to suit different door heights and security needs.
How does the tamper-resistant feature work?
The sensor projects a wrap-around U-pattern down and away from the door, which helps inhibit tampering by covering approach angles. This pattern reduces blind spots and makes it harder to bypass the detection zone, enhancing security for doorways and entry points.
Where can I mount this motion sensor?
You can mount the sensor on frame headers, walls, or ceilings. This versatility allows installation in various locations to optimize coverage and integration with your security setup. Choose the mounting position based on your specific door configuration and detection requirements.
What is the primary use for this motion sensor?
This sensor is designed as a PIR request-to-exit sensor for door security. It detects movement to trigger door release mechanisms in access control systems, automating entry and exit processes. It's suitable for commercial buildings, warehouses, and other controlled access environments.
What screen size is listed?
SDC Motion Sensor - IrDA - Off White (MD-31DOW) is best judged through its screen, connectivity, and installation specifications, which help buyers confirm visual fit and deployment suitability.
What resolution or display format is specified?
SDC Motion Sensor - IrDA - Off White (MD-31DOW) is best judged through its screen, connectivity, and installation specifications, which help buyers confirm visual fit and deployment suitability.
