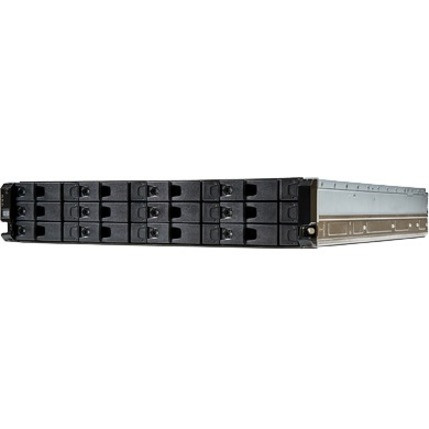

Seagate 1104658-01 Exos X SAN Storage System - 192TB 12 x 16TB 3. 5" HDD 7. 2K RPM 4 x 10GbE SFP Dual Controller 2U Rackmount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This storage system features dual Near Line SAS (NL-SAS) controllers that manage data access and RAID operations across all twelve drive bays. The controllers support RAID levels 0, 1, 3, 5, 6, 10, and 50, allowing administrators to configure the optimal balance of performance, capacity, and redundancy for their specific use case.
Network connectivity is handled by four 10 Gigabit Ethernet ports with SFP interfaces, providing high-throughput iSCSI connectivity for storage area networks. The system includes 16GB of standard memory to support caching and management operations. Four SFP expansion slots offer flexibility for additional network interfaces or storage connectivity modules.
This section brings together practical product details such as Number of Hard Drives Supported, Number of Hard Drives Installed, Total Hard Drive Capacity Supported, Standard Memory, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Exos X system combines high storage density with enterprise reliability features. The dual-controller architecture eliminates single points of failure in the storage path, while redundant power supplies maintain continuous operation during power events. Comprehensive environmental compliance ensures the system meets global standards for hazardous substance restrictions and electronic waste management.
High Availability Design
Dual active-active controllers and redundant power supplies deliver continuous storage access for mission-critical applications.
- Automatic failover between controllers
- Hot-swappable component design
- Continuous operation during maintenance
Enterprise Management
Support for iSCSI, SNMP, SSH, SMTP, HTTP, and HTTPS protocols enables integration with existing monitoring and management infrastructure.
- Remote configuration and monitoring
- Standard protocol support
- Comprehensive alerting capabilities
Deployment / Use Cases
This storage system is engineered for data center environments requiring high-capacity, shared storage solutions. The 2U form factor optimizes rack space while delivering substantial storage capacity, making it suitable for virtualization hosts, database servers, backup targets, and media storage applications.
Organizations can deploy the system as primary storage for virtual machine datastores, where the 10GbE connectivity supports multiple simultaneous host connections. The RAID-protected storage pool provides reliable capacity for file servers, archival systems, and development environments. The system's expandability allows for future capacity growth as storage requirements increase.
Virtualization Infrastructure
Provide shared storage for VMware, Hyper-V, or other hypervisor platforms with high-throughput iSCSI connectivity and RAID-protected capacity.
Backup and Archive
Serve as a backup target or long-term archive with 192TB of immediately available storage and support for capacity expansion.
Physical Profile
The 2U rack-mountable chassis measures 3.46 inches in height, 19.01 inches in width, and 24.80 inches in depth, conforming to standard 19-inch rack dimensions. Weighing 70.55 pounds, the system includes appropriate mounting hardware for secure installation in data center racks. The front-accessible drive bays and rear-mounted controllers and power supplies facilitate maintenance without removing the system from the rack.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.46" (87.88 mm), 19.01" (482.85 mm), 24.80" (629.92 mm), 70.55 lb (32000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 19.01" (482.85 mm)
- Depth
- 24.80" (629.92 mm)
- Height
- 3.46" (87.88 mm)
- Weight
- 70.55 lb (32000 g)
Highlights
- 192TB installed capacity from twelve 16TB 3.5" hard drives
- Dual Near Line SAS controllers for high availability
- Four 10GbE SFP ports for high-throughput connectivity
- 2U rack-mountable chassis optimizes data center space
- Supports RAID levels 0, 1, 3, 5, 6, 10, and 50
- 16GB standard memory for caching and operations
- Redundant 580W power supplies ensure continuous operation
- Comprehensive management via iSCSI, SNMP, SSH, and HTTP/HTTPS
- Environmental compliance with RoHS, WEEE, and REACH standards
- Twelve drive bays support future capacity expansion to 216TB
Specifications
| Specifications | |
|---|---|
| Manufacturer | Seagate Technology |
| Manufacturer Part Number | 1104658-01 |
| Brand Name | Seagate |
| Product Line | Exos X |
| Product Name | Exos X NAS Storage System |
| Product Type | SAN Storage System |
| Storage | |
| Number of Hard Drives Supported | 12 |
| Number of Hard Drives Installed | 12 |
| Total Hard Drive Capacity Supported | 216 TB |
| Total Hard Drive Capacity Installed | 192 TB |
| Hard Drive Configuration | 12 x 16TB |
| Number of Solid State Drive Supported | 12 |
| Number of Solid State Drive Installed | 0 |
| Memory | |
| Standard Memory | 16 GB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Number of 3.5" Bays | 12 |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Controllers | |
| Number of Controllers | 2 |
| Controller Type | Near Line SAS (NL-SAS) |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 3, 5, 6, 10, 50 |
| Interfaces/Ports | |
| Number of iSCSI Ports | 4 |
| Management & Protocols | |
| Protocols | iSCSI,SNMP,SSH,SMTP,HTTP,HTTPS |
| Power Description | |
| Maximum Power Supply Wattage | 580 W |
| Redundant Power Supply | Yes |
| Physical Characteristics | |
| Height | 3.46" (87.88 mm) |
| Width | 19.01" (482.85 mm) |
| Depth | 24.80" (629.92 mm) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Weight (Approximate) | 70.55 lb (32000 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
User Manual
FAQ
What is the total installed storage capacity of this system?
The system comes pre-configured with 192TB of storage capacity across twelve 16TB 3.5" hard drives. This represents the immediately usable storage before any RAID configuration, which may reduce available capacity depending on the RAID level selected for data protection.
How many network ports does this storage system have?
This system includes four 10 Gigabit Ethernet ports with SFP interfaces. These ports support iSCSI connectivity for storage area networks, providing high-throughput access to the storage resources. The SFP interfaces allow for flexible media selection including copper or fiber optic connections.
What RAID levels are supported by the dual controllers?
The dual Near Line SAS controllers support RAID levels 0, 1, 3, 5, 6, 10, and 50. This comprehensive RAID support enables administrators to choose the optimal balance of performance, capacity utilization, and data protection for their specific application requirements, from striped performance configurations to nested RAID for enhanced redundancy.
What is the rack height of this storage system?
This storage system occupies 2U (3.46 inches) of vertical space in a standard 19-inch rack. The 2U form factor provides substantial storage density while maintaining accessibility to all components, including front-accessible drive bays and rear-mounted controllers and power supplies for easy maintenance.
Does this system include redundant power supplies?
Yes, the system includes redundant 580W power supplies. This redundant power design ensures continuous operation if one power supply fails or needs to be replaced, maintaining storage availability for critical applications. The power supplies are hot-swappable, allowing replacement without system downtime.
What management protocols are supported for monitoring and configuration?
The system supports iSCSI for storage connectivity, along with SNMP, SSH, SMTP, HTTP, and HTTPS for management and monitoring. These standard protocols enable integration with existing network management systems, remote configuration via secure shell, email alerting for system events, and web-based administration through HTTP or HTTPS interfaces.
How many cores are listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
How much memory is installed?
It includes 16 GB of memory to support responsive multitasking and daily workloads.
