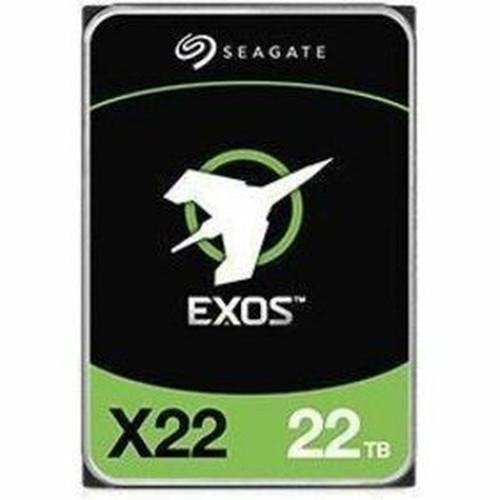

Seagate Exos X22 ST22000NM002E 22 TB Hard Drive - 3.5" Internal - SATA (SATA/600) - Conventional Magnetic Recording (CMR) Method - - - (ST22000NM002E)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Storage Capacity: 22 TB
Disk Format: 512e/4Kn
Recording Technology: Conventional Magnetic Recording (CMR)
Random 4KB Read: 168IOPS
Random 4KB Write: 550IOPS
Spindle Speed (rpm): 7200
Buffer: 512 MB
Drive Interface: SATA
Drive Interface Standard: SATA/600
Drive Type: Internal
Form Factor: 3.5"
Hot Pluggable: Yes
Height: 1.03" (26.11 mm)
Width: 4.01" (101.85 mm)
Depth: 5.79" (147 mm)
Weight (Approximate): 1.50 lb (679.93 g)
Device Supported: Storage Array
Limited Warranty: 5 Year
- Scalable hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore- D2D, virtual tape
- Centralized surveillance
[custom-specifications]
| Specifications | |
| Manufacturer | Seagate Technology |
| Manufacturer Part Number | ST22000NM002E |
| Manufacturer Website Address | http://www.seagate.com |
| Brand Name | Seagate |
| Product Line | Exos |
| Product Series | X22 |
| Product Model | ST22000NM002E |
| Product Name | Exos X22 ST22000NM002E Hard Drive |
| Product Type | Hard Drive |
| Technical Information | |
| Storage Capacity | 22 TB |
| Disk Format | 512e/4Kn |
| Recording Technology | Conventional Magnetic Recording (CMR) |
| Drive Performance | |
| Random 4KB Read | 168IOPS |
| Random 4KB Write | 550IOPS |
| Spindle Speed (rpm) | 7200 |
| Buffer | 512 MB |
| Interfaces/Ports | |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | 3.5" |
| Hot Pluggable | Yes |
| Height | 1.03" (26.11 mm) |
| Width | 4.01" (101.85 mm) |
| Depth | 5.79" (147 mm) |
| Weight (Approximate) | 1.50 lb (679.93 g) |
| Miscellaneous | |
| Device Supported | Storage Array |
| Warranty | |
| Limited Warranty | 5 Year |
