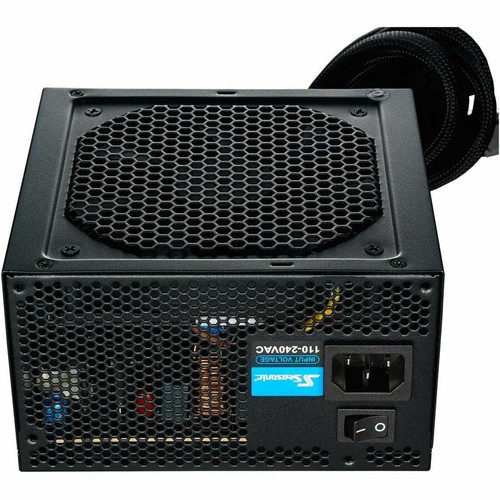

Seasonic S12III Internal ATX Power Supply With Efficient Cooling And Stable Output For Desktop Systems Input AC DC SB V SSR-500GB3
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Specification Compliance: ATX12V,EPS12V
Efficiency: 87%
Power Factor Correction (PFC): Active
Number of Fans: 1
Fan Bearing Type: Sleeve Bearing

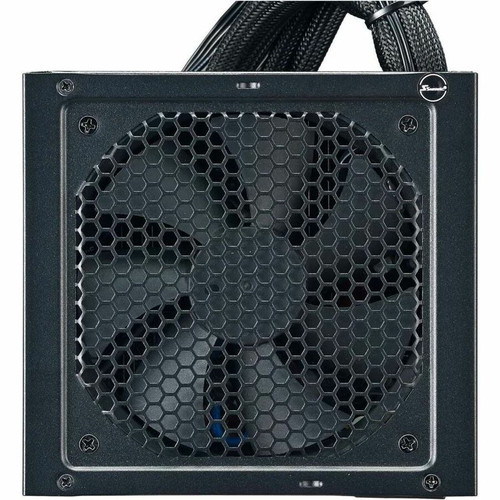

Fan Diameter: 120 mm (4.72")
Protection Type: Over Power,Over Voltage,Short Circuit,Under Voltage
Modular: No
Features: S2FC Fan Control
MTBF: 100000 Hour
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB
Output Voltage Detail: 3.3 V DC @ 18 A,5 V DC @ 18 A,12 V DC @ 40 A,-12 V DC @ 0.3 A,5 V DC @ 2.5 A
Output Power: 500 W
Number of SATA Power Connectors: 4
PCI Express Connector: Yes
Number of (6+2 pin) PCI Express Power Connectors: 2
Form Factor: Internal
Height: 3.39" (86 mm)
Width: 5.51" (140 mm)
Energy Star: Yes
Energy Efficiency Certification: 80 Plus Bronze
Energy Efficiency Compliance: Energy-related Products Directive Lot 6 (ErP Lot 6)
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
Limited Warranty: 5 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Sea Sonic Electronics Co., Ltd |
| Manufacturer Part Number | SSR-500GB3 |
| Manufacturer Website Address | http://www.seasonic.com |
| Brand Name | Seasonic |
| Product Series | S12III |
| Product Model | SSR-500GB3 |
| Product Name | S12III SSR-500GB3 500W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V,EPS12V |
| Efficiency | 87% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Bearing Type | Sleeve Bearing |
| Fan Diameter | 120 mm (4.72") |
| Protection Type | Over Power,Over Voltage,Short Circuit,Under Voltage |
| Modular | No |
| Features | S2FC Fan Control |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB |
| Output Voltage Detail | 3.3 V DC @ 18 A,5 V DC @ 18 A,12 V DC @ 40 A,-12 V DC @ 0.3 A,5 V DC @ 2.5 A |
| Output Power | 500 W |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 4 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 2 |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.39" (86 mm) |
| Width | 5.51" (140 mm) |
| Miscellaneous | |
| Energy Star | Yes |
| Energy Efficiency Certification | 80 Plus Bronze |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 6 (ErP Lot 6) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
Additional-pdf3
[/custom-user-manual]
