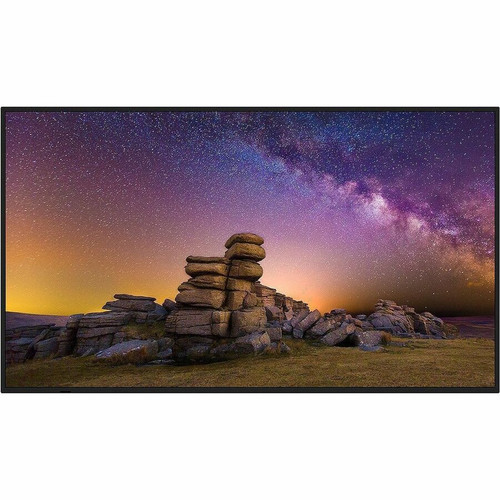

Sharp PN-M502 MultiSync Digital Signage Display - 49.5" 4K UHD LCD HDR LED 550 cd/m² - Landscape/Portrait Orientation
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Sharp MultiSync PN-M502 is a 49.5-inch digital signage display engineered for demanding commercial environments. With its 4K UHD resolution and HDR support, this display delivers crisp, vibrant visuals that capture attention in retail, hospitality, corporate, and public venue settings.
Designed for continuous operation, the PN-M502 features a robust LED backlight system that maintains consistent brightness and color uniformity across the screen. The display's commercial-grade construction ensures reliable performance in 24/7 installations, backed by a 3-year limited warranty for peace of mind.
Relevant factors for this section include Bezel Width (Top), Bezel Width (Bottom), Bezel Width (Left), Number of Screens. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
This digital signage display combines advanced visual technology with flexible connectivity options. The 3840 x 2160 resolution provides four times the detail of Full HD, while HDR10, HLG, and PQ support enhances contrast and color depth for more realistic imagery.
With a 1200:1 native contrast ratio and 72% NTSC color gamut, the PN-M502 reproduces content with accurate color representation and deep blacks. The 550 cd/m² brightness ensures excellent visibility even in well-lit environments, making it suitable for storefronts, lobbies, and other bright locations.
Relevant factors for this section include Bezel Width (Top), Bezel Width (Bottom), Bezel Width (Left), Number of Screens. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The PN-M502 stands out with features specifically designed for commercial digital signage deployments. Its dual-orientation capability allows for both landscape and portrait configurations, providing flexibility in content presentation and space utilization.
Narrow Bezel Design
With bezels measuring just 0.43" on three sides and 0.55" on the bottom, this display minimizes visual interruptions when used in multi-screen video wall configurations.
- 0.43" top/side bezels
- 0.55" bottom bezel
- Video wall ready
Comprehensive Connectivity
Multiple input options including 2 HDMI 2.0 ports, DisplayPort, USB, and serial connections provide compatibility with various content sources and control systems.
- 2 HDMI 2.0 inputs
- DisplayPort input/output
- RS-232C control
Commercial Durability
Built for extended operation with wide temperature and humidity tolerances, ensuring reliable performance in diverse environmental conditions.
- 0-40°C operating range
- 20-80% humidity range
- 24/7 operation capable
Deployment / Use Cases
The Sharp MultiSync PN-M502 excels in commercial environments where visual impact and reliability are paramount. Its high brightness and 4K resolution make it ideal for retail stores, restaurants, and hospitality venues where captivating displays drive customer engagement and brand messaging.
Corporate lobbies, conference centers, and educational institutions benefit from the display's professional appearance and flexible mounting options. The VESA 300x300 compatibility supports secure wall mounting, while the included Raspberry Pi Compute Module 4 with optional NEC interface board enables sophisticated content management and interactive applications.
Retital & Hospitality
Showcase products, promotions, and brand content with stunning 4K clarity that captures customer attention in high-traffic areas.
Corporate & Education
Display schedules, announcements, wayfinding information, and presentations in office buildings, schools, and university campuses.
Physical Profile
Measuring 44.20" high by 25.40" wide with a slim 2.60" depth, the PN-M502 presents a clean, professional appearance suitable for commercial installations. The 39.70 lb weight facilitates secure mounting while remaining manageable for installation teams. The display's wall-mountable design with standard VESA 300x300 compatibility ensures straightforward integration into existing mounting systems or custom installations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 44.20" (1122.68 mm), 0.55" (13.90 mm), 2.60" (66.04 mm), 39.70 lb (18007.62 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 0.55" (13.90 mm)
- Depth
- 2.60" (66.04 mm)
- Height
- 44.20" (1122.68 mm)
- Weight
- 39.70 lb (18007.62 g)
What's in the Box
The package includes everything needed for immediate deployment of your digital signage solution.
Highlights
- 49.5-inch 4K UHD digital signage display with HDR support
- 550 cd/m² brightness for excellent visibility in commercial environments
- Landscape and portrait orientation flexibility
- Narrow bezels (0.43" top/sides, 0.55" bottom) for video wall applications
- Multiple connectivity options including 2 HDMI 2.0, DisplayPort, USB, and serial
- VESA 300x300 mount compatible for secure wall installation
- Includes Raspberry Pi Compute Module 4 for content management
- Commercial-grade construction with 0-40°C operating temperature range
- ENERGY STAR 8.0 certified for energy efficiency
- 3-year limited warranty for reliable long-term operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Sharp Electronics |
| Manufacturer Part Number | PN-M502 |
| Brand Name | Sharp |
| Product Line | MultiSync |
| Product Series | PN-M |
| Product Model | PN-M502 |
| Product Name | MultiSync PN-M502 Digital Signage Display |
| Product Type | Digital Signage Display |
| Technical Information | |
| Bezel Width (Top) | 0.43" (10.90 mm) |
| Bezel Width (Bottom) | 0.55" (13.90 mm) |
| Bezel Width (Left) | 0.43" (10.90 mm) |
| Bezel Width (Right) | 0.43" (10.90 mm) |
| Display & Graphics | |
| Number of Screens | 1 |
| Viewable Screen Size | 49.50" (1257.30 mm) |
| Screen Size Class | 50" (1270 mm) |
| Display Screen Type | LCD |
| High Dynamic Range (HDR) | Yes |
| High Dynamic Range (HDR) Type | HDR10,HLG,PQ |
| Display Resolution | 3840 x 2160 |
| Orientation | Landscape/Portrait |
| Backlight Technology | LED |
| Aspect Ratio | 16:9 |
| Video | |
| Scan Format | 2160p |
| Native Contrast Ratio | 1,200:1 |
| Brightness | 550 cd/m² |
| Color Gamut | 72% NTSC |
| Network & Communication | |
| Ethernet | Yes |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 1 |
| Number of DisplayPorts | 1 |
| DisplayPort Output | Yes |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Number of HDMI 2.0 Ports | 2 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |

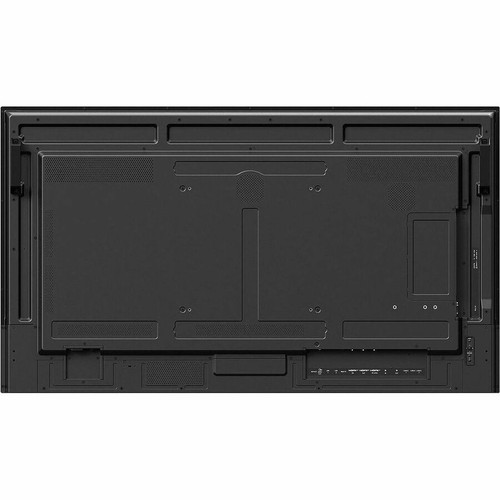

| VESA Mount Standard | 300 x 300 |
| Mount Type | Wall Mountable |
| Mount Surface | Wall |
| Height | 44.20" (1122.68 mm) |
| Width | 25.40" (645.16 mm) |
| Depth | 2.60" (66.04 mm) |
| Weight (Approximate) | 39.70 lb (18007.62 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 80% |
| Miscellaneous | |
| Package Contents | MultiSync PN-M502 Digital Signage Display All SDM Option Cards Raspberry Pi Compute Module 4 with Optional NEC Interface Board Human Sensor (PN-KTRC3) |
| Application/Usage | Commercial |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the screen size and resolution of the Sharp PN-M502 display?
The Sharp MultiSync PN-M502 features a 49.5-inch viewable screen size with a 4K UHD resolution of 3840 x 2160 pixels. This provides four times the detail of Full HD displays, delivering crisp, detailed imagery ideal for digital signage applications where visual impact matters.
Can this display be used in portrait orientation?
Yes, the PN-M502 supports both landscape and portrait orientations. This flexibility allows content creators to optimize their messaging for different spaces and applications, whether displaying traditional widescreen content or creating vertical layouts for specific retail or informational displays.
What mounting options are available for this digital signage display?
The display is VESA 300x300 compatible and designed for wall mounting. This standard mounting pattern ensures compatibility with a wide range of commercial mounting solutions, from simple wall brackets to sophisticated video wall frameworks for multi-display installations.
What connectivity options does the PN-M502 offer?
This display provides comprehensive connectivity including 2 HDMI 2.0 inputs, 1 DisplayPort input/output, USB, Ethernet, and RS-232C serial connections. These multiple input options ensure compatibility with various content sources, from media players and computers to control systems and network-based content delivery platforms.
Is this display suitable for 24/7 operation in commercial environments?
Yes, the PN-M502 is engineered for continuous commercial operation. It features a wide operating temperature range of 32°F to 104°F (0°C to 40°C) and humidity tolerance from 20% to 80%. The LED backlight technology and commercial-grade components are designed for extended use in retail, hospitality, and corporate settings.
What is included in the package with this digital signage display?
The package includes the MultiSync PN-M502 Digital Signage Display, all SDM option cards, a Raspberry Pi Compute Module 4 with optional NEC interface board for content management, and a human sensor (PN-KTRC3). These components provide a complete solution for deploying interactive or sensor-triggered digital signage applications.
