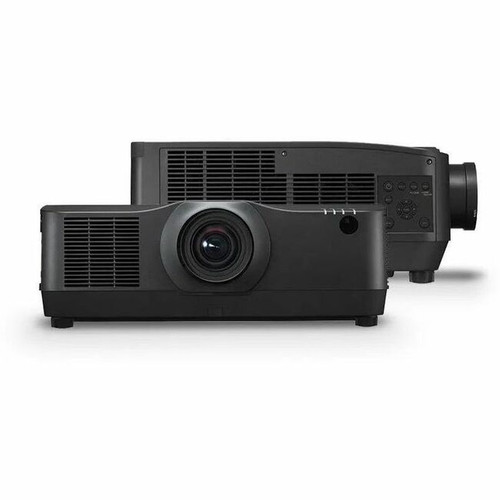

Sharp XP-A104U-B Ultra Short Throw LCD Projector - 10500 lm - 4096 x 2160 - 21: 9 - HDR10 - Laser - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Sharp XP-A104U-B is an Ultra Short Throw LCD projector engineered for demanding professional environments where space constraints and image quality are paramount. This black-finished projector delivers 10500 lumens of brightness with a native 4096 x 2160 resolution on a cinematic 21:9 aspect ratio screen, making it ideal for wide-format presentations, digital signage, and immersive viewing experiences.
Its laser light source provides consistent color performance and an extended 20,000-hour operational life, significantly reducing maintenance intervals compared to traditional lamp-based systems. With HDR10 support and a 3,000,000:1 contrast ratio, the projector reproduces deep blacks and vibrant highlights across corporate boardrooms, educational auditoriums, museum exhibits, and cinema applications where visual fidelity drives engagement.
Relevant factors for this section include Projection Method, High Dynamic Range (HDR), High Dynamic Range (HDR) Type, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
This projector's technical architecture centers on a single laser illumination system that outputs 10500 lm in standard mode while consuming 750 W during operation. The imaging engine supports a maximum 4096 x 2160 pixel grid (4K DCI) and processes HDR10 metadata for enhanced dynamic range in compatible content. Video signal compatibility spans global broadcast standards including NTSC, PAL, and SECAM variants, with HDTV and 2160p output scan formats ensuring broad source device support.
The ultra short throw lens design allows placement just 30 inches from the projection surface while still achieving throw distances up to 68.5 feet, providing exceptional installation flexibility in rooms with limited depth or ceiling obstructions. Network connectivity via RJ-45 enables remote management and monitoring, while HDMI and USB ports facilitate direct connections to media players, computers, and storage devices without intermediate signal processors.
Key Product Advantages
The XP-A104U-B combines high-brightness laser illumination with ultra short throw optics to solve common projection challenges in fixed installations. Its 10500 lm output maintains image visibility in well-lit environments, while the 3,000,000:1 contrast ratio preserves shadow detail and color saturation even in dark viewing conditions. The laser light source eliminates lamp replacement concerns for approximately 20,000 hours of operation, reducing total cost of ownership for high-utilization venues.
Installation Flexibility
Ceiling, rear, front, and combination mounting options accommodate diverse room architectures without compromising image alignment or accessibility.
- Ceiling mountable
- Floor mountable
- Front/Rear ceiling compatible
Professional Connectivity
HDMI, USB, and wired network ports support modern presentation workflows while maintaining compatibility with legacy video sources through comprehensive signal format recognition.
- HDMI for digital video
- USB for direct projection
- RJ-45 for network control
Deployment / Use Cases

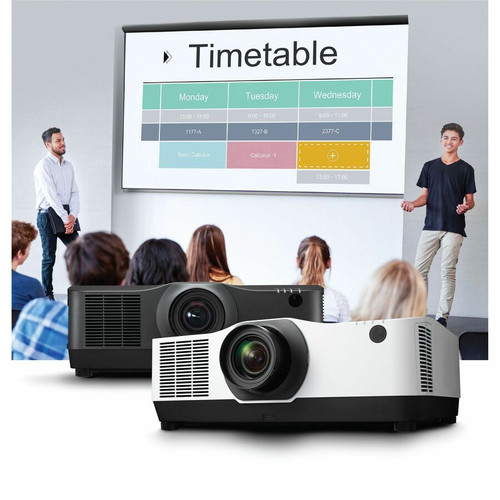

This projector's brightness, resolution, and throw characteristics make it particularly effective in large-venue applications where audience sight lines and ambient light control vary. Corporate training facilities benefit from the 21:9 aspect ratio for simultaneous presentation of data and video content, while educational institutions utilize the ultra short throw capability to position the projector safely above interactive whiteboards without casting presenter shadows.
Museum and gallery installations leverage the consistent laser output for artifact illumination that doesn't degrade over time, and cinema operators appreciate the 4K DCI resolution for digital film projection that meets commercial screening standards. Conference rooms and auditoriums with fixed seating layouts use the multiple projection methods to optimize sight lines regardless of ceiling height or wall placement constraints.
Physical Profile
The projector's black chassis measures 23.60" wide × 19.30" high × 8.50" deep (599.44 × 490.22 × 215.90 mm) with a weight of 53.10 lb (24085.75 g), engineered for secure mounting in both ceiling and floor installations. The compact depth relative to its brightness class allows installation in tight plenum spaces while maintaining adequate ventilation for the laser cooling system. All mounting points and connection panels are accessible from multiple orientations to simplify integration into existing AV infrastructure.
- Width
- 23.60" (599.44 mm)
- Depth
- 8.50" (215.90 mm)
- Height
- 19.30" (490.22 mm)
- Weight
- 53.10 lb (24085.75 g)
What's in the Box
The package includes all essential components for immediate deployment and ongoing operation.
Highlights
- 10500 lm laser brightness for well-lit environments
- Ultra short throw lens with 30" minimum projection distance
- 4096 x 2160 native resolution (4K DCI) on 21:9 aspect ratio
- HDR10 support with 3,000,000:1 contrast ratio
- 20,000-hour laser light source life
- HDMI, USB, and network (RJ-45) connectivity
- Ceiling, floor, front, and rear mounting flexibility
- 5-year/20,000-hour warranty with next-business-day exchange
Specifications
| Specifications | |
|---|---|
| Manufacturer | Sharp Electronics |
| Manufacturer Part Number | XP-A104U-B |
| Brand Name | Sharp |
| Product Series | A |
| Product Model | XP-A104U-B |
| Product Name | A Series XP-A104U-W LCD Projector |
| Product Type | LCD Projector |
| Technical Information | |
| Projection Method | Ceiling,Rear,Front,Front Ceiling,Rear Ceiling |
| High Dynamic Range (HDR) | Yes |
| High Dynamic Range (HDR) Type | HDR10 |
| Display & Graphics | |
| Maximum Resolution | 4096 x 2160 |
| Native Aspect Ratio | 21:9 |
| Projection Lens | |
| Throw Type | Ultra Short Throw |
| Minimum Projection Distance | 30" (762 mm) |
| Maximum Projection Distance | 68.50 ft (20878.80 mm) |
| Lamp | |
| Number of Lamps | 1 |
| Lamp Type | Laser |
| Normal Mode Lamp Life | 20000 Hour |
| Image | |
| Standard Mode Brightness | 10500 lm |
| Contrast Ratio | 3,000,000:1 |
| Video | |
| Video Signal Format | NTSC,NTSC 4.43,PAL,PAL 60,PAL M,PAL N,SECAM |
| Video Signal Standard | HDTV |
| Output Scan Format | 2160p |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Operating Power Consumption | 750 W |
| Standby Power Consumption | 800 mW |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Ceiling Mountable,Floor Mountable |
| Height | 19.30" (490.22 mm) |
| Width | 23.60" (599.44 mm) |
| Depth | 8.50" (215.90 mm) |
| Weight (Approximate) | 53.10 lb (24085.75 g) |
| Miscellaneous | |
| Application/Usage | Corporate,Education,Museum,Auditorium,Conference,Cinema |
| Package Contents | A Series XP-A104U-W LCD Projector Remote Control Batteries Power Cord Quick start guide Cable cover Product registration card. |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | Registered owners receive a five (5) years or 20,000 hours (whichever comes first) parts and labor warranty including InstaCare next business day exchange. |
User Manual
FAQ
What is the brightness output of this projector?
The Sharp XP-A104U-B delivers 10500 lumens in standard mode, making it suitable for large venues with ambient light. This high brightness ensures clear, visible images in corporate boardrooms, educational auditoriums, and other professional environments where lighting control may be limited.
What type of light source does this projector use?
This projector utilizes a laser light source with a rated life of 20,000 hours in normal mode. Laser illumination provides consistent color performance over time without the brightness degradation associated with traditional lamps, reducing maintenance requirements and total cost of ownership for high-usage installations.
What resolution and aspect ratio does this projector support?
The native resolution is 4096 x 2160 pixels (4K DCI) with a 21:9 aspect ratio. This wide format is ideal for cinematic content, simultaneous data/video presentations, and digital signage applications where standard 16:9 displays would require cropping or letterboxing of.
What is the throw distance range for this ultra short throw projector?
The minimum projection distance is 30 inches (762 mm) from the lens to the screen, while the maximum reaches 68.50 feet (20878.80 mm). This ultra short throw capability allows installation very close to the projection surface, minimizing shadows and optimizing space utilization in rooms with limited depth.
What connectivity options are available?
The projector includes HDMI and USB ports for direct connection to media players and computers, plus an RJ-45 network port for remote management and control. These interfaces support modern presentation workflows while maintaining compatibility with a wide range of source devices through comprehensive video signal format recognition.
What warranty coverage is provided?
Registered owners receive a 5-year or 20,000-hour parts and labor warranty (whichever comes first), including InstaCare next-business-day exchange service. This coverage reflects confidence in the laser light source's longevity and the projector's overall reliability in professional installation environments.
