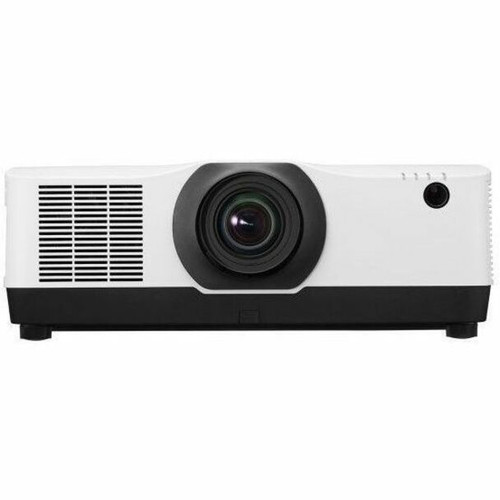

Sharp XP-A104U-W Ultra Short Throw LCD Projector - 10500 lm Laser - 4096 x 2160 21: 9 HDR10 - White - Ceiling/Floor Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Sharp XP-A104U-W is an ultra short throw LCD projector engineered for demanding professional environments where space constraints and image quality are equally critical. This white projector delivers exceptional 10500 lm brightness through a reliable laser light source, ensuring vivid presentations even in well-lit rooms.
With its 4096x2160 4K resolution and expansive 21:9 native aspect ratio, the projector supports cinematic widescreen content and detailed data visualization. HDR10 compatibility enhances contrast and color depth, while the 3,000,000:1 contrast ratio produces deep blacks and bright highlights for impactful imagery.
Relevant factors for this section include Projection Method, High Dynamic Range (HDR), High Dynamic Range (HDR) Type, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
This projector utilizes an ultra short throw lens that projects large images from just 30 inches away, making it ideal for installations with limited depth. The laser light source provides 20,000 hours of operation in normal mode, significantly reducing maintenance compared to traditional lamp-based systems.
Video compatibility is comprehensive, supporting HDTV standards and 2160p output along with legacy formats including NTSC, PAL, and SECAM. Connectivity includes HDMI for high-definition sources, USB for PC-free media playback, and RJ-45 for network control and management.
Relevant factors for this section include Projection Method, High Dynamic Range (HDR), High Dynamic Range (HDR) Type, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The XP-A104U-W combines high-brightness laser projection with flexible installation options to address challenging AV scenarios. Its ultra short throw capability allows placement close to the screen or wall, minimizing shadows and presenter interference.
Professional-Grade Brightness
10500 lumens ensures clear visibility in corporate boardrooms, educational auditoriums, and museum exhibits where ambient light cannot be fully controlled.
- Laser reliability
- Consistent output over lifespan
- Suitable for large venues
Installation Flexibility
Ceiling and floor mounting options accommodate various room configurations, while the compact 23.6"W x 19.3"H x 8.5"D footprint optimizes space utilization.
- Multiple projection methods
- White finish blends with interiors
- 53.1 lb weight for stable mounting
Deployment / Use Cases
This projector is designed for environments where image size, quality, and installation flexibility are paramount. Its ultra short throw lens and high brightness make it particularly effective in spaces with limited throw distance or controlled ambient light.
In corporate settings, it supports detailed financial presentations and video conferences. Educational institutions benefit from its ability to project large, clear images in lecture halls and STEM labs. Museums and galleries use it for immersive exhibits, while cinemas and auditoriums leverage its 21:9 aspect ratio for widescreen content.
Corporate & Conference
Ideal for boardrooms and training centers where presenters need to stand close to the screen without casting shadows, with network connectivity for centralized management.
Education & Auditorium
Suits large classrooms and lecture halls with its high brightness and compatibility with various video sources, from document cameras to media players.
Physical Profile
The projector features a clean white exterior that integrates discreetly into professional environments. Its dimensions of 23.60" wide, 19.30" high, and 8.50" deep provide a balanced footprint for ceiling or floor mounting. At 53.10 pounds, it requires appropriate mounting hardware for secure installation in permanent AV setups.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 19.30" (490.22 mm), 23.60" (599.44 mm), 8.50" (215.90 mm), 53.10 lb (24085.75 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 23.60" (599.44 mm)
- Depth
- 8.50" (215.90 mm)
- Height
- 19.30" (490.22 mm)
- Weight
- 53.10 lb (24085.75 g)
What's in the Box
The package includes all essential components for immediate setup and operation.
Highlights
- 10500 lm laser brightness for clear images in lit environments
- Ultra short throw lens projects from just 30 inches away
- 4096x2160 4K resolution with 21:9 cinematic aspect ratio
- HDR10 support for enhanced contrast and color depth
- Laser light source with 20,000-hour lifespan
- Flexible ceiling and floor mounting options
- HDMI, USB, and RJ-45 network connectivity
- Comprehensive video format compatibility including NTSC, PAL, SECAM
- 5-year or 20,000-hour warranty with InstaCare exchange
- Designed for corporate, education, museum, and cinema applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Sharp Electronics |
| Manufacturer Part Number | XP-A104U-W |
| Brand Name | Sharp |
| Product Series | A |
| Product Model | XP-A104U-W |
| Product Name | A Series XP-A104U-W LCD Projector |
| Product Type | LCD Projector |
| Technical Information | |
| Projection Method | Ceiling,Rear,Front,Front Ceiling,Rear Ceiling |
| High Dynamic Range (HDR) | Yes |
| High Dynamic Range (HDR) Type | HDR10 |
| Display & Graphics | |
| Maximum Resolution | 4096 x 2160 |
| Native Aspect Ratio | 21:9 |
| Projection Lens | |
| Throw Type | Ultra Short Throw |
| Minimum Projection Distance | 30" (762 mm) |
| Maximum Projection Distance | 68.50 ft (20878.80 mm) |
| Lamp | |
| Number of Lamps | 1 |
| Lamp Type | Laser |
| Normal Mode Lamp Life | 20000 Hour |
| Image | |
| Standard Mode Brightness | 10500 lm |
| Contrast Ratio | 3,000,000:1 |
| Video | |
| Video Signal Format | NTSC,NTSC 4.43,PAL,PAL 60,PAL M,PAL N,SECAM |
| Video Signal Standard | HDTV |
| Output Scan Format | 2160p |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Operating Power Consumption | 750 W |
| Standby Power Consumption | 800 mW |
| Physical Characteristics | |
| Product Color | White |
| Form Factor | Ceiling Mountable,Floor Mountable |
| Height | 19.30" (490.22 mm) |
| Width | 23.60" (599.44 mm) |
| Depth | 8.50" (215.90 mm) |
| Weight (Approximate) | 53.10 lb (24085.75 g) |
| Miscellaneous | |
| Application/Usage | Corporate,Education,Museum,Auditorium,Conference,Cinema |
| Package Contents | A Series XP-A104U-W LCD Projector Remote Control Batteries Power Cord Quick start guide Cable cover Product registration card. |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | Registered owners receive a five (5) years or 20,000 hours (whichever comes first) parts and labor warranty including InstaCare next business day exchange. |
FAQ
What is the brightness of this projector and why is it important?
The Sharp XP-A104U-W delivers 10500 lumens in standard mode. This high brightness level ensures that projected images remain clear and visible even in environments with significant ambient light, such as conference rooms with windows or auditoriums with partial lighting. It is particularly important for large-venue applications where image clarity must be maintained across different lighting conditions.
How does the ultra short throw feature benefit installation?
The ultra short throw lens allows the projector to be placed just 30 inches from the screen or wall while still projecting a large image. This minimizes shadows cast by presenters standing near the screen and reduces the required depth for installation. It is ideal for rooms with limited space behind the screen or where ceiling mounting close to the wall is necessary.
What type of light source does this projector use and how long does it last?
This projector uses a laser light source instead of a traditional lamp. The laser provides 20,000 hours of operation in normal mode, which significantly reduces maintenance frequency and cost compared to lamp-based projectors that typically require replacement every 1,000 to 5,000 hours. The laser also maintains consistent brightness and color output throughout its lifespan.
What resolution and aspect ratio does this projector support?
The projector supports a maximum resolution of 4096 x 2160 (4K) with a native aspect ratio of 21:9. This widescreen format is ideal for cinematic content and panoramic data visualization, providing more horizontal screen space than standard 16:9 projectors. The 4K resolution ensures sharp detail for presentations, videos, and graphical content.
What connectivity options are available on this projector?
The projector includes HDMI for connecting high-definition sources like Blu-ray players and computers, USB for direct media playback without a PC, and RJ-45 network connectivity for remote management and control. These ports support integration with various AV systems and allow for flexible source connectivity in professional environments.
What is the warranty coverage for this projector?
Registered owners receive a 5-year or 20,000-hour parts and labor warranty, whichever comes first. This includes InstaCare next business day exchange service, providing rapid replacement in case of hardware issues. The warranty reflects the product's reliability and Sharp's commitment to supporting professional AV installations over the long term.
