Sharp XP-M421W-W DLP Projector - 4200 Lumens - WXGA 1280 x 800 - Laser Phosphor - 16: 10 - Portable & Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

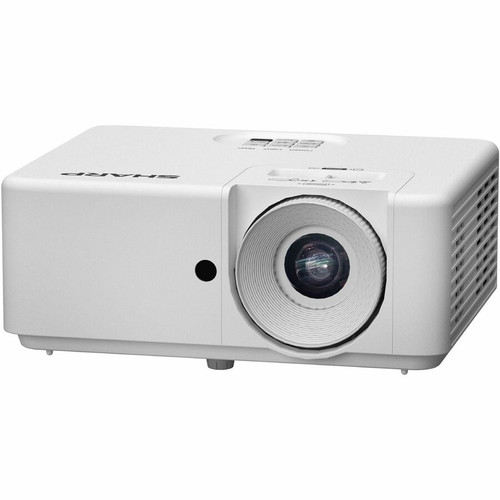

The Sharp XP-M421W-W is a professional-grade DLP projector engineered for demanding business, education, and corporate environments. It delivers a bright 4200-lumen image with WXGA 1280x800 native resolution, ensuring presentations, videos, and data remain clear and visible even in rooms with ambient light.
Built around a reliable laser phosphor light source, this projector eliminates traditional lamp replacement concerns with a rated life of 20,000 hours. Its compact and portable design, combined with flexible mounting options, allows for quick deployment in classrooms, conference rooms, or meeting spaces without permanent installation constraints.
Relevant factors for this section include Projection Method, Native Resolution, Graphic Mode, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
This projector's core imaging technology is DLP, providing a sharp 1280 x 800 native resolution with a 16:10 aspect ratio, well-suited for modern laptop and desktop content. It supports a maximum resolution of 1920 x 1200 and outputs a 1080p scan format for high-definition video compatibility.
The optical system features a 1.3x manual zoom lens with a throw ratio range of 1.19 to 1.54. This allows for image sizing from a 40-inch diagonal at a minimum distance of 51.6 inches up to a 10-foot diagonal at 117.6 inches, offering placement flexibility for various room sizes.
Relevant factors for this section include Projection Method, Native Resolution, Graphic Mode, Maximum Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The XP-M421W-W combines high-brightness output with long-term reliability and user-friendly operation, making it a cost-effective solution for institutional and commercial use.
Reliable Laser Phosphor Light Source
The laser phosphor system provides consistent brightness and color over its exceptionally long 20,000-hour life, drastically reducing maintenance and total cost of ownership compared to traditional lamp-based projectors.
- 20,000-hour rated life
- Consistent light output
- No lamp replacement costs
Installation and Placement Flexibility
Designed for floor, ceiling, front, or rear projection, this unit adapts to any room layout. Its compact size and 6.6-pound weight make it easy to transport and set up temporarily or mount permanently.
- Front/Rear/Ceiling projection
- Portable design
- Multiple mounting options
Intelligent Power Management
Features like auto power on/off and ECO Mode help conserve energy and extend the light source's lifespan by managing power consumption based on signal detection and usage patterns.
- Auto power on/off
- ECO Mode
- Reduced energy use
Deployment / Use Cases
This projector is specifically designed for environments where reliability, ease of use, and clear visibility are paramount. Its 4200-lumen output cuts through ambient light in standard meeting rooms and classrooms.
The flexible throw and mounting options make it suitable for fixed installations in lecture halls or boardrooms, as well as portable use for traveling presenters or shared equipment carts between multiple rooms.
Education & Classrooms
Ideal for K-12 and higher education settings, providing bright, clear images for lessons, videos, and interactive content. The long-life light source minimizes IT maintenance disruptions.
Business & Conference Rooms

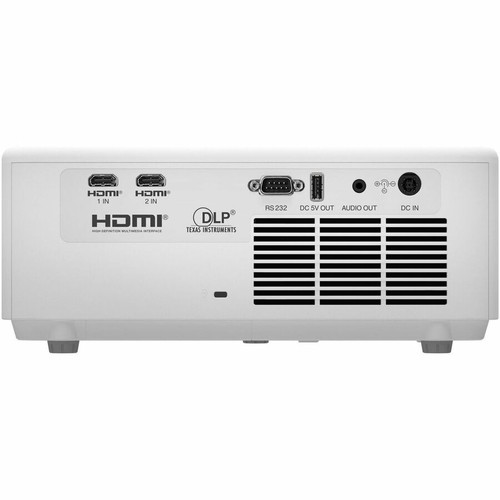

Delivers professional presentation quality for meetings, client pitches, and video conferences. Dual HDMI inputs with CEC support simplify switching between multiple source devices like laptops and media players.
Physical Profile
The projector features a compact chassis measuring 10.90 inches wide, 8.50 inches deep, and 4.50 inches high, with a weight of approximately 6.6 pounds. This streamlined form factor is easy to integrate into ceiling mounts, carry between locations, or store securely. The housing is designed for durability in professional environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.50" (114.30 mm), 10.90" (276.86 mm), 8.50" (215.90 mm), 6.60 lb (2993.71 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 10.90" (276.86 mm)
- Depth
- 8.50" (215.90 mm)
- Height
- 4.50" (114.30 mm)
- Weight
- 6.60 lb (2993.71 g)
- Length
- 16.9 mm (0.67")
What's in the Box
The projector ships with all essential accessories for immediate setup and operation.
Highlights
- 4200 lumens brightness for clear viewing in lit rooms
- Laser phosphor light source with 20,000-hour life
- WXGA 1280x800 native resolution (16:10 aspect ratio)
- Flexible front, rear, and ceiling projection modes
- Compact, portable design at 6.6 lbs
- 1.3x optical zoom for flexible placement
- Dual HDMI inputs with CEC support
- Auto power on/off and ECO Mode for efficiency
- 50,000:1 contrast ratio for deep blacks
- 5-year limited warranty with InstaCare exchange
Specifications
| Specifications | |
|---|---|
| Manufacturer | Sharp Electronics |
| Manufacturer Part Number | XP-M421W-W |
| Brand Name | Sharp |
| Product Series | M |
| Product Model | XP-M421W-W |
| Product Name | 4,200 Lumen, WXGA, Laser, DLP Projector |
| Product Type | DLP Projector |
| Technical Information | |
| Projection Method | Front,Rear,Front Ceiling,Rear Ceiling,Ceiling |
| Display & Graphics | |
| Native Resolution | 1280 x 800 |
| Graphic Mode | WXGA |
| Maximum Resolution | 1920 x 1200 |
| Native Aspect Ratio | 16:10 |
| Projection Lens | |
| Minimum Focal Length | 16.9 mm (0.67") |
| Maximum Focal Length | 21.6 mm (0.85") |
| Minimum Diagonal Image Size | 40" (1016 mm) |
| Maximum Diagonal Image Size | 10 ft (3048 mm) |
| Optical Zoom | 1.3x |
| Minimum Projection Distance | 51.60" (1310.64 mm) |
| Maximum Projection Distance | 117.60" (2987.04 mm) |
| Lamp | |
| Number of Lamps | 1 |
| Lamp Type | Laser/Phosphor |
| Normal Mode Lamp Life | 20000 Hour |
| Image | |
| Standard Mode Brightness | 4200 lm |
| Throw Ratio | 1.19 to 1.54 |
| Contrast Ratio | 50,000:1 |
| Video | |
| Video Signal Standard | HDTV |
| Output Scan Format | 1080p |
| Interfaces/Ports | |
| HDMI | Yes |
| Power Description | |
| Operating Power Consumption | 220 W |
| Physical Characteristics | |
| Form Factor | Floor Mountable,Ceiling Mountable,Portable |
| Height | 4.50" (114.30 mm) |
| Width | 10.90" (276.86 mm) |
| Depth | 8.50" (215.90 mm) |
| Weight (Approximate) | 6.60 lb (2993.71 g) |
| Miscellaneous | |
| Application/Usage | Class Room,Meeting,Room,Conference Room,Education,Business,Corporate |
| Package Contents | 4,200 Lumen, WXGA, Laser, DLP Projector Remote Control 2 x AAA Batteries Power Cord w/ AC Adapter HDMI Cable Lens Cap Important Info Quick Setup Guide |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | Registered owners receive a 5-year parts and labor warranty including InstaCare next business day exchange. |
User Manual
FAQ
What is the brightness of the Sharp XP-M421W-W projector?
The Sharp XP-M421W-W delivers 4200 lumens of brightness in standard mode. This high lumen output ensures presentations and videos remain vivid and easily visible, even in environments with significant ambient light from windows or overhead lighting, making it suitable for classrooms and conference rooms.
What type of light source does this projector use?
This projector uses a laser phosphor light source, not a traditional lamp. This technology offers a significantly longer rated life of 20,000 hours, provides consistent brightness and color over time, and eliminates the need for periodic lamp replacements, reducing long-term maintenance costs and downtime.
What is the native resolution and aspect ratio?
The native resolution is WXGA 1280 x 800 with a 16:10 aspect ratio. This resolution is well-matched for many business laptops and desktop displays, providing a sharp image for presentations, spreadsheets, and web content without black bars or scaling issues common with mismatched aspect ratios.
Can this projector be mounted on the ceiling?
Yes, the XP-M421W-W is designed for ceiling mounting, as well as floor mounting and portable use. It supports front ceiling and rear ceiling projection methods, offering installation flexibility for permanent AV setups in classrooms, training rooms, or boardrooms to keep the unit secure and out of the way.
What is the throw distance range?
The projector has a throw distance range from approximately 51.6 inches (about 4.3 feet) to 117.6 inches (about 9.8 feet). Combined with its 1.3x optical zoom, this allows you to project images ranging from a 40-inch diagonal up to a 10-foot (120-inch) diagonal screen size, accommodating various room depths.
What is included in the warranty?
The product includes a 5-year limited warranty covering parts and labor. For registered owners, this warranty is enhanced with the InstaCare program, which provides a next-business-day exchange service to minimize downtime in the event a repair is needed, offering strong support for business and institutional users.
