Shuttle DS50U XPC Slim Barebone System - Intel Celeron 12th Gen 7305 1. 10 GHz Penta-core - 64 GB DDR5 - 8 USB Ports - Slim PC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DS50U features Intel's 12th Gen Celeron 7305 processor with Penta-core architecture, delivering balanced performance for everyday computing tasks. The system utilizes DDR5 memory technology operating at DDR5-4800/PC5-38400 speeds, providing improved bandwidth over previous generations for smoother application performance.
Storage flexibility is achieved through multiple interface options including one SATA/600 port and three M.2 interfaces supporting NVMe drives. This combination allows for both traditional storage and high-speed SSD configurations to match performance requirements. The integrated graphics utilize shared DDR5 memory, while connectivity is handled by dual Ethernet ports with 2.5 Gigabit and Gigabit capabilities.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone system excels in deployment flexibility with its comprehensive connectivity suite and compact design. The combination of modern processor architecture, fast memory support, and multiple storage options creates a versatile platform that can be tailored to specific application needs.
Comprehensive Connectivity

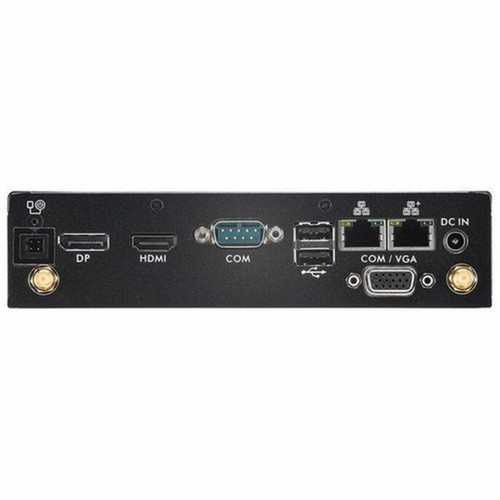

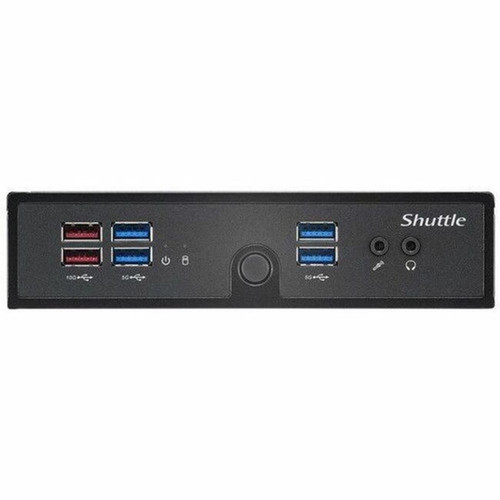

Eight USB ports (including USB 3.2 Gen 1 and Gen 2) provide ample peripheral support, while dual network ports with 2.5 Gigabit Ethernet enable fast data transfer for networked applications. Multiple display outputs including HDMI, DisplayPort, and VGA ensure compatibility with various monitor configurations.
- 8 total USB ports
- Dual Ethernet with 2.5GbE
- HDMI, DisplayPort, VGA outputs
Modern Platform Architecture
The 12th Gen Intel Celeron processor with DDR5 memory support delivers improved performance efficiency. The system's 15W thermal design power contributes to quiet operation and reduced energy consumption, making it suitable for always-on applications.
- 12th Gen Intel architecture
- DDR5 memory support
- 15W TDP for efficiency
Deployment / Use Cases
The Shuttle DS50U's compact dimensions and flexible configuration options make it ideal for environments where space is at a premium. Its slim profile allows for mounting behind displays or in confined enclosures while maintaining full computing capabilities.
Common applications include digital signage systems where the small form factor enables discreet installation, point-of-sale terminals requiring reliable performance with multiple peripheral connections, and office workstations where desk space optimization is important. The system's support for Windows 10, Windows 11, and Linux operating systems provides deployment flexibility across different software environments.
Digital Signage & Kiosk Solutions
The slim form factor and multiple video outputs make this system well-suited for digital signage deployments. Support for modern operating systems ensures compatibility with content management software, while the efficient power design enables 24/7 operation.
Space-Constrained Office Environments
In office settings where desk space is limited, the DS50U's compact footprint allows for discreet placement while providing sufficient performance for productivity applications, web browsing, and communication tools.
Physical Profile
Measuring just 1.56 inches in height, 6.50 inches in width, and 7.87 inches in depth, the DS50U occupies minimal space while delivering full computing capabilities. The black chassis maintains a professional appearance suitable for business environments, with a weight of approximately 3.53 pounds facilitating easy installation and mounting.

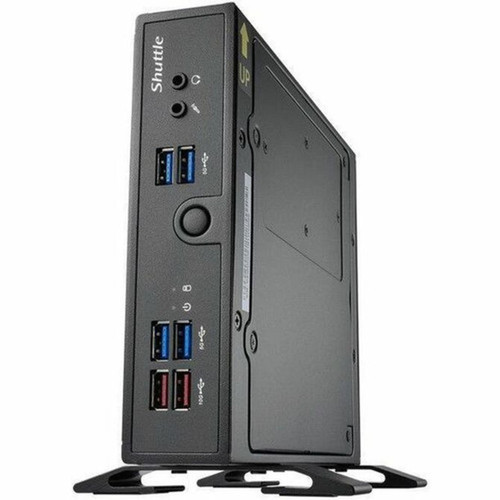

The slim PC form factor enables vertical or horizontal orientation flexibility, and the compact dimensions support VESA mounting options for space-optimized deployments. The system's efficient thermal design maintains stable operation within its small enclosure, making it suitable for enclosed spaces with limited airflow.
- Width
- 6.50" (165 mm)
- Depth
- 7.87" (200 mm)
- Height
- 1.56" (39.50 mm)
- Weight
- 3.53 lb (1600 g)
Highlights
- Intel Celeron 12th Gen 7305 1.10 GHz Penta-core processor
- Supports up to 64 GB DDR5 memory across two slots
- Eight USB ports including USB 3.2 Gen 1 and Gen 2
- Dual Ethernet with 2.5 Gigabit and Gigabit connectivity
- Multiple video outputs: HDMI, DisplayPort, and VGA
- Three M.2 interfaces for NVMe storage expansion
- Compact slim PC form factor: 1.56" H × 6.50" W × 7.87" D
- Supports Windows 10, Windows 11, and Linux operating systems
- 90W power supply with 120V/230V input compatibility
- Energy Star certified for energy efficiency
Specifications
| Specifications | |
|---|---|
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | DS50U |
| Brand Name | Shuttle |
| Product Line | XPC slim |
| Product Series | DS50U |
| Product Name | XPC slim DS50U Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Celeron |
| Processor Generation | 12th Gen |
| Processor Model | 7305 |
| Processor Core | Penta-core (5 Core) |
| Processor Speed | 1.10 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| Display & Graphics | |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of 2.5" Bays | 1 |
| Number of M.2 Interfaces | 3 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Number of SATA Interfaces | 1 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Windows 10 x64,Windows 11 x64,Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 90 W |
| Thermal Design Power | 15 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Slim PC |
| Height | 1.56" (39.50 mm) |
| Width | 6.50" (165 mm) |
| Depth | 7.87" (200 mm) |
| Weight (Approximate) | 3.53 lb (1600 g) |
| Miscellaneous | |
| Energy Star | Yes |
User Manual
FAQ
What processor does the Shuttle DS50U barebone system include?
The DS50U comes with an Intel Celeron 12th Gen 7305 processor. This is a Penta-core (5-core) CPU operating at 1.10 GHz with 64-bit processing capability. The 12th Gen architecture provides improved performance efficiency compared to previous generations, making it suitable for everyday computing tasks and light business applications.
How much memory can this barebone system support?
This system supports up to 64 GB of DDR5 SDRAM memory across two available slots. The memory operates at DDR5-4800/PC5-38400 speeds, providing increased bandwidth over DDR4 technology. This memory capacity supports multitasking requirements for most business applications and ensures responsive system performance.
What storage options are available on the DS50U?
The DS50U provides multiple storage interfaces including one Serial ATA/600 port for traditional drives and three M.2 interfaces that support NVMe storage devices. This combination allows for flexible storage configurations, from cost-effective SATA drives to high-performance NVMe SSDs. The system also includes one 2.5-inch expansion bay for additional storage.
What connectivity features does this slim PC offer?
Connectivity includes eight USB ports (four USB 3.2 Gen 1 and two USB 3.2 Gen 2), dual Ethernet ports with both 2.5 Gigabit and Gigabit capabilities, HDMI and DisplayPort video outputs, plus a VGA port for legacy display compatibility. This comprehensive connectivity suite supports various peripherals and display configurations for different deployment scenarios.
Which operating systems are compatible with this barebone system?
The DS50U supports Windows 10 x64, Windows 11 x64, and various Linux distributions. This operating system flexibility allows organizations to deploy the platform with their preferred software environment. The system is ready for OS installation, providing a blank canvas for customized software configurations.
What are the physical dimensions and form factor of this system?
The DS50U features a slim PC form factor measuring 1.56 inches in height, 6.50 inches in width, and 7.87 inches in depth (39.50 × 165 × 200 mm). Weighing approximately 3.53 pounds, its compact design enables installation in space-constrained environments. The black chassis supports professional deployment in business settings with optional mounting capabilities.
