Shuttle DS50U3 XPC slim Barebone System - Core i3-1315U 13th Gen - DDR5-5200 - 2. 5GbE - Slim PC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the DS50U3 is Intel's Core i3-1315U processor, a 13th Gen dual-core CPU with a base clock of 1.20 GHz and turbo boost up to 4.50 GHz. This 64-bit processor provides efficient performance for everyday computing tasks while maintaining low power consumption.
The system architecture supports DDR5 memory technology at DDR5-5200 speeds, offering faster data transfer rates compared to previous generations. Storage flexibility comes from three M.2 interfaces supporting NVMe drives and one SATA interface for traditional storage devices.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The DS50U3 combines modern hardware specifications with exceptional connectivity in a compact form factor. This barebone system eliminates the bulk of traditional desktops while providing the essential components for building a capable workstation.
Advanced Connectivity

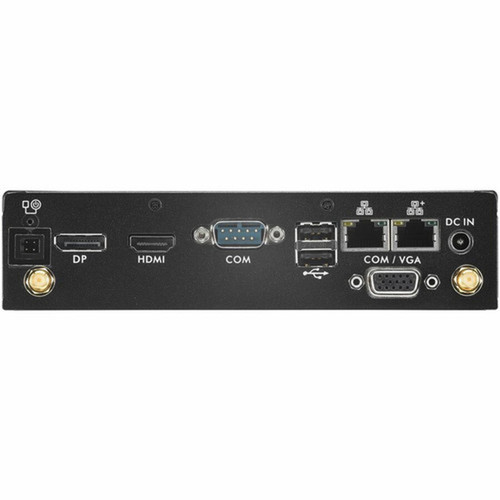

Dual network ports with 2.5 Gigabit Ethernet support ensure fast wired connections, while eight USB ports (including USB 3.2 Gen 2) provide ample peripheral connectivity.
- 2 x RJ-45 ports
- 8 total USB ports
- HDMI, DisplayPort, VGA outputs
Modern Memory Support
DDR5 memory technology delivers improved bandwidth and efficiency compared to DDR4, with support for up to 64 GB of RAM to handle demanding applications.
- DDR5-5200 speeds
- Up to 64 GB capacity
- Enhanced system responsiveness
Deployment / Use Cases
The Shuttle DS50U3's compact dimensions and versatile connectivity make it suitable for various deployment scenarios where space is at a premium. The system's slim profile allows for placement in areas where traditional desktops would be impractical.
Common applications include digital signage displays, point-of-sale systems, thin client deployments, and office workstations in space-constrained environments. The system's support for Windows 10, Windows 11, and Linux operating systems provides flexibility for different software requirements.
Digital Signage Solution
The slim form factor and multiple display outputs make this system ideal for driving digital signage displays in retail, hospitality, or corporate environments.
Space-Efficient Workstation
With its compact footprint, the DS50U3 serves as a capable office workstation that minimizes desk space usage while providing modern computing performance.
Physical Profile
Measuring just 1.56" (39.50 mm) in height, 6.50" (165 mm) in width, and 7.87" (200 mm) in depth, the DS50U3 occupies minimal space while providing full desktop functionality. The slim PC form factor allows for placement in tight spaces or mounting behind displays.
Weighing approximately 3.53 lb (1600 g), the system is easily portable for deployment across multiple locations. The black finish provides a professional appearance suitable for business environments. The Energy Star certification indicates energy-efficient operation that can help reduce power consumption in extended deployments.
- Width
- 6.50" (165 mm)
- Depth
- 7.87" (200 mm)
- Height
- 1.56" (39.50 mm)
- Weight
- 3.53 lb (1600 g)
Highlights
- Intel Core i3-1315U 13th Gen processor with dual-core design and 4.50 GHz turbo speed
- Supports up to 64 GB of DDR5 memory at DDR5-5200 speeds for enhanced performance
- Three M.2 interfaces and one SATA interface provide flexible storage options
- Dual network ports with 2.5 Gigabit Ethernet support for high-speed wired connectivity
- Eight USB ports including USB 3.2 Gen 2 for fast peripheral connections
- Multiple display outputs: HDMI, DisplayPort, and VGA for versatile monitor support
- Compact slim PC form factor measuring just 1.56" height for space-constrained deployments
- Supports Windows 10, Windows 11, and Linux operating systems for flexibility
- 90 W power supply with 120V/230V input compatibility for global deployment
- Energy Star certified for energy-efficient operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | DS50U3 |
| Brand Name | Shuttle |
| Product Line | XPC slim |
| Product Series | DS50U |
| Product Model | DS50U3 |
| Product Name | XPC slim DS50U3 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i3 |
| Processor Generation | 13th Gen |
| Processor Model | i3-1315U |
| Processor Core | Dual-core (2 Core) |
| Processor Speed | 1.20 GHz |
| Maximum Turbo Speed | 4.50 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5200/PC5-41600 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| Display & Graphics | |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 3 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Number of SATA Interfaces | 1 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Windows 10 x64,Windows 11 x64,Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Slim PC |
| Height | 1.56" (39.50 mm) |
| Width | 6.50" (165 mm) |
| Depth | 7.87" (200 mm) |
| Weight (Approximate) | 3.53 lb (1600 g) |
| Miscellaneous | |
| Energy Star | Yes |
User Manual
FAQ
What processor does the Shuttle DS50U3 barebone system include?
The DS50U3 comes with an Intel Core i3-1315U 13th Gen processor installed. This is a dual-core CPU with a base clock speed of 1.20 GHz that can turbo boost up to 4.50 GHz. The processor supports 64-bit processing and provides efficient performance for everyday computing tasks while maintaining good power efficiency.
How much memory can I install in this barebone system?
The Shuttle DS50U3 supports up to 64 GB of DDR5 SDRAM memory. The system uses DDR5-5200/PC5-41600 memory modules, which offer faster data transfer rates compared to previous DDR4 technology. This memory capacity allows the system to handle multiple applications simultaneously and work with memory-intensive software.
What storage options are available with the DS50U3?
This barebone system provides multiple storage interfaces including three M.2 slots that support NVMe drives for high-speed storage and one SATA interface for traditional hard drives or SSDs. The storage controllers support both Serial ATA/600 and NVMe protocols, giving you flexibility to choose the storage configuration that best meets your performance and capacity requirements.
What networking capabilities does this system offer?
The DS50U3 features dual Ethernet ports with support for both 2.5 Gigabit Ethernet and standard Gigabit Ethernet. This provides fast wired network connectivity for data transfer and network access. The 2.5GbE capability offers higher bandwidth than standard Gigabit Ethernet, which can be beneficial for network-intensive applications or environments with high-speed network infrastructure.
Which operating systems are compatible with this barebone system?
The Shuttle DS50U3 is compatible with Windows 10 x64, Windows 11 x64, and various Linux distributions. As a barebone system, it does not come with an operating system pre-installed, allowing you to install your preferred OS. This compatibility gives you flexibility to deploy the system in different environments with varying software requirements.
What are the physical dimensions of the DS50U3?
The system measures 1.56 inches (39.50 mm) in height, 6.50 inches (165 mm) in width, and 7.87 inches (200 mm) in depth. This compact slim PC form factor makes it suitable for installations where space is limited. The system weighs approximately 3.53 pounds (1600 grams), making it relatively lightweight and portable for deployment across different locations.
