Shuttle DS50U7 XPC slim Barebone System - Intel Core i7-1355U 13th Gen Dual-core 1. 70 GHz - Slim PC - 64 GB DDR5 - 8 USB Ports
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Manufacturer, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Processor Architecture
The Intel Core i7-1355U processor features 2 performance cores with Intel Thread Director technology, 64-bit processing support, and Intel integrated graphics. The 13th Gen architecture delivers improved power efficiency while maintaining strong single-threaded performance.
Memory & Storage Configuration
Two DDR5 memory slots support modules up to DDR5-5200/PC5-41600 speeds. Storage options include one SATA interface and three M.2 slots for NVMe SSDs, providing flexible capacity and performance combinations.
Key Product Advantages
This barebone system combines modern computing technology with a space-efficient design that fits demanding business applications. The compact footprint and comprehensive connectivity make it suitable for office deployments, digital signage, or as a dedicated application server.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Comprehensive Connectivity, Display Flexibility.
Comprehensive Connectivity
Eight USB ports include both USB 3.2 Gen 1 and Gen 2 interfaces for connecting peripherals, storage, and accessories. Dual Ethernet ports with 2.5 Gigabit capability support network-intensive applications.
Display Flexibility
HDMI, DisplayPort, and VGA outputs allow connection to multiple monitor configurations, supporting various display technologies from legacy to modern digital interfaces.
Deployment / Use Cases
The DS50U7's compact dimensions and versatile connectivity make it ideal for space-constrained environments where full computing capability is required. The system can be configured as a dedicated workstation, digital signage controller, or network appliance.
Businesses can deploy these units as point-of-sale systems, conference room computers, or departmental servers. The slim form factor allows for mounting behind displays or in compact enclosures while maintaining access to essential ports and expansion capabilities.
Office Workstation
Configure with Windows 10/11 or Linux, add memory and storage, and deploy as a daily productivity system with multiple display support and fast network connectivity.
Digital Signage Controller
The compact size and multiple video outputs make this system suitable for driving digital displays in retail, corporate, or public information applications.

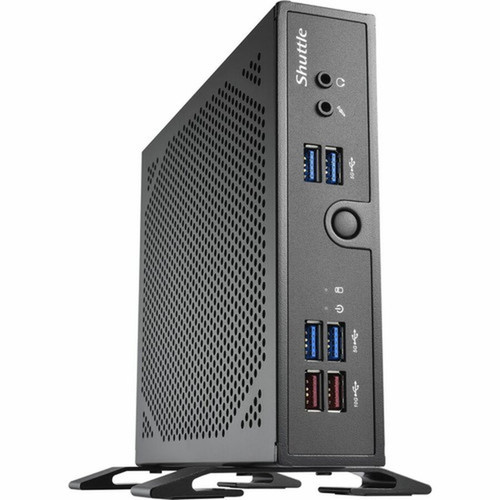

Physical Profile
The black Slim PC chassis measures 6.50 inches wide by 7.87 inches deep by 1.56 inches high (165 × 200 × 39.5 mm), with a weight of approximately 3.53 pounds (1600 g). This compact footprint allows installation in tight spaces while providing adequate ventilation and component access.
The Energy Star certification indicates power-efficient operation suitable for always-on deployments. The slim profile facilitates placement on desks, mounting behind monitors, or installation in rack enclosures with appropriate mounting hardware.
- Width
- 6.50" (165 mm)
- Depth
- 7.87" (200 mm)
- Height
- 1.56" (39.50 mm)
- Weight
- 3.53 lb (1600 g)
Highlights
- Intel Core i7-1355U 13th Gen dual-core processor with 1.70 GHz base speed and 5 GHz turbo
- Supports up to 64 GB DDR5-5200 memory via two accessible slots
- Three M.2 interfaces and one SATA port for flexible storage configuration

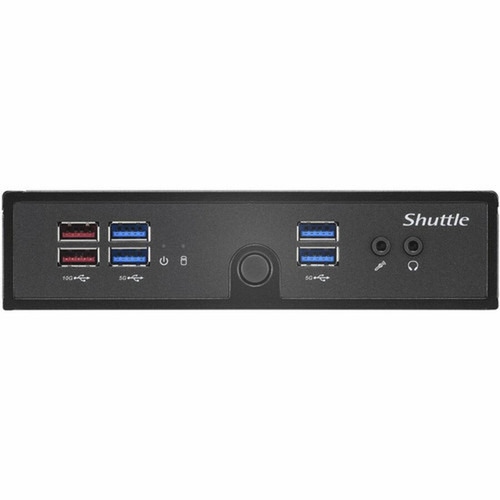

- Eight USB ports including USB 3.2 Gen 1 and Gen 2 for peripheral connectivity
- Dual Ethernet ports with 2.5 Gigabit and Gigabit capability

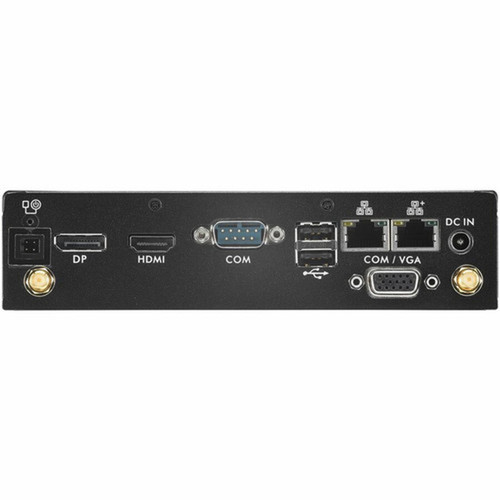

- HDMI, DisplayPort, and VGA video outputs for multiple display setups
- Slim PC form factor measuring just 1.56" height for space-constrained deployments
- Supports Windows 10, Windows 11, and Linux operating systems
- 90 W power supply with 120/230 V AC input for global deployment
- Energy Star certified for power-efficient operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | DS50U7 |
| Brand Name | Shuttle |
| Product Line | XPC slim |
| Product Series | DS50U |
| Product Model | DS50U7 |
| Product Name | XPC slim DS50U7 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Generation | 13th Gen |
| Processor Model | i7-1355U |
| Processor Core | Dual-core (2 Core) |
| Processor Speed | 1.70 GHz |
| Maximum Turbo Speed | 5 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5200/PC5-41600 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 3 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Number of SATA Interfaces | 1 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Windows 10 x64,Windows 11 x64,Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Slim PC |
| Height | 1.56" (39.50 mm) |
| Width | 6.50" (165 mm) |
| Depth | 7.87" (200 mm) |
| Weight (Approximate) | 3.53 lb (1600 g) |
| Miscellaneous | |
| Energy Star | Yes |
User Manual
FAQ
What components do I need to add to complete this barebone system?
To complete the Shuttle DS50U7 barebone system, you will need to add DDR5 memory modules (up to 64 GB total), storage devices (M.2 NVMe SSDs or 2.5" SATA drives), and an operating system. The system includes the chassis, motherboard, power supply, and cooling, but requires these additional components to become a functional computer.
What operating systems are supported by the DS50U7?
The Shuttle DS50U7 supports Windows 10 x64, Windows 11 x64, and various Linux distributions. The hardware compatibility includes the necessary drivers for Intel graphics, networking, and chipset components within these operating system environments.
How much memory can I install in this system?
The DS50U7 supports up to 64 GB of DDR5 memory using two memory slots. The memory standard is DDR5-5200/PC5-41600, and the system utilizes dual-channel architecture when identical modules are installed in both slots for optimal memory performance.
What types of storage devices can I use with this barebone system?
Storage options include three M.2 interfaces for NVMe SSDs and one SATA interface for 2.5" drives. The controller supports both Serial ATA/600 and NVMe protocols, allowing you to mix and match storage types based on capacity and performance requirements.
What networking capabilities does the DS50U7 provide?
The system features two RJ-45 Ethernet ports with support for both 2.5 Gigabit Ethernet and standard Gigabit Ethernet. This dual-port configuration allows for network teaming, separate management and data networks, or connection to different network segments.
Can this slim PC be mounted or installed in restricted spaces?
Yes, the compact dimensions (6.50" W × 7.87" D × 1.56" H) and slim PC form factor make the DS50U7 suitable for mounting behind displays, in small enclosures, or on walls using VESA or custom mounting solutions. The lightweight design (3.53 lb) further facilitates flexible installation in space-constrained environments.
