Shuttle NC40U XPC nano Barebone System - Intel Celeron 7305 Penta-core 1.10 GHz - 64 GB DDR4 Max - Gigabit Ethernet - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The NC40U platform centers on Intel's Celeron 7305 processor with five execution cores operating at 1.10 GHz base frequency. This compute foundation pairs with Intel integrated graphics that share system DDR4 memory, eliminating the need for discrete graphics in many deployment scenarios.
Memory architecture supports dual-channel DDR4-3200 modules across two SO-DIMM slots, accommodating up to 64 GB total capacity. Storage connectivity includes both Serial ATA/600 and NVMe interfaces, with hardware RAID 0 and 1 support for data protection or performance configurations.

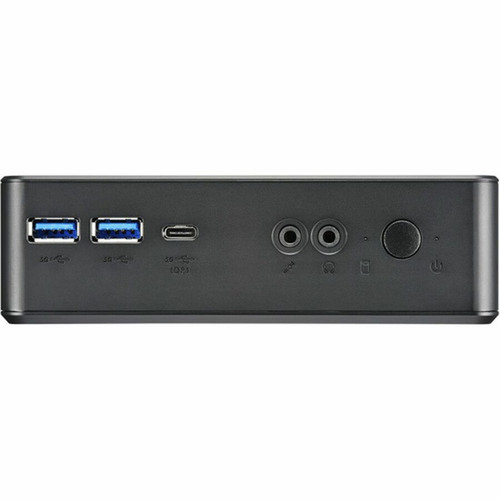

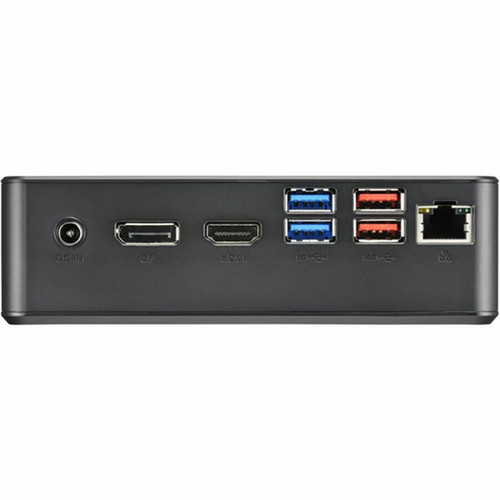

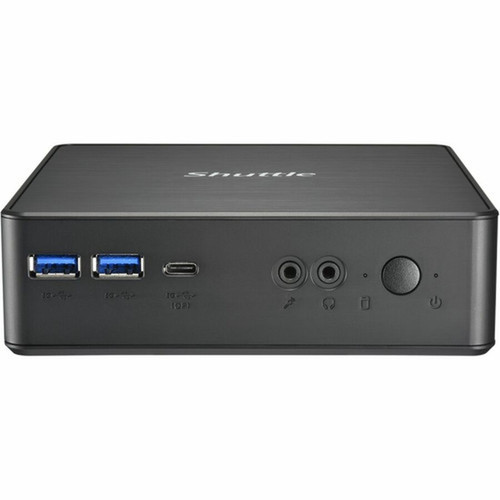

Connectivity features Gigabit Ethernet for network access, HDMI video output, and seven USB ports including both USB 3.2 Gen 1 and Gen 2 interfaces. The front panel includes a USB Type-C port for modern peripheral connections.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The XPC nano NC40U provides deployment versatility through its barebone approach and comprehensive connectivity. The system supports Windows 10 x64, Windows 11 x64, and Linux operating systems, accommodating diverse software environments.
Compact Form Factor
The 5.59-inch square footprint and 1.65-inch height enable deployment where space is premium, from retail kiosks to digital signage mounts.
- 142 mm square footprint
- 42 mm profile height
- 400 g lightweight construction
Flexible Configuration
As a barebone system, the NC40U allows integrators to select memory, storage, and operating system components that match specific application requirements.
- User-selectable DDR4 memory
- SATA or NVMe storage options
- Windows or Linux OS compatibility
Deployment / Use Cases
The Shuttle NC40U addresses computing needs where physical space constraints exist alongside performance requirements. Its 65-watt power envelope and Energy Star certification support energy-conscious deployments.
Application environments include point-of-sale systems, industrial control interfaces, conference room PCs, and embedded computing solutions. The lack of wireless LAN simplifies deployments in secured environments while maintaining wired network reliability.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Digital Signage & Kiosks
The compact dimensions and HDMI output make this system suitable for retail displays, information kiosks, and menu boards where minimal hardware footprint is essential.
Thin Client & Office Workstations
With Gigabit Ethernet and multiple USB ports, the NC40U can serve as a network-attached workstation for productivity applications in office or educational settings.
Physical Profile

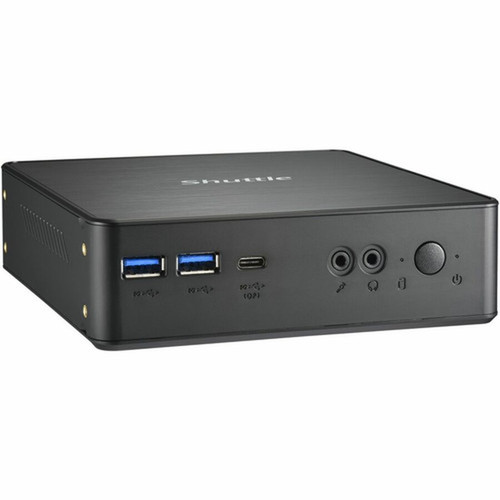

The black chassis measures 5.59 inches wide by 5.59 inches deep by 1.65 inches high (142 x 142 x 42 mm), presenting a compact square footprint. Weighing approximately 14.11 ounces (400 grams), the system supports various mounting orientations including VESA-compatible installations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.65" (42 mm), 5.59" (142 mm), 5.59" (142 mm), 14.11 oz (400 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.59" (142 mm)
- Depth
- 5.59" (142 mm)
- Height
- 1.65" (42 mm)
- Weight
- 14.11 oz (400 g)
Highlights
- Intel Celeron 7305 penta-core processor at 1.10 GHz
- Supports up to 64 GB DDR4-3200 memory across two slots
- Serial ATA/600 and NVMe storage controllers with RAID 0/1 support
- Gigabit Ethernet connectivity for reliable network access
- Seven USB ports including USB 3.2 Gen 1 and Gen 2 interfaces
- Front-panel USB Type-C port for modern peripherals
- HDMI video output for display connectivity
- Compact 5.59" x 5.59" x 1.65" (142 x 142 x 42 mm) footprint
- Supports Windows 10/11 x64 and Linux operating systems
- 65-watt maximum power supply with Energy Star certification
Specifications
| Specifications | |
|---|---|
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | NC40U |
| Brand Name | Shuttle |
| Product Line | XPC nano |
| Product Series | NC40U |
| Product Model | NC40U |
| Product Name | XPC nano Barebone NC40U |
| Product Type | Barebone System |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Celeron |
| Processor Model | 7305 |
| Processor Core | Penta-core (5 Core) |
| Processor Speed | 1.10 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | No |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1x USB 3.2 Gen 1, Type C |
| Network (RJ-45) | Yes |
| Operating System | |
| Operating System Supported | Windows 10 x64,Windows 11 x64,Linux |
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 1.65" (42 mm) |
| Width | 5.59" (142 mm) |
| Depth | 5.59" (142 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
| Miscellaneous | |
| Energy Star | Yes |
User Manual
FAQ
What processor does the Shuttle NC40U use?
The system features an Intel Celeron 7305 processor with five execution cores operating at a base frequency of 1.10 GHz. This processor provides efficient computing performance for everyday applications while maintaining low power consumption and thermal output.
How much memory can the NC40U support?
The barebone system supports up to 64 GB of DDR4 SDRAM across two memory slots. It uses the DDR4-3200/PC4-25600 memory standard, providing good bandwidth for processor and graphics operations. Memory modules are not included, allowing integrators to select capacity based on application needs.
What storage interfaces are available?
The NC40U includes both Serial ATA/600 and NVMe storage controllers. These interfaces support traditional 2.5-inch SATA drives as well as faster NVMe solid-state drives. The system also provides hardware RAID support for levels 0 (striping) and 1 (mirroring) when using compatible storage configurations.
What operating systems are compatible?
The system supports Windows 10 x64, Windows 11 x64, and various Linux distributions. This operating system flexibility allows deployment in diverse environments from commercial Windows-based applications to embedded Linux solutions. Drivers for supported operating systems are available from Shuttle.
What connectivity options does it include?
Connectivity features Gigabit Ethernet for wired networking, HDMI video output, and seven USB ports. The USB configuration includes four USB 3.2 Gen 1 ports, two USB 3.2 Gen 2 ports, and one front-panel USB Type-C port operating at USB 3.2 Gen 1 speeds. The system does not include built-in wireless LAN.
How compact is the NC40U system?
The system measures 5.59 inches wide by 5.59 inches deep by 1.65 inches high (142 x 142 x 42 mm), creating a compact square footprint suitable for space-constrained installations. Weighing approximately 14.11 ounces (400 grams), it supports various mounting options including VESA-compatible installations for display integration.
