Shuttle NC40U3 XPC Nano Barebone Mini PC - Intel Core i3-1215U 12th Gen Hexa-core - Up to 64GB DDR4 - 7x USB - Gigabit Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the NC40U3 sits Intel's 12th Gen Core i3-1215U processor, featuring six execution cores that operate at a 1.20 GHz base frequency with turbo boost capability up to 4.40 GHz. This CPU architecture delivers efficient multitasking performance while maintaining thermal efficiency within the compact chassis.
Memory configuration supports dual-channel DDR4-3200 modules up to 64GB total capacity, ensuring smooth operation for memory-intensive applications. Storage flexibility comes through both Serial ATA/600 and NVMe controller support, with RAID 0 and 1 functionality available for data redundancy or performance optimization.
Relevant factors for this section include Processor Type, Processor Generation, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The NC40U3 excels in deployment scenarios where physical space is at a premium but full computing capability remains essential. Its compact design doesn't compromise on connectivity or expansion potential, offering a complete mini PC solution ready for memory, storage, and operating system customization.
Space-Efficient Design
Measuring just 5.59" square and 1.65" tall, the NC40U3 occupies minimal desk space while providing full desktop functionality. The compact footprint enables flexible placement in retail kiosks, classroom stations, or office workstations.
- 5.59" square footprint
- 1.65" height profile
- 14.11 oz lightweight construction
Modern Connectivity Suite
Seven USB ports including Type-C connectivity ensure compatibility with contemporary peripherals and storage devices. Gigabit Ethernet provides reliable wired networking, while HDMI output supports display connectivity up to 4K resolution.
- USB 3.2 Gen 1 & Gen 2 ports

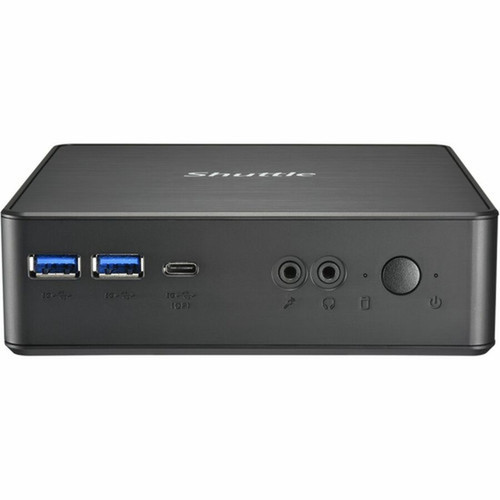

- Front-panel Type-C convenience
- Dedicated Gigabit Ethernet
Deployment / Use Cases
The NC40U3 barebone platform serves as an ideal foundation for customized computing solutions across multiple environments. Its compact size and capable specifications make it suitable for space-constrained deployments where traditional desktop systems would be impractical.
In office settings, the system functions efficiently as a general productivity workstation, handling document processing, spreadsheet management, and web applications. For digital signage applications, the platform drives content displays with reliable performance and minimal physical presence. Educational institutions benefit from the system's compact form factor in computer labs or library stations, while home users appreciate the discreet design for media centers or compact office setups.
Office Productivity Station
Configured with Windows 11 and adequate memory, the NC40U3 delivers responsive performance for office applications, email, web browsing, and video conferencing. The compact design maximizes usable desk space in crowded work environments.
Digital Signage Controller
With HDMI output and reliable Intel UHD Graphics, the system drives digital displays for retail promotions, informational kiosks, or wayfinding applications. The small footprint allows discreet mounting behind monitors or within confined enclosures.
Physical Profile
The NC40U3 presents a minimalist black chassis measuring 5.59" wide by 5.59" deep by 1.65" tall (142 x 142 x 42 mm), with a weight of approximately 14.11 ounces (400 grams). This compact form factor enables versatile placement options including vertical orientation with optional mounting accessories. The clean black finish maintains professional aesthetics suitable for business environments, while the lightweight construction facilitates easy relocation between deployment sites.
- Width
- 5.59" (142 mm)
- Depth
- 5.59" (142 mm)
- Height
- 1.65" (42 mm)
- Weight
- 14.11 oz (400 g)
Highlights
- Intel Core i3-1215U 12th Gen hexa-core processor with 4.40 GHz turbo boost
- Supports up to 64GB DDR4-3200 memory for demanding multitasking
- Compact 5.59" square footprint ideal for space-constrained deployments
- Seven USB ports including USB 3.2 Gen 1, Gen 2, and Type-C connectivity
- Gigabit Ethernet provides reliable wired networking performance
- Serial ATA/600 and NVMe storage controller support with RAID 0/1 capability
- Compatible with Windows 10, Windows 11, and Linux operating systems
- Energy Star certified for reduced power consumption
- HDMI output supports high-resolution display connectivity
- Black chassis maintains professional aesthetics for business environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | NC40U3 |
| Brand Name | Shuttle |
| Product Line | XPC nano |
| Product Series | NC40U |
| Product Model | NC40U3 |
| Product Name | XPC nano Barebone NC40U |
| Product Type | Barebone System |
| Processor | |
| Processor Type | Core i3 |
| Processor Generation | 12th Gen |
| Processor Model | i3-1215U |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 1.20 GHz |
| Maximum Turbo Speed | 4.40 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | No |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1x USB 3.2 Gen 1, Type C |
| Network (RJ-45) | Yes |
| Operating System | |
| Operating System Supported | Windows 10 x64,Windows 11 x64,Linux |
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 1.65" (42 mm) |
| Width | 5.59" (142 mm) |
| Depth | 5.59" (142 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
| Miscellaneous | |
| Energy Star | Yes |
User Manual
FAQ
What processor does the Shuttle NC40U3 use?
The NC40U3 features Intel's 12th Generation Core i3-1215U processor. This hexa-core CPU operates at a base frequency of 1.20 GHz with turbo boost capability up to 4.40 GHz, providing efficient performance for office productivity, digital signage, and general computing tasks within the compact form factor.
How much memory can I install in this barebone system?
The NC40U3 supports up to 64GB of DDR4 SDRAM using the DDR4-3200/PC4-25600 memory standard. This dual-channel memory architecture ensures smooth multitasking performance for business applications, allowing configuration with compatible SODIMM modules to match specific workload requirements.
What storage options are available with this mini PC?
Storage connectivity includes both Serial ATA/600 and NVMe controllers, supporting traditional 2.5" SATA drives and faster NVMe solid-state drives. The system also provides RAID 0 and RAID 1 functionality for either performance striping or data mirroring configurations, offering flexibility for different storage priorities.
What operating systems are compatible with the NC40U3?
This barebone system supports Windows 10 x64, Windows 11 x64, and various Linux distributions. The platform provides necessary drivers for Intel graphics, network connectivity, and chipset components, allowing deployment with preferred operating systems for business, education, or specialized applications.
How many USB ports does the system include?
The NC40U3 provides seven USB ports total: four USB 3.2 Gen 1 ports, two USB 3.2 Gen 2 ports, and one front-panel USB Type-C port (USB 3.2 Gen 1). This connectivity suite supports simultaneous connection of keyboards, mice, external storage, and other peripherals without requiring additional hubs.
What are the physical dimensions of this barebone system?
The NC40U3 measures 5.59 inches wide by 5.59 inches deep by 1.65 inches tall (142 x 142 x 42 mm), with a weight of approximately 14.11 ounces (400 grams). This compact square footprint enables placement in confined spaces while maintaining full desktop functionality for various deployment scenarios.
