Shuttle NC40U7 XPC nano Barebone System - Intel Core i7-1255U 12th Gen Deca-core - 64GB DDR4 - 7x USB - Gigabit Ethernet - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the NC40U7 is the Intel Core i7-1255U, a 12th Gen mobile processor featuring 10 cores (2 Performance-cores and 8 Efficient-cores) with a base clock of 1.70 GHz and turbo boost up to 4.70 GHz. This CPU architecture balances performance with power efficiency, making it well-suited for always-on applications.
The system supports up to 64 GB of DDR4-3200 memory via two SO-DIMM slots, providing ample headroom for multitasking and application demands. Storage flexibility is achieved through dual M.2 interfaces supporting NVMe drives and a SATA port for additional storage, with hardware RAID 0/1 support for data redundancy or performance striping.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Shuttle XPC nano NC40U7 combines desktop-grade performance with a footprint smaller than most hardcover books. Its comprehensive connectivity suite eliminates the need for external docks or adapters in most deployment scenarios.
Comprehensive I/O

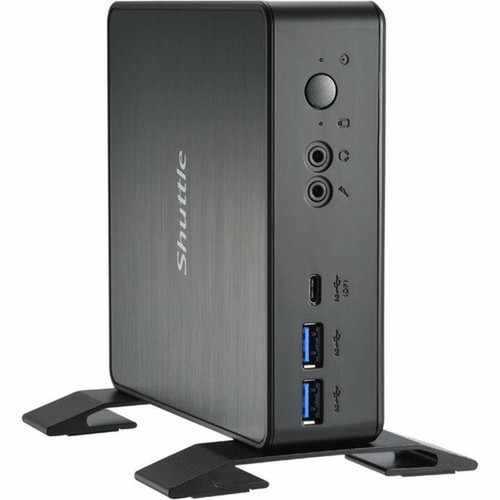

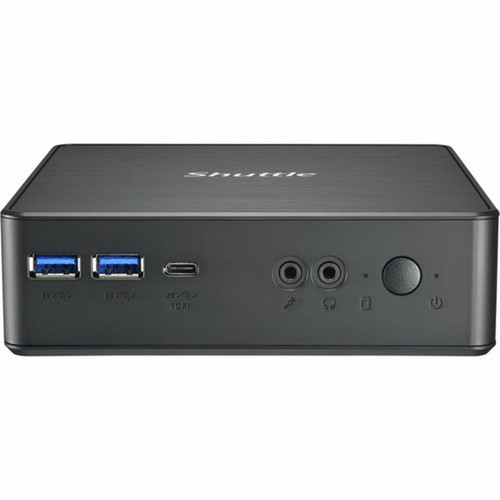

With 7 USB ports including high-speed USB 3.2 Gen 2 and a front-panel USB Type-C port with DisplayPort alt mode, the system connects to peripherals, storage, and displays without additional adapters.
- 4x USB 3.2 Gen 1 ports
- 2x USB 3.2 Gen 2 ports
- Front USB-C with DisplayPort 1.4a
Flexible Display Outputs

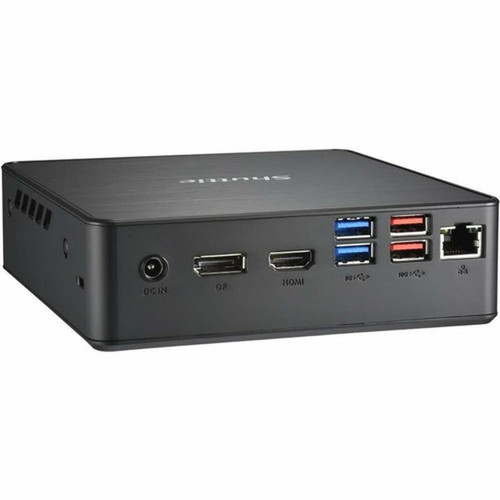

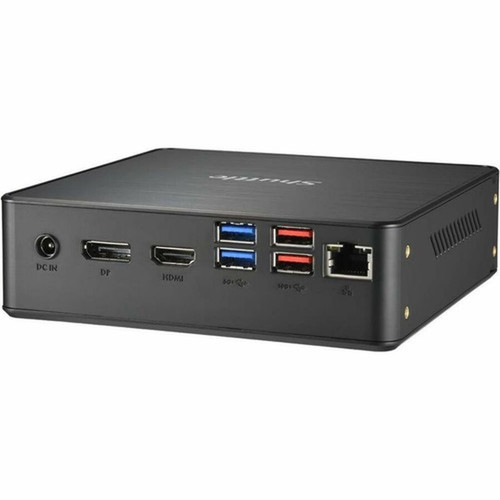

Dual display support via HDMI and DisplayPort interfaces enables multi-monitor setups for digital signage, control rooms, or productivity workstations.
- HDMI output
- DisplayPort output
- USB-C DisplayPort alt mode
Deployment / Use Cases
The NC40U7's compact dimensions and versatile connectivity make it suitable for embedded applications where space is at a premium. Its fanless design (when configured with compatible components) enables silent operation in quiet environments.
Common deployment scenarios include digital signage controllers, interactive kiosks, thin client replacements, point-of-sale systems, and edge computing nodes. The system's Gigabit Ethernet ensures reliable network connectivity for cloud-based applications and local network storage access.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Digital Signage & Kiosks
Mount directly behind displays using VESA brackets for clean installations without visible cabling or separate computer enclosures.
Office & Productivity
Serve as a compact workstation for general office applications, web browsing, and document processing with support for Windows 10/11 or Linux distributions.
Physical Profile
The NC40U7 features a matte black aluminum chassis that dissipates heat efficiently while maintaining a professional appearance. Measuring 5.59" (142 mm) wide, 5.59" (142 mm) deep, and just 1.65" (42 mm) tall, the system occupies minimal desk or mounting space. At approximately 14.11 ounces (400 grams), it's lightweight enough for wall-mounting or portable deployments.
- Width
- 5.59" (142 mm)
- Depth
- 5.59" (142 mm)
- Height
- 1.65" (42 mm)
- Weight
- 14.11 oz (400 g)
Highlights
- Intel Core i7-1255U 12th Gen deca-core processor with 1.70 GHz base clock and 4.70 GHz turbo boost
- Supports up to 64 GB of DDR4-3200 memory for demanding applications and multitasking
- 7 USB ports including USB 3.2 Gen 2 and front-panel USB-C with DisplayPort 1.4a support
- Dual M.2 interfaces for NVMe storage with hardware RAID 0/1 support
- Gigabit Ethernet for reliable high-speed network connectivity
- HDMI and DisplayPort outputs for dual display configurations
- Compact 5.59" square footprint ideal for space-constrained deployments
- Supports Windows 10, Windows 11, and Linux operating systems
- 65 W power supply for energy-efficient operation
- Energy Star certified for reduced power consumption
Specifications
| Specifications | |
|---|---|
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | NC40U7 |
| Brand Name | Shuttle |
| Product Line | XPC nano |
| Product Series | NC40U |
| Product Model | NC40U7 |
| Product Name | XPC nano Barebone NC40U7 |
| Product Type | Barebone System |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Generation | 12th Gen |
| Processor Model | i7-1255U |
| Processor Core | Deca-core (10 Core) |
| Processor Speed | 1.70 GHz |
| Maximum Turbo Speed | 4.70 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1x USB 3.2 Gen 1, Type C supports DisplayPort 1.4a |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Number of SATA Interfaces | 1 |
| Operating System | |
| Operating System Supported | Windows 10,Windows 11,Linux |
| Power Description | |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 65 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 1.65" (42 mm) |
| Width | 5.59" (142 mm) |
| Depth | 5.59" (142 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
| Miscellaneous | |
| Energy Star | Yes |
User Manual
FAQ
What processor does the Shuttle NC40U7 use?
The NC40U7 features an Intel Core i7-1255U 12th Generation processor. This deca-core (10-core) CPU operates at a base frequency of 1.70 GHz with turbo boost capability up to 4.70 GHz. It combines 2 Performance-cores and 8 Efficient-cores to balance computational power with energy efficiency for various computing tasks.
How much memory can this barebone system support?
The Shuttle XPC nano NC40U7 supports up to 64 GB of DDR4 SDRAM using two SO-DIMM slots. It utilizes the DDR4-3200/PC4-25600 memory standard, providing high-speed data transfer rates while maintaining low power consumption typical of DDR4 technology.
What storage options are available on the NC40U7?
This system offers flexible storage configuration with two M.2 interfaces supporting NVMe solid-state drives and one SATA interface for additional storage devices. The storage controller supports hardware RAID 0 and RAID 1 configurations, enabling either performance striping or data mirroring for redundancy.
What operating systems are compatible with this barebone system?
The Shuttle NC40U7 is compatible with Windows 10, Windows 11, and various Linux distributions. This broad OS support allows deployment in diverse environments, from commercial Windows-based applications to Linux-powered kiosks, digital signage, or edge computing nodes.
What connectivity options does the NC40U7 provide?
Connectivity includes 7 USB ports (4x USB 3.2 Gen 1, 2x USB 3.2 Gen 2, and 1x front-panel USB Type-C with DisplayPort 1.4a support), Gigabit Ethernet, HDMI and DisplayPort video outputs, and audio connections. This comprehensive I/O suite reduces the need for external adapters in most deployment scenarios.
How compact is the Shuttle XPC nano NC40U7?
The NC40U7 measures just 5.59 inches (142 mm) wide, 5.59 inches (142 mm) deep, and 1.65 inches (42 mm) tall, with a weight of approximately 14.11 ounces (400 grams). This ultra-compact form factor makes it ideal for mounting behind displays, embedding into kiosks, or deploying in space-constrained environments where traditional desktop systems would be impractical.
