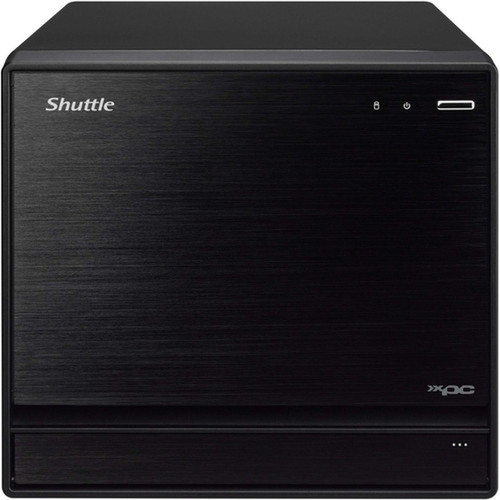

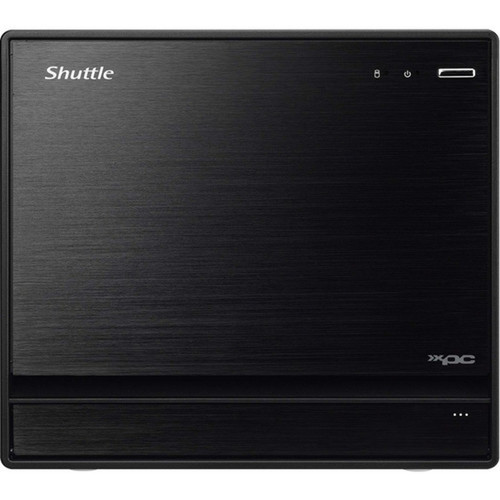

Shuttle SW580R8 XPC Cube Barebone System - LGA-1200 Socket - Intel W580 Chipset - 128GB DDR4-3200500W PSU - Black Aluminum
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This barebone system centers on Intel's W580 chipset, which manages the LGA-1200 socket compatibility with 10th and 11th generation Intel Core, Pentium Gold, Celeron, and Xeon processors. The memory subsystem supports DDR4-3200/PC4-25600 modules, with four DIMM slots allowing configurations up to 128GB total capacity. Storage connectivity includes four Serial ATA/600 interfaces paired with four dedicated 3.5" drive bays for substantial storage expansion.

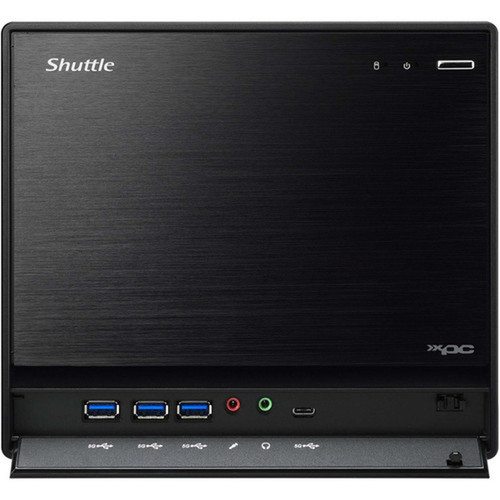

Network performance is enhanced by 2.5 Gigabit Ethernet alongside standard Gigabit Ethernet, providing flexible connectivity options for high-speed data transfer. The system includes two PCI Express expansion slots (one x16 and one x4) for adding dedicated graphics cards, network adapters, or other expansion cards. Rear panel connectivity features HDMI output and multiple USB ports, while the front panel includes a convenient USB 3.2 Gen Type-C port for modern peripheral connections.
Key Product Advantages
The SW580R8 combines compact form factor with substantial expansion capabilities, offering a balanced solution for space-constrained environments that still require robust computing power. Its support for both consumer and workstation-grade processors provides configuration flexibility across different use cases and performance requirements.
Processor Flexibility
Compatible with Intel Core i9, i7, i5, i3, Pentium Gold, Celeron, and Xeon processors through the LGA-1200 socket, allowing tailored performance and budget configurations.
- Wide processor compatibility
- LGA-1200 socket foundation
- Consumer and workstation support
Memory & Storage Scalability
Four DDR4-3200 memory slots support up to 128GB RAM, while four SATA/600 interfaces and 3.5" bays enable substantial storage expansion for data-intensive applications.
- 128GB memory maximum
- DDR4-3200 speed
- Four drive bays
Connectivity Suite
Thirteen USB ports including USB 3.2 Gen 2 and front-panel Type-C, plus 2.5 Gigabit Ethernet provide comprehensive peripheral and network connectivity for modern workflows.
- 13 total USB ports
- 2.5Gb Ethernet
- Front Type-C port
Deployment / Use Cases
The Shuttle XPC Cube's compact dimensions (7.48" H × 8.46" W × 13.07" D) make it ideal for environments where space optimization is crucial. Its black aluminum construction offers both durability and professional aesthetics suitable for office settings, retail point-of-sale stations, or educational computer labs.
With support for Windows 10, Windows 11, and Linux operating systems, the system adapts to various software environments. The combination of processor flexibility, substantial memory support, and multiple expansion options enables deployments ranging from digital signage controllers and thin client hosts to compact workstations for design, engineering, or financial applications. The Energy Star certification further supports deployments where power efficiency contributes to operational cost management.
Compact Office Workstation
Deploy as a space-efficient desktop for general office productivity, accounting, or customer service applications, leveraging the processor flexibility and memory scalability for responsive performance.
Specialized Computing Platform
Utilize the PCI Express expansion slots and storage bays to create dedicated systems for media processing, surveillance recording, or laboratory instrumentation with customized hardware additions.
Physical Profile
The black aluminum chassis measures 7.48 inches in height, 8.46 inches in width, and 13.07 inches in depth (190 × 215 × 332 mm), with a weight of approximately 7.72 pounds (3500 g). This compact footprint allows placement in constrained spaces while maintaining professional appearance. The aluminum construction provides effective heat dissipation alongside structural rigidity, supporting reliable operation in continuous-use scenarios. The design accommodates standard VESA mounting options for further space optimization in wall-mounted or under-desk installations.
- Width
- 8.46" (215 mm)
- Depth
- 13.07" (332 mm)
- Height
- 7.48" (190 mm)
- Weight
- 7.72 lb (3500 g)
Highlights
- LGA-1200 socket supports Intel Core i9, i7, i5, i3, Pentium Gold, Celeron, and Xeon processors
- Intel W580 chipset with support for up to 128GB DDR4-3200 memory across four slots
- Compact black aluminum chassis measuring 7.48" × 8.46" × 13.07" (190 × 215 × 332 mm)
- 500W power supply with dual-voltage input (120V/230V AC) for global deployment flexibility
- 2.5 Gigabit Ethernet and Gigabit Ethernet ports for high-speed network connectivity
- Thirteen USB ports including USB 3.2 Gen 2 and front-panel Type-C for comprehensive peripheral support
- Four Serial ATA/600 interfaces and four 3.5" drive bays for substantial storage expansion
- PCI Express x16 and x4 expansion slots for graphics cards or additional interface cards
- Windows 10, Windows 11, and Linux operating system compatibility
- Energy Star certified for efficient power consumption
Specifications
| Specifications | |
|---|---|
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | SW580R8 |
| Brand Name | Shuttle |
| Product Line | XPC cube |
| Product Model | SW580R8 |
| Product Name | BAREBONE XPC cube SW580R8 |
| Product Type | Barebone System |
| Processor | |
| Processor Socket | Socket LGA-1200 |
| Processor Supported | Core i9,Core i7,Core i5,Core i3,Pentium Gold,Celeron,Xeon |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W580 |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 13 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Number of Onboard USB 2.0 Ports | 1 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | USB 3.2 Gen Type-C port (5 Gbps) |
| Number of SATA Interfaces | 4 |
| Operating System | |
| Operating System Supported | Windows 10,Windows 11,Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 500 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black Aluminum |
| Height | 7.48" (190 mm) |
| Width | 8.46" (215 mm) |
| Depth | 13.07" (332 mm) |
| Weight (Approximate) | 7.72 lb (3500 g) |
| Miscellaneous | |
| Energy Star | Yes |
User Manual
FAQ
What processors are compatible with the Shuttle SW580R8 barebone system?
The SW580R8 supports Intel processors using the LGA-1200 socket, including Core i9, Core i7, Core i5, Core i3, Pentium Gold, Celeron, and Xeon models. This wide compatibility allows configuration from entry-level office systems to high-performance workstations, depending on the selected processor and accompanying components.
How much memory can the SW580R8 system support and at what speed?
This barebone system supports up to 128GB of DDR4 memory across four DIMM slots, operating at DDR4-3200/PC4-25600 speeds. The four-slot configuration enables flexible memory upgrades and dual-channel operation for improved performance in memory-intensive applications.
What storage expansion options are available with this XPC Cube system?
The SW580R8 provides four Serial ATA/600 interfaces and four dedicated 3.5" drive bays for storage expansion. This configuration supports multiple hard drives or SSDs for substantial storage capacity, suitable for data storage, backup solutions, or media libraries in compact form factor deployments.
What networking capabilities does the Shuttle SW580R8 offer?
The system includes both 2.5 Gigabit Ethernet and standard Gigabit Ethernet ports, providing flexible network connectivity options. The 2.5GbE port enables faster data transfers for network-attached storage, server connections, or bandwidth-intensive applications while maintaining backward compatibility with standard Gigabit networks.
What operating systems are supported by this barebone system?
The SW580R8 is compatible with Windows 10, Windows 11, and Linux operating systems. This broad OS support allows deployment in diverse environments, from standard office workstations running Windows to specialized applications utilizing Linux distributions for development, media, or server functions.
What expansion slots are available for adding additional components?
The system includes two PCI Express expansion slots: one PCI Express x16 slot for graphics cards or high-bandwidth adapters, and one PCI Express x4 slot for additional interface cards. These slots enable customization with dedicated graphics, additional network interfaces, storage controllers, or other expansion cards to meet specific application requirements.
