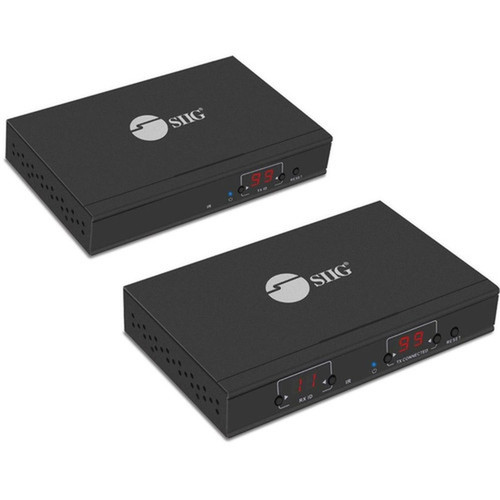

SIIG Full HD HDMI Over IP Extender Kit With Dual Network Ports For Scalable Networked Video Distribution Device Output Input Range RJ-45 CE-H23A11-S2
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- HDMI Over IP Extender with IR - Kit
- 2 x Power Adapters
- IR Blaster Extension Cable and IR Receiver Extension Cable
- 4 x Mounting Ears
- 8 x Screw Kit
- Remote Control
- 2 x 3 Pin Phoenix Connectors
- User Reference Guide
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 393.70 ft (120000 mm)
Graphics Modes: Full HD
Supported Video Modes: 480p,720p,1080i,1080p
Maximum Video Resolution: 1920 x 1080
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 2
Remote (IR) Input: 1
Remote (IR) Output: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Product Color: Black
Transmitter Height: 0.94" (23.88 mm)
Transmitter Width: 3.27" (83.06 mm)
Transmitter Depth: 5.50" (139.70 mm)
Receiver Height: 0.94" (23.88 mm)
Receiver Width: 3.27" (83.06 mm)
Receiver Depth: 5.50" (139.70 mm)
Transmitter Weight (Approximate): 272.2 g
Receiver Weight (Approximate): 272.2 g
Package Contents:
Application/Usage: Shopping Center,Office,Educational Facilities
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
[custom-specifications]
| Specifications | |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H23A11-S2 |
| Manufacturer Website Address | http://www.siig.com |
| Brand Name | SIIG |
| Product Model | CE-H23A11-S2 |
| Product Name | HDMI Over IP Extender with IR - Kit |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 393.70 ft (120000 mm) |
| Video | |
| Graphics Modes | Full HD |
| Supported Video Modes | 480p,720p,1080i,1080p |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 2 |
| Remote (IR) Input | 1 |
| Remote (IR) Output | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Product Color | Black |
| Transmitter Height | 0.94" (23.88 mm) |
| Transmitter Width | 3.27" (83.06 mm) |
| Transmitter Depth | 5.50" (139.70 mm) |
| Receiver Height | 0.94" (23.88 mm) |
| Receiver Width | 3.27" (83.06 mm) |
| Receiver Depth | 5.50" (139.70 mm) |
| Transmitter Weight (Approximate) | 272.2 g |
| Receiver Weight (Approximate) | 272.2 g |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Shopping Center,Office,Educational Facilities |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
