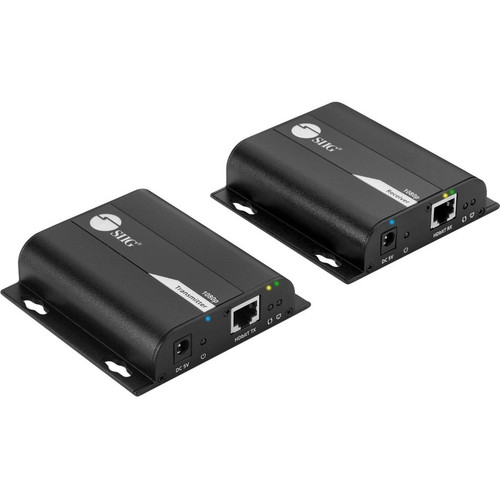

SIIG HDMI HDbitT Over IP Extender With IR For Long Distance Networked Video Extension Network Device Output Input Range Ft Mm X CE-H26T11-S1
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- HDMI HDbitT Over IP Extender with IR - 120m
- 2x Power Adapter
- IR Blaster Extension Cable & IR Receiver Extension Cable
- Quick Start Guide
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 393.70 ft (120000 mm)
Graphics Modes: Full HD
Supported Video Modes: 480p,720p,1080i,1080p
Maximum Video Resolution: 1920 x 1080
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Remote (IR) Input: 1
Remote (IR) Output: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Transmitter Height: 0.93" (23.62 mm)
Transmitter Width: 3.70" (93.98 mm)
Transmitter Depth: 3.81" (96.77 mm)
Receiver Height: 0.93" (23.62 mm)
Receiver Width: 3.70" (93.98 mm)
Receiver Depth: 3.81" (96.77 mm)
Form Factor: Wall Mountable
Transmitter Weight (Approximate): 149.7 g
Receiver Weight (Approximate): 149.7 g
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
[custom-specifications]
| Specifications | |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H26T11-S1 |
| Manufacturer Website Address | http://www.siig.com |
| Brand Name | SIIG |
| Product Name | HDMI HDbitT Over IP Extender with IR - 120m |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 393.70 ft (120000 mm) |
| Video | |
| Graphics Modes | Full HD |
| Supported Video Modes | 480p,720p,1080i,1080p |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Remote (IR) Input | 1 |
| Remote (IR) Output | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Transmitter Height | 0.93" (23.62 mm) |
| Transmitter Width | 3.70" (93.98 mm) |
| Transmitter Depth | 3.81" (96.77 mm) |
| Receiver Height | 0.93" (23.62 mm) |
| Receiver Width | 3.70" (93.98 mm) |
| Receiver Depth | 3.81" (96.77 mm) |
| Form Factor | Wall Mountable |
| Transmitter Weight (Approximate) | 149.7 g |
| Receiver Weight (Approximate) | 149.7 g |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
