SIIG USB-C Triple Video MST Docking Station With Power Delivery And Memory Card Reader SD microSD TV/Monitor/Notebook/Desktop For PC JU-DK0R11-S1
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- USB-C Triple Video MST Docking Station with PD
- Power Adapter 20V/5A
- USB 3.1 Gen-1 type C to C cable
- User Manual
Connectivity Technology: Wired
Number of Displays Supported: 3
Supported Resolutions: 1920 x 1080,3840 x 2160
Screen Mode Supported: 4K
Memory Card Reader: Yes
Memory Card Supported: SD,microSD
Device Supported: Desktop PC,Notebook,Monitor,TV
Ethernet Technology: Gigabit Ethernet
Host Interface: USB 3.0 (3.1 Gen 1) Type C
Number of USB 3.1 Gen 1 Type-A Ports: 4
Number of USB Type-C Ports: 1
USB Type-C: Yes
USB Type-C Detail: 1x 24-pin USB 3.1 Gen-1 Type-C, Female, input
Number of USB Type-A Ports: 4
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
Number of DisplayPorts: 1
DisplayPort: Yes
DisplayPort Version: 1.4
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 2
HDMI: Yes
Operating System Supported: Windows
Maximum Power Supply Wattage: 65 W
Product Color: Black

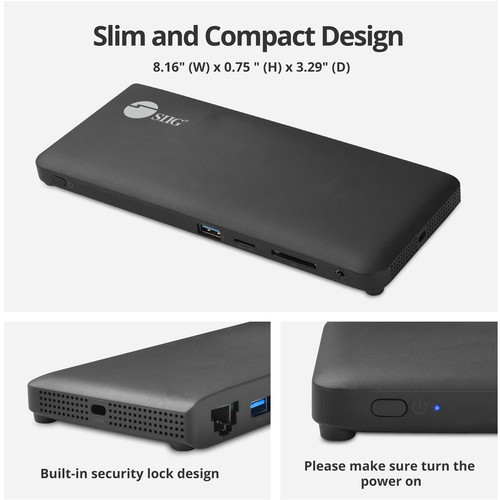

Height: 0.75" (19.05 mm)
Width: 8.16" (207.26 mm)
Depth: 3.29" (83.57 mm)
Weight (Approximate): 11.52 oz (326.59 g)
Package Contents:
Kensington Security Slot: Yes
Environmentally Friendly: Yes
Country of Origin: China
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 2 Year
[custom-specifications]
| Specifications | |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | JU-DK0R11-S1 |
| Manufacturer Website Address | http://www.siig.com |
| Brand Name | SIIG |
| Product Name | USB-C Triple Video MST Docking Station with PD |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Displays Supported | 3 |
| Supported Resolutions | 1920 x 1080,3840 x 2160 |
| Screen Mode Supported | 4K |
| Memory Card Reader | Yes |
| Memory Card Supported | SD,microSD |
| Device Supported | Desktop PC,Notebook,Monitor,TV |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | USB 3.0 (3.1 Gen 1) Type C |
| Number of USB 3.1 Gen 1 Type-A Ports | 4 |
| Number of USB Type-C Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x 24-pin USB 3.1 Gen-1 Type-C, Female, input |
| Number of USB Type-A Ports | 4 |
| USB Type-A | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 1 |
| DisplayPort | Yes |
| DisplayPort Version | 1.4 |
| Headphone/Microphone Combo Port | Yes |
| Number of HDMI Ports | 2 |
| HDMI | Yes |
| Software | |
| Operating System Supported | Windows |
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Physical Characteristics | |
| Product Color | Black |
| Height | 0.75" (19.05 mm) |
| Width | 8.16" (207.26 mm) |
| Depth | 3.29" (83.57 mm) |
| Weight (Approximate) | 11.52 oz (326.59 g) |
| Miscellaneous | |
| Package Contents |
|
| Kensington Security Slot | Yes |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
