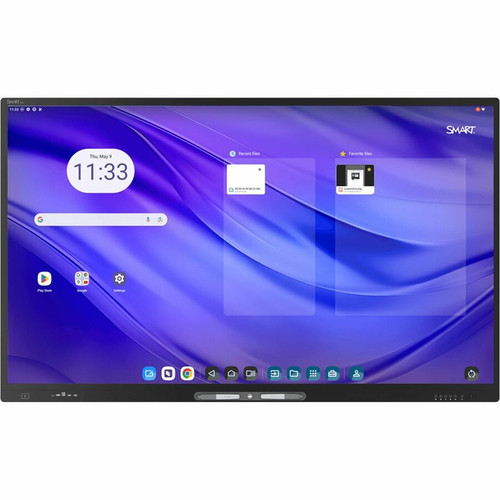

SMART Board M575-V5-P M Pro M075-V5 Collaboration Display - 75" 4K UHD Touchscreen with Android 13 - 8GB RAM - 64GB Storage - 40W Audio
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This collaboration display features a 75-inch LCD panel with LED backlighting, delivering 4K UHD resolution (3840 x 2160) at a 16:9 aspect ratio. The 8ms response time and 400 cd/m² brightness ensure clear, vibrant visuals suitable for presentations and video conferences. Wide 178-degree viewing angles maintain image quality from various positions in the room.
Connectivity is comprehensive, with 12 USB ports, HDMI, DisplayPort, VGA, Ethernet (RJ-45), audio line in/out, serial, and S/PDIF outputs. Wireless capabilities include Wi-Fi, Bluetooth, and Near Field Communication (NFC) for flexible device pairing and content sharing.
This section brings together practical product details such as Viewable Screen Size, Screen Size Class, Display Screen Type, Touchscreen, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The M075-V5 stands out with its integrated Android 13 operating system and SMART iQ software, providing a ready-to-use collaboration platform without requiring external hardware. The combination of high-performance computing, extensive connectivity, and robust audio makes it a complete meeting room solution.
Built-in Collaboration Software
Includes iQ embedded Android OS, SMART Meeting Pro Room license, 10 personal licenses, SMART Product Drivers, SMART Ink, and SMART Remote Management for centralized control.
- Room license for shared spaces
- Personal licenses for individual users
- Remote management capabilities
Professional Audio System
Dual speakers with 40W RMS output deliver clear audio for presentations and video conferences, reducing the need for external sound systems.
- 2 integrated speakers
- 40W total output
- Suitable for medium-sized rooms
Deployment / Use Cases
Ideal for conference rooms, training centers, educational institutions, and corporate collaboration spaces where interactive presentations and team brainstorming are routine. The display's standalone capability with Android 13 allows for quick setup without connecting to a separate computer.
In hybrid meeting environments, the display facilitates content sharing from multiple sources while supporting touch annotation. The VESA mount compatibility enables flexible installation on walls or mobile stands, adapting to various room layouts and usage scenarios.
Conference Room Hub
Serves as the central display for video conferences, presentations, and collaborative whiteboarding sessions, with connectivity for laptops, document cameras, and audio systems.
Education & Training
Supports interactive lessons, student collaboration, and digital annotation in classrooms and training facilities, with the durability needed for high-use environments.
Localization and Operating System
The device runs Android 13 as its primary operating system, providing access to applications through the Google Play Store. It also supports connectivity with Windows, Mac OS, and ChromeOS devices for screen sharing and content mirroring.
This multi-platform compatibility ensures seamless integration with existing IT environments, allowing users to connect their preferred devices while leveraging the display's native Android capabilities for standalone operation.
This section brings together practical product details such as Viewable Screen Size, Screen Size Class, Display Screen Type, Touchscreen, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The black display features a magnet-compatible surface for attaching accessories and notes. With dimensions of 68.39" wide × 41.77" high × 3.50" deep (1737 × 1061 × 89 mm) and a weight of 119.05 lb (54 kg), it requires appropriate mounting or placement. The VESA 800 × 400 mounting pattern supports secure installation on compatible wall mounts or mobile stands.
- Width
- 68.39" (1737 mm)
- Depth
- 3.50" (89 mm)
- Height
- 41.77" (1061 mm)
- Weight
- 119.05 lb (54000 g)
What's in the Box
The package includes all necessary components for installation and operation:
Highlights
- 75-inch 4K UHD LCD display with 400 cd/m² brightness
- 40-point infrared touch technology with tempered glass protection
- Android 13 operating system with SMART iQ software platform
- Octa-core processor with 8GB RAM and 64GB storage
- Dual speakers with 40W RMS audio output
- Comprehensive connectivity: 12 USB ports, HDMI, DisplayPort, VGA, Ethernet
- Wireless capabilities: Wi-Fi, Bluetooth, NFC
- VESA 800 × 400 mount compatible for flexible installation
- Energy Star certified with TAA compliance
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | SMART Technologies, Inc |
| Manufacturer Part Number | M575-V5-P |
| Brand Name | SMART Board |
| Product Series | M Pro |
| Product Model | M075-V5 |
| Product Name | M Pro M075-V5 Collaboration Display |
| Product Type | Collaboration Display |
| Display & Graphics | |
| Viewable Screen Size | 75" (1905 mm) |
| Screen Size Class | 75" (1905 mm) |
| Display Screen Type | LCD |
| Backlight Technology | LED |
| Screen Mode | 4K UHD |
| Screen Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Aspect Ratio | 16:9 |
| Response Time | 8 ms |
| Brightness | 400 cd/m² |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Tempered Glass | Yes |
| Ambient Light Sensor | Yes |
| Touchscreen Information | |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Touch Points | 40 |
| Touchscreen Technology | Infrared (IrDA) |
| Processor & Chipset | |
| Processor Core | Octa-core (8 Core) |
| Memory | |
| Standard Memory | 8 GB |
| Storage | |
| Flash Memory Capacity | 64 GB |
| Audio | |
| Speakers | Yes |
| Number of Speakers | 2 |
| RMS Output Power | 40 W |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Near Field Communication | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 12 |
| USB | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| S/PDIF Out | Yes |
| Software | |
| Operating System Platform | Windows,Android,Mac OS,ChromeOS |
| Operating System | Android 13 |
| Software Included | iQ embedded Android OS SMART Meeting Pro® Room license Personal licenses (×10) SMART Product Drivers and SMART Ink SMART Remote Management |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Consumption | 103 W |
| Standby Power Consumption | 200 mW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Magnet |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 800 x 400 |
| Height | 41.77" (1061 mm) |
| Width | 68.39" (1737 mm) |
| Depth | 3.50" (89 mm) |
| Weight (Approximate) | 119.05 lb (54000 g) |
| Miscellaneous | |
| Package Contents | M Pro M075-V5 Collaboration Display 2 x Pens 1 x Power Cable 1 x USB 2.0 A to B Cable 1 x USB 3.2 Gen 1 Type-C Cable, 2 x External tri-band Wi-Fi (2.4, 5, and 6-7.2 GHz) And Bluetooth® (2.4 GHz) Antennas 1 x Remote Control 2 x AAA Batteries 1 x Illustrated Installation Instructions 1 x Important Information Document |
| Energy Star | Yes |
| Country of Origin | Mexico |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What operating system does this collaboration display use?
The SMART Board M Pro M075-V5 runs Android 13 as its native operating system, providing access to applications through the Google Play Store. It also supports connectivity with Windows, Mac OS, and ChromeOS devices for screen sharing and content mirroring, making it compatible with most organizational IT environments.
How many touch points does the display support?
This display supports 40 simultaneous touch points using infrared (IrDA) touch technology. This allows multiple users to interact with the screen simultaneously for collaborative activities like whiteboarding, annotation, and interactive presentations in meeting or classroom settings.
What audio capabilities are built into the display?
The display includes two integrated speakers with a total RMS output power of 40 watts. This provides sufficient audio for presentations and video conferences in medium-sized rooms without requiring external sound systems, though audio line in/out ports are available for connecting additional audio equipment if needed.
Can this display be mounted on a wall or stand?
Yes, the display is VESA mount compatible with a 800 × 400 mm mounting pattern. This allows for secure installation on compatible wall mounts, mobile stands, or trolleys, providing flexibility in room setup and space utilization for different collaboration environments.
What connectivity options are available?
The display offers extensive connectivity including 12 USB ports, HDMI, DisplayPort, VGA, Ethernet (RJ-45), audio line in/out, serial, and S/PDIF outputs. Wireless capabilities include Wi-Fi, Bluetooth, and Near Field Communication (NFC) for flexible device pairing and content sharing from various sources.
What software is included with the display?
The display includes SMART's iQ embedded Android OS, a SMART Meeting Pro Room license for the main display, 10 personal licenses for individual users, SMART Product Drivers, SMART Ink annotation software, and SMART Remote Management for centralized control and monitoring of multiple displays.
What camera resolution or video format is listed?
It features a display specification of 3840 x 2160, giving you clear visuals for work and media use.
What microphone or speaker configuration is listed?
The communications feature set includes Yes, helping clarify how the product supports voice capture, call handling, or day-to-day conferencing use.
