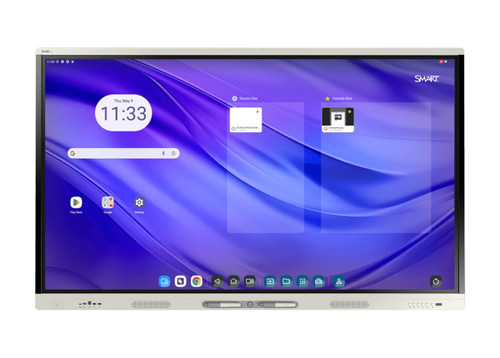

SMART Board MX286-V5-PW MX086-V5 Pro Interactive Display - 86" 4K UHD Touchscreen with IQ Platform - Octa-Core - 8GB RAM - 64GB Storage - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The SMART Board MX086-V5 Pro Interactive Display with IQ is a comprehensive collaboration solution designed for modern meeting rooms and educational environments. This 86-inch 4K UHD display combines high-resolution visual performance with advanced touch technology and integrated audio capabilities to facilitate dynamic group interactions.
Built on the Android 13 platform with SMART's IQ embedded software, this display provides a ready-to-use environment for digital whiteboarding, video conferencing, and content sharing. The system includes SMART Meeting Pro licenses for both room and personal use, along with SMART Ink and remote management tools for streamlined administration.
Relevant factors for this section include Viewable Screen Size, Screen Size Class, Display Screen Type, Touchscreen. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
At the core of the MX086-V5 is an octa-core processor paired with 8GB of DDR4 SDRAM and 64GB of combined hard drive and flash storage. This hardware foundation supports smooth operation of the Android 13 operating system and SMART's collaboration applications, ensuring responsive touch interaction and multitasking capabilities.
The display features a 3840 x 2160 4K UHD LCD panel with LED backlighting, delivering crisp visuals with 400 cd/m² brightness and wide 178-degree viewing angles. Tempered glass protection and an ambient light sensor enhance durability and viewing comfort in various lighting conditions.
Relevant factors for this section include Viewable Screen Size, Screen Size Class, Display Screen Type, Touchscreen. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The MX086-V5 Pro Interactive Display delivers several distinct advantages for collaborative environments. Its HyPr Touch Technology supports up to 50 simultaneous touch points, enabling multiple users to interact naturally with content using fingers or the included pens. The integrated audio system with 6-element microphone array and 40W speaker output facilitates clear voice pickup and playback for video conferences and multimedia presentations.
Comprehensive Connectivity
With 12 USB ports, HDMI, DisplayPort, VGA, RJ-45 Ethernet, and multiple audio connections, this display serves as a central hub for connecting laptops, document cameras, and other peripherals. Wireless options include Wi-Fi, Bluetooth, and NFC for flexible device pairing.
- 12 total USB ports
- HDMI & DisplayPort inputs
- Wi-Fi & Bluetooth wireless
Room-Ready Software Suite
The IQ platform includes SMART Meeting Pro for collaborative whiteboarding and annotation, along with SMART Ink for seamless integration with other applications. Remote management capabilities allow IT administrators to monitor and maintain multiple displays from a central location.
Deployment / Use Cases
This interactive display is engineered for deployment in conference rooms, training centers, classrooms, and corporate collaboration spaces where visual communication and group interaction are priorities. The wall-mount design with VESA 800 x 400 compatibility allows for flexible installation in both new construction and retrofit scenarios.
In corporate environments, the MX086-V5 facilitates hybrid meetings by combining high-quality video display with integrated audio and annotation tools. Educational institutions benefit from the interactive teaching capabilities, with the ability to save and share session content directly from the display. The white color option and slim 3.5-inch profile contribute to professional aesthetics in various room designs.
Localization and Operating System
The SMART Board MX086-V5 Pro Interactive Display operates on the Android 13 platform, providing a familiar and versatile environment for collaborative applications and content access. This operating system supports a wide range of educational and business software available through the Google Play Store, while SMART's IQ embedded platform delivers specialized tools for interactive meetings and digital whiteboarding.
The software suite includes SMART Meeting Pro licenses for both room-based collaboration and individual user sessions, enabling persistent annotation, content sharing, and session recording. SMART Ink integration allows users to annotate over any application displayed on the screen, while SMART Remote Management provides IT administrators with centralized control over display settings, software updates, and usage monitoring across multiple installations.
While the display interface and software menus follow standard Android conventions, the system does not include specific regional language packs or keyboard localizations beyond the default English implementation. Organizations requiring additional language support can leverage Android's accessibility features or install third-party applications from the Google Play Store to meet specific localization needs.
Android 13 Platform
The modern Android 13 operating system provides a stable foundation for collaboration applications, with regular security updates and compatibility with a wide ecosystem of educational and productivity tools available through the Google Play Store.
SMART IQ Software Suite
SMART's proprietary software includes Meeting Pro for interactive whiteboarding, SMART Ink for universal annotation capabilities, and remote management tools for enterprise deployment and maintenance across multiple displays.
Physical Profile
The MX086-V5 features a white finish with dimensions of 78.03" wide × 47.20" high × 3.50" deep (1982 × 1199 × 89 mm). At approximately 149.91 pounds (68,000 g), the display requires proper wall mounting using the VESA 800 x 400 standard. The tempered glass surface provides durability for high-traffic environments while maintaining optical clarity for touch interaction.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 47.20" (1199 mm), 78.03" (1982 mm), 3.50" (89 mm), 149.91 lb (68000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 78.03" (1982 mm)
- Depth
- 3.50" (89 mm)
- Height
- 47.20" (1199 mm)
- Weight
- 149.91 lb (68000 g)
What's in the Box
The package includes everything needed for installation and immediate use of the interactive display system.
Highlights
- 86" 4K UHD LCD display with 3840 × 2160 resolution
- HyPr Touch Technology with 50-point multi-touch capability
- Android 13 operating system with SMART IQ platform
- Octa-core processor, 8GB RAM, and 64GB storage
- Integrated 6-element microphone array and 40W speaker system
- 12 USB ports plus HDMI, DisplayPort, VGA, and audio connections
- Wi-Fi, Bluetooth, and NFC wireless connectivity
- VESA 800 × 400 wall mount compatible with white finish
- Includes SMART Meeting Pro licenses and remote management
- 3-year limited warranty with Energy Star certification
Specifications
| Specifications | |
|---|---|
| Manufacturer | SMART Technologies, Inc |
| Manufacturer Part Number | MX286-V5-PW |
| Brand Name | SMART Board |
| Product Series | MX (V5) Pro |
| Product Model | MX086-V5 |
| Product Name | MX086-V5 Pro Interactive Display With IQ |
| Product Type | Collaboration Display |
| Display & Graphics | |
| Viewable Screen Size | 86" (2184.40 mm) |
| Screen Size Class | 86" (2184.40 mm) |
| Display Screen Type | LCD |
| Backlight Technology | LED |
| Screen Mode | 4K UHD |
| Screen Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Aspect Ratio | 16:9 |
| Response Time | 8 ms |
| Brightness | 400 cd/m² |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Tempered Glass | Yes |
| Ambient Light Sensor | Yes |
| Touchscreen Information | |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Touch Points | 50 |
| Touchscreen Technology | HyPr Touch Technology |
| Processor & Chipset | |
| Processor Core | Octa-core (8 Core) |
| Memory | |
| Standard Memory | 8 GB |
| Storage | |
| Total Hard Drive Capacity | 64 GB |
| Flash Memory Capacity | 64 GB |
| Audio | |
| Speakers | Yes |
| Number of Speakers | 2 |
| Microphone | Yes |
| Number of Microphone Array Elements | 6 |
| RMS Output Power | 40 W |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Near Field Communication | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 12 |
| USB | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| S/PDIF Out | Yes |
| Software | |
| Operating System Platform | Android |
| Operating System | Android 13 |
| Software Included | IQ embedded Android OS SMART Meeting Pro Room license SMART Meeting Pro Personal licenses SMART Product Drivers and SMART Ink SMART Remote Management |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Consumption | 149 W |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 800 x 400 |
| Mount Surface | Wall |
| Height | 47.20" (1199 mm) |
| Width | 78.03" (1982 mm) |
| Depth | 3.50" (89 mm) |
| Weight (Approximate) | 149.91 lb (68000 g) |
| Miscellaneous | |
| Package Contents | MX086-V5 Pro Interactive Display With IQ 1 x Power Cable 1 x 16.5" (5 m) USB 2.0 A to B Cable 1 X 6' (1.8 m) USB 3.2 Gen 1 Type-C cable, 5A 2 x Pens 2 x External Tri-Band Wi-Fi (2.4, 5, and 6-7.2 GHz) and Bluetooth (2.4 GHz) Antennas 1 Remote Control 2 AAA Batteries 1 x Illustrated Installation Instructions 1 x Important Information Document |
| Energy Star | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What screen size is listed?
It features a display specification of 86" (2184.40 mm), giving you clear visuals for work and media use.
What resolution or display format is specified?
It features a display specification of 3840 x 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
The listed power specification is 400 cd/m², which helps position the unit for the right load level and installation role.
What input or connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
Does the display support VESA mounting or adjustment features?
It features a display specification of Yes, giving you clear visuals for work and media use.
What panel or display technology is mentioned?
It features a display specification of LCD, giving you clear visuals for work and media use.
