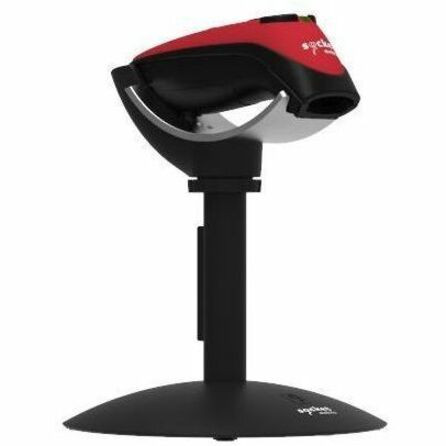

Socket Mobile CX4328-3461 DuraScan D762 Wireless Barcode Scanner - 1D/2D - 14 ft Range - Bluetooth - LED - Red
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DuraScan D762 captures 1D and 2D barcodes at distances up to 14 ft (4267.20 mm) using an LED light source and a 1280 x 960 image sensor. Its omni-directional scan pattern and 45° horizontal by 34° vertical field of view allow flexible positioning, while a maximum ambient light tolerance of 100,000 lux ensures performance in bright conditions.
Scanning precision is maintained with a minimum print contrast of 25% and supports a wide range of symbologies including Code 39, Code 128, Data Matrix, PDF417, and QR Code, along with postal codes and OCR typefaces for specialized applications.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The D762 delivers reliable scanning performance where durability and wireless freedom are critical. Its combination of long-range capability, environmental ruggedness, and broad platform support makes it a versatile tool for asset tracking, inventory control, and mobile point-of-sale.
Rugged Design for Challenging Environments
With IP54/IP55 ratings and drop resistance, the scanner operates reliably in warehouses, manufacturing floors, and outdoor delivery settings where equipment is subject to impacts, dust, and moisture.
- Drop resistant: six drops onto concrete from 6.6 ft
- Dust and water resistant per IP54/IP55
- Operating temperature range: 32°F to 113°F
Wireless Flexibility and Long Battery Life
Bluetooth connectivity eliminates cable clutter, while the 1400 mAh lithium-polymer battery supports extended shifts without frequent recharging, ideal for mobile inventory and logistics teams.
- Bluetooth wireless connectivity
- 1400 mAh battery capacity
- Hands-free form factor enhances mobility
Deployment / Use Cases
The DuraScan D762 is suited for applications requiring mobile, durable barcode scanning across diverse industries. Its wireless design and rugged construction support seamless integration into workflows where portability and reliability are paramount.
In healthcare, the LED aimer is suitable for patient-facing applications, while in retail and commercial service environments, it enables efficient checkout and inventory management. For logistics and manufacturing, the scanner tracks components and assets across the supply chain with precision and speed.
Warehouse and Logistics
Scan pallets, packages, and inventory from a distance in busy distribution centers, leveraging the 14 ft range and omni-directional scanning to improve throughput and reduce handling time.
Retail and Healthcare
Support mobile point-of-sale, patient ID verification, and medication tracking with a scanner that is easy to carry, resistant to drops, and compatible with tablets and handheld computers.
Highlights
- Wireless Bluetooth connectivity for cable-free operation with iOS, Android, and Windows devices
- Extended scanning range up to 14 ft (4267.20 mm) for flexible positioning
- Captures both 1D and 2D barcodes, including Data Matrix, PDF417, and QR Code
- Rugged design with IP54/IP55 ratings for dust and water resistance
- Drop resistant: withstands six drops onto concrete from 6.6 ft (2 m)
- LED light source and 1280 x 960 image sensor for reliable scanning in various lighting
- Omni-directional scan pattern with 45° horizontal and 34° vertical field of view
- 1400 mAh lithium-polymer battery supports extended use between charges
- Operating temperature range of 32°F to 113°F (0°C to 45°C) for indoor and outdoor use
- Suitable for warehouse, logistics, retail, healthcare, and industrial applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX4328-3461 |
| Brand Name | Socket Mobile |
| Product Line | DuraScan |
| Product Model | D762 |
| Product Name | DuraScan D762 Barcode Scanner |
| Packaged Quantity | 1 |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Composite CC-A/B, Composite CC-C, Composite TLC, Discrete 2 of 5, EAN-13/JAN, EAN8/JAN, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, ISSN EAN, Matrix 2 of 5, MSI, UPC/EAN/JAN, UPC A, UPC EO 2D: Aztec, Data Matrix, DotCode, GS1 Data Matrix (S740 with Green scan LED only), GS1 QR Code (S740 with Green scan LED only), Maxicode, Micro PDF417, MicroQR, PDF417, QR Code Postal Codes: Australia Post, Han Xin, Japan Postal, KIX Code, Maxicode, Netherlands, UPU FICS Posta, US Planet, US Postnet, USPS 4CB/One Code/Intelligent Mail OCR Typeface (S740 with Green scan LED only): OCR-A, OCR-B, MICR (E13B), US currency serial number |
| Light Source | LED |
| Scan Pattern | Omni-directional |
| Scanner Range | Extended Range |
| Scanning Distance | 14 ft (4267.20 mm) |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Six drops onto concrete - one on each side at 6.6 ft. (2 m) |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Maximum Element Resolution (Code 39) | 100 mil (2.54 mm) |
| Minimum Element Resolution (DataMatrix) | 7.50 mil (0.19 mm) |
| Maximum Element Resolution (DataMatrix) | 0.16" (4.06 mm) |
| Minimum Element Resolution (PDF417) | 5 mil (0.13 mm) |
| Image Sensor Resolution | 1280 x 960 |
| Features | Notification LED,Scan Button,Ergonomic Design |
| Network & Communication | |
| Bluetooth | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Polymer (Li-Polymer) |
| Battery Capacity | 1400 mAh |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 113°F (45°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Physical Characteristics | |
| Form Factor | Hands-free |
| Rugged | Yes |
| Color Family | Red |
| Product Color | Red |
| Durability | Drop Resistant,Dust Resistant,Water Resistant |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP54,IP55 |
| Application/Usage | Warehouse,Delivery,Logistics,Inventory,Industrial,Manufacturing,Asset Tracking,Component Tracking,Healthcare,Retail,Commercial Service |
| Platform Supported | iOS,Android,Windows |
User Manual
FAQ
What types of barcodes can the Socket Mobile DuraScan D762 scan?
The DuraScan D762 scans both 1D and 2D barcodes. Supported 1D symbologies include Code 39, Code 128, UPC/EAN, and GS1-128.2D symbologies include Data Matrix, PDF417, QR Code, and Aztec. It also reads postal codes like USPS Intelligent Mail and supports OCR typefaces such as OCR-A and MICR E13B for specialized applications like check scanning or currency serial numbers.
What is the maximum scanning distance for this barcode scanner?
The scanner has an extended scanning range of up to 14 ft (4267.20 mm). This distance allows operators to scan barcodes from a significant range, which is useful in warehouse environments where items may be on high shelves or in logistics settings where quick scanning of pallets and packages is required without close proximity.
Is the DuraScan D762 compatible with mobile devices and computers?
Yes, the scanner supports iOS, Android, and Windows platforms via Bluetooth wireless connectivity. This compatibility enables seamless pairing with smartphones, tablets, and handheld computers, making it ideal for mobile point-of-sale, inventory management, and field service applications across different operating systems.
How durable is this barcode scanner for industrial use?
The D762 is built for rugged use with an IP54 and IP55 ingress protection rating, making it resistant to dust and water. It is drop resistant, tested to withstand six drops onto concrete from 6.6 ft (2 m)—one on each side. This durability ensures reliable performance in demanding environments like warehouses, manufacturing floors, and outdoor logistics.
What battery does the scanner use, and how long does it last?
The scanner is powered by a 1400 mAh lithium-polymer (Li-Polymer) battery. While exact runtime depends on usage patterns, this capacity supports extended scanning sessions typical in shift-based operations. The battery chemistry provides stable power delivery and rechargeability, suitable for all-day use in retail, healthcare, or inventory tracking without frequent recharging.
Can the scanner operate in extreme temperatures or bright lighting?
Yes, the DuraScan D762 operates in temperatures from 32°F to 113°F (0°C to 45°C) and stores safely from -40°F to 158°F (-40°C to 70°C). It tolerates up to 100,000 lux of ambient light, ensuring reliable scanning in brightly lit environments such as outdoor loading docks or sunlit warehouses, without performance degradation.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
