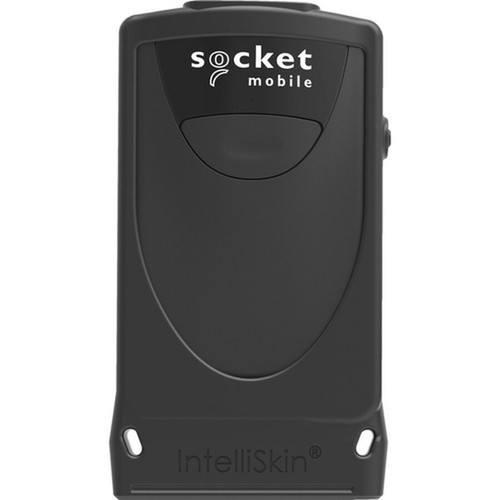

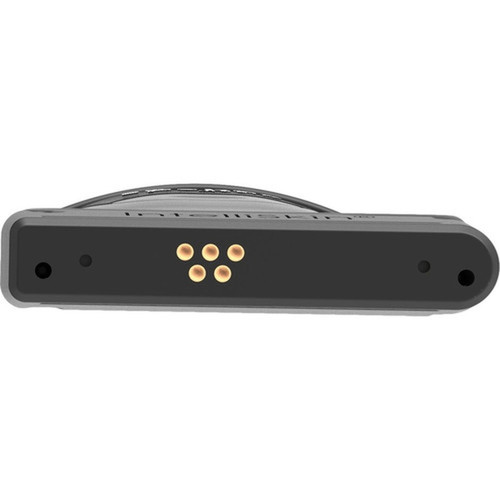

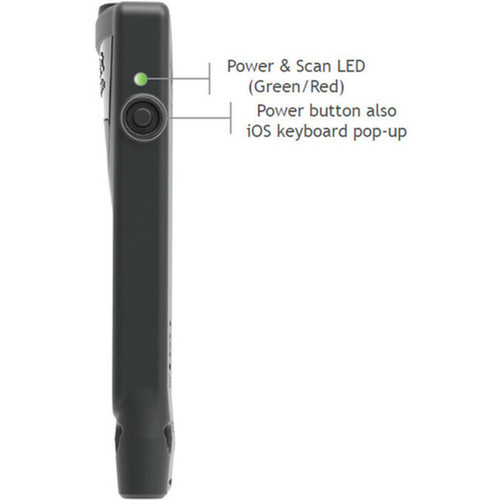

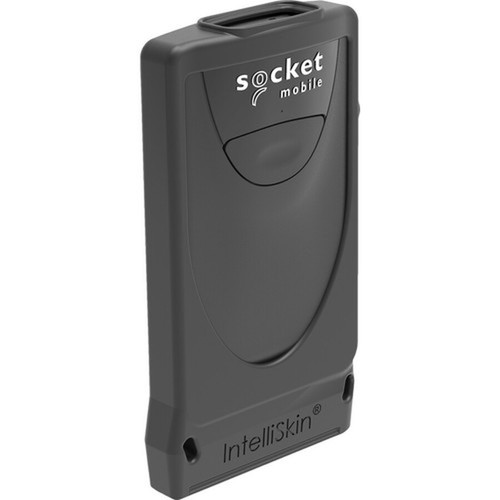

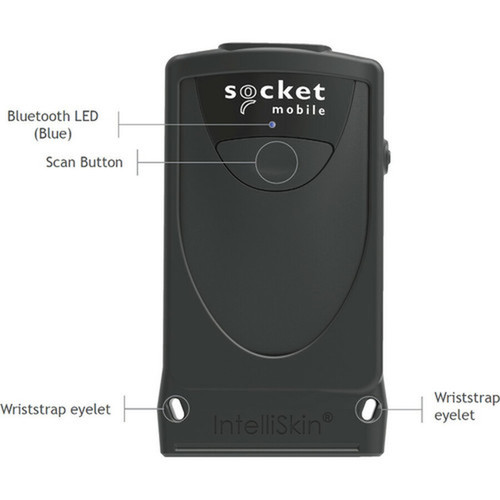

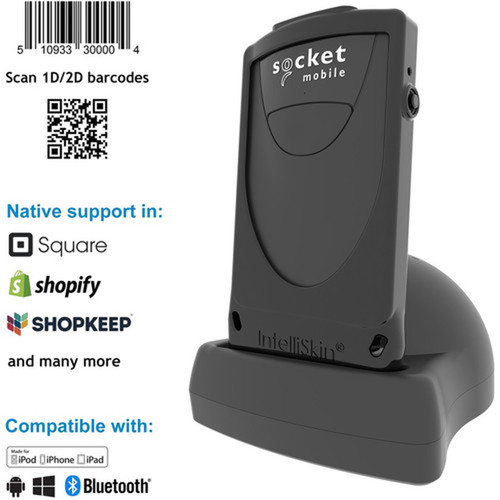

Socket Mobile CX3558-2187 DuraScan D860 Handheld Barcode Scanner - Wireless Bluetooth - 1D/2D - LED - 19. 49" Scan Distance
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DuraScan D860 delivers robust scanning performance with support for over 30 1D symbologies including Code 128, Code 39, UPC/EAN, and GS1 Databar formats. Its 2D capabilities cover modern matrix codes such as QR Code, Data Matrix, PDF417, and Aztec, along with postal codes from multiple regions including USPS Intelligent Mail and Australia Post.
The scanner's optical system achieves a maximum working distance of 19.49 inches (495 mm), providing flexibility for scanning items at varying distances. Bluetooth wireless technology ensures compatibility with mobile devices, tablets, and computers without requiring dedicated receiver hardware.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DuraScan D860 offers distinct advantages for organizations seeking reliable, mobile scanning solutions. Its laser-free LED design eliminates eye safety concerns while maintaining high-performance scanning across diverse barcode types.
Enhanced Mobility
Bluetooth connectivity enables cable-free operation, allowing users to scan items throughout a facility without being tethered to a workstation.
- Eliminates cable management issues
- Extends operator range
- Reduces workstation clutter
Comprehensive Symbology Support
Handles both traditional linear barcodes and modern 2D codes, including specialized formats for retail, logistics, and postal applications.
- 30+ 1D symbologies
- Full 2D code support
- Postal code recognition
Safety-First Design
LED illumination provides consistent scanning performance without the potential eye hazards associated with laser-based scanners.
- No laser safety concerns
- Suitable for extended use
- Lower maintenance requirements
Deployment / Use Cases
The DuraScan D860 is optimized for mobile data collection scenarios where operators need to scan items at varying distances without cable constraints. Its compact handheld form factor and wireless operation make it ideal for dynamic environments where mobility directly impacts productivity.
In retail settings, staff can use the D860 for inventory counts, price verification, and receiving operations while moving freely throughout the store. Warehouse personnel benefit from the extended scan distance when checking pallet labels or scanning items on high shelves. The scanner's comprehensive symbology support ensures compatibility with supplier barcodes, internal tracking labels, and customer-facing codes across different industries.
Retail Inventory Management
Enable staff to conduct floor counts, verify pricing, and process receiving without returning to fixed workstations.
Warehouse Operations
Scan pallet labels, bin locations, and item barcodes throughout storage areas with the extended 19.49-inch working distance.
Physical Profile
The DuraScan D860 features a compact handheld design measuring 4.20 inches in height with a slim 0.66-inch depth profile. Weighing just 2.52 ounces, the scanner provides comfortable one-handed operation during extended scanning sessions. The ergonomic form factor accommodates various hand sizes while maintaining a professional appearance suitable for customer-facing environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.20" (106.68 mm), 0.66" (16.76 mm), 2.52 oz (71.440798 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Depth
- 0.66" (16.76 mm)
- Height
- 4.20" (106.68 mm)
- Weight
- 2.52 oz (71.440798 g)
What's in the Box
The package includes all components needed for immediate deployment of the barcode scanning system.
Highlights
- Wireless Bluetooth connectivity for cable-free mobility
- 19.49-inch (495 mm) maximum scanning distance
- LED light source eliminates laser safety concerns
- Comprehensive 1D and 2D barcode symbology support
- Compact handheld design weighing just 2.52 ounces
- Includes universal charging dock for convenient recharging
- Supports postal codes from multiple regions including USPS
- OCR capability for specialized character recognition
Specifications
| Specifications | |
|---|---|
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX3558-2187 |
| Brand Name | Socket Mobile |
| Product Line | DuraScan |
| Product Series | 800 |
| Product Model | D860 |
| Product Name | DuraScan D860 Handheld Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D Symbologies: Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Composite CC-A/B, Composite CC-C, Composite TLC, Discrete 2 of 5, EAN-13/JAN, EAN-8/JAN, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, ISSN EAN, Matrix 2 of 5, MSI, UPC/EAN/JAN, UPC A, UPC EO 2D Symbologies: Aztec, Data Matrix, Dot Code, Han Xin, Maxicode, Micro PDF417, MicroQR, PDF417, QR Code Postal Codes: Australia Post, Japan Postal, KIX Code, Maxicode, Netherlands, UPU FICS Posta, US Planet, US Postnet, USPS 4CB/One Code/Intelligent Mail OCR Type Face: OCR-A, OCR-B, MICR-E13B, US currency serial number |
| Light Source | LED |
| Scanning Distance | 19.49" (495 mm) |
| Network & Communication | |
| Bluetooth | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Height | 4.20" (106.68 mm) |
| Depth | 0.66" (16.76 mm) |
| Weight (Approximate) | 2.52 oz (71.440798 g) |
| Miscellaneous | |

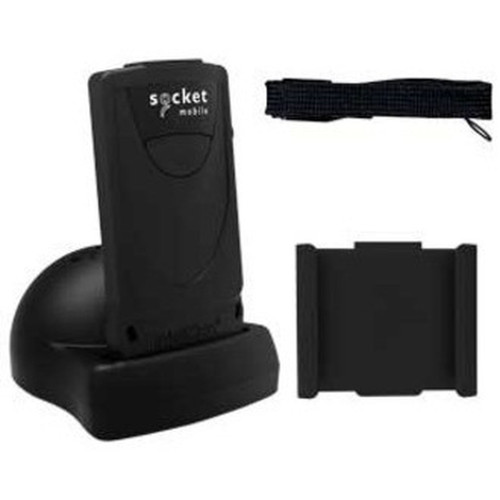

| Package Contents | DuraScan D860, Universal Barcode Scanner/Travel Id Reader Charging Dock |
User Manual
FAQ
What types of barcodes can the DuraScan D860 read?
The DuraScan D860 reads both 1D and 2D barcodes, including over 30 linear symbologies like Code 128, UPC/EAN, and Code 39, plus 2D codes such as QR Code, Data Matrix, and PDF417. It also supports postal codes from multiple regions including USPS Intelligent Mail, Australia Post, and Japan Postal codes.
How does the wireless connectivity work with this scanner?
The scanner uses Bluetooth technology to wirelessly transmit scanned data to compatible devices. This eliminates the need for cables, allowing operators to move freely while scanning. The wireless connection maintains reliable data transmission within typical Bluetooth range limits.
What is the maximum scanning distance for the D860?
The DuraScan D860 has a maximum scanning distance of 19.49 inches (495 millimeters). This extended range allows operators to scan barcodes on items that are not immediately within reach, such as items on high shelves or across work surfaces.
Does this scanner use laser or LED technology?
The D860 uses LED illumination rather than laser technology. This provides consistent scanning performance without the eye safety concerns associated with laser scanners, making it suitable for extended use in various environments.
What is included in the package with the scanner?

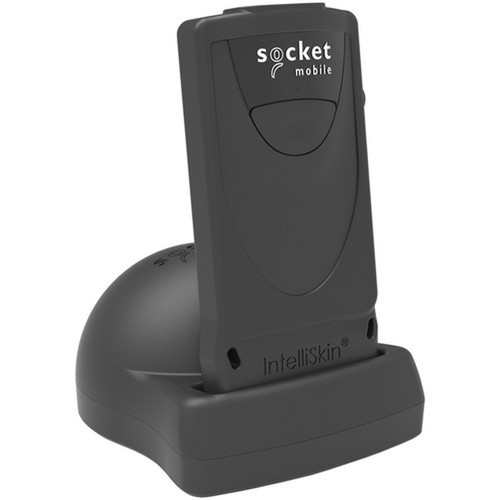

The package includes the DuraScan D860 handheld barcode scanner and a universal barcode scanner/travel ID reader charging dock. The charging dock provides convenient recharging between scanning sessions without requiring separate power adapters.
How compact and portable is the DuraScan D860?
The scanner measures 4.20 inches in height with a slim 0.66-inch depth profile and weighs just 2.52 ounces. This compact, lightweight design enables comfortable one-handed operation during extended use while maintaining portability for mobile scanning applications.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
