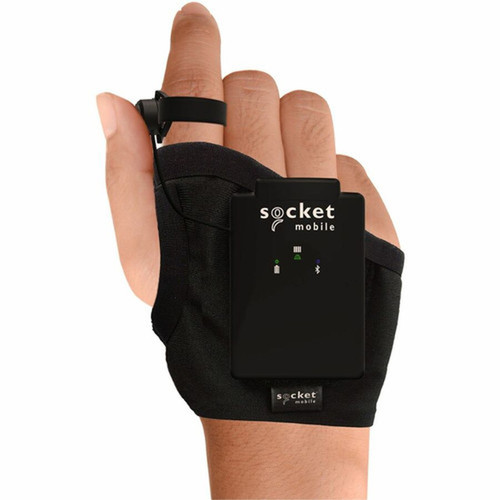

Socket Mobile CX4146-3213 DuraScan DW930 Barcode Scanner Kit - Wireless Bluetooth - 15 ft Laser Scan - 1D - IP65 Rugged
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner supports comprehensive 1D barcode symbologies including Code 39, Code 128, UPC-A, UPC-E, EAN-13, EAN-8, Interleaved 2 of 5, GS1-128, GS1 DataBar, Codabar, and multiple industry-specific formats. It achieves precise reading with a minimum element resolution of 5 mil (0.13 mm) and maximum resolution of 100 mil (2.54 mm) for Code 39, handling print contrast as low as 25%.
The modular form factor incorporates ergonomic design elements with a curved grip, dedicated scan button, and notification LED for operational feedback. A 700 mAh lithium-polymer battery provides up to 13 hours of continuous operation with an 8-hour recharge cycle, ensuring full-shift productivity without frequent power interruptions.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DuraScan DW930 combines industrial durability with practical wireless freedom, offering distinct advantages for mobile scanning applications. Its rugged construction meets IP65 and IP54 ingress protection standards, providing waterproof, dustproof, and spill-resistant performance that withstands harsh environmental conditions and accidental drops.
Extended Operational Range
With a 15-foot scanning distance, operators can efficiently manage inventory on high shelves, across conveyor belts, or in large storage areas without physical repositioning, significantly reducing scanning time and labor effort.
- 15 ft (4572 mm) effective range
- Eliminates ladder climbs for high items
- Reduces operator movement fatigue
Platform Versatility
Compatible with iOS, Android, Windows, Linux, macOS, smartphones, and PCs, this scanner integrates seamlessly into existing technology ecosystems without requiring specialized hardware or software modifications.
- Cross-platform Bluetooth connectivity
- No proprietary software required
- Plug-and-play with most systems
Deployment / Use Cases
The DW930 scanner kit is optimized for environments where mobility, durability, and scanning accuracy directly impact operational efficiency. Its wireless design and rugged specifications make it particularly valuable in dynamic settings where cables create safety hazards or limit worker movement.
In retail environments, staff can quickly verify pricing, conduct inventory counts, and process returns from anywhere in the store. Warehouse and logistics teams benefit from the extended scanning range when managing palletized goods, conducting cycle counts, or verifying shipments without climbing ladders or moving heavy items. Healthcare facilities utilize the scanner for patient identification, medication verification, and specimen tracking while maintaining sterile environments free from cable contamination.
Inventory Management
Accelerate stock-taking and reconciliation processes with wireless scanning that covers entire aisles from a central position, reducing counting time by up to 40% compared to tethered alternatives.
Field Service & Delivery
Delivery drivers and field technicians confirm shipments, capture proof of delivery, and update job status in real-time using mobile devices paired with the scanner, improving documentation accuracy and customer communication.
Physical Profile
Designed for all-day comfort during continuous scanning operations, the DW930 features an ergonomic curved grip that reduces hand fatigue during extended use. The modular form factor allows for potential future customization or accessory integration while maintaining a lightweight 3.2-ounce profile that minimizes wrist strain. The included serial cable provides charging and data transfer options when wireless connectivity isn't required or when connecting to legacy systems.
- Weight
- 3.20 oz (90.70 g)
What's in the Box
This complete kit includes everything needed for immediate deployment in wireless scanning applications.
Package contents include Serial. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Wireless Bluetooth connectivity eliminates cable constraints and increases operator mobility
- 15-foot laser scanning distance covers extensive areas without physical repositioning
- IP65 and IP54 ratings provide waterproof, dustproof, and spill-resistant durability
- Supports comprehensive 1D barcode symbologies for retail, logistics, and healthcare applications
- 13-hour battery runtime ensures full-shift operation without frequent recharging
- Ergonomic curved grip with dedicated scan button reduces hand fatigue during extended use
- Withstands drops from 6.6 feet onto concrete across all six sides
- Compatible with iOS, Android, Windows, Linux, macOS, smartphones, and PCs
- Operates in extreme temperatures from -4°F to 122°F (-20°C to 50°C)
- Includes 1-year limited warranty with RoHS and WEEE environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX4146-3213 |
| Brand Name | Socket Mobile |
| Product Line | DuraScan |
| Product Model | DW930 |
| Product Name | Durascan DW930 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D Symbologies: Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Discrete 2 of 5, EAN-8, EAN 13, GS1-128, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, Interleaved 2 of 5, Inverse 1D, ISBT 128, Korean 3 of 5, Matrix 2 Of 5, MSI, UPC-A, UPC-E/E1 |
| Light Source | Laser |
| Scan Mode | Trigger |
| Scanning Distance | 15 ft (4572 mm) |
| Cable Type Included | Serial |
| Maximum Ambient Light | 86000 lux |
| Drop Specification | 6 drops to concrete - 1 on each side at 6.6 ft. (2 m) |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 100 mil (2.54 mm) |
| Features | Notification LED,Curved,Scan Button,Ergonomic Design |
| Network & Communication | |
| Bluetooth | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Polymer (Li-Polymer) |
| Battery Capacity | 700 mAh |
| Maximum Battery Run Time | 13 Hour |
| Maximum Battery Recharge Time | 8 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Physical Characteristics | |
| Form Factor | Modular |
| Rugged | Yes |
| Durability | Water Proof,Dust Proof,Dust Resistant,Water Resistant,Spill Resistant |
| Weight (Approximate) | 3.20 oz (90.70 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65,IP54 |
| Application/Usage | Logistics,Transportation,Manufacturing,Retail,Healthcare,Picking,Sorting,Inventory,Laboratory,Packing,Warehouse |
| Platform Supported | Linux,iOS,Android,Mac,Smartphone,PC |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What types of barcodes can the DuraScan DW930 read?
The scanner reads comprehensive 1D barcode symbologies including Code 39, Code 128, UPC-A, UPC-E, EAN-13, EAN-8, Interleaved 2 of 5, GS1-128, GS1 DataBar, Codabar, Bookland EAN, Chinese 2 of 5, Code 11, Code 93, Discrete 2 of 5, GS1 DataBar Expanded, GS1 DataBar Limited, Inverse 1D, ISBT 128, Korean 3 of 5, Matrix 2 of 5, and MSI. This covers most retail, logistics, healthcare, and industrial labeling standards.
How does the wireless connectivity work with different devices?
The DW930 uses Bluetooth technology to pair with compatible devices including iOS and Android smartphones, tablets, Windows PCs, Linux systems, and macOS computers. Once paired, it transmits scanned data directly to the host device without cables, allowing operators to move freely within the Bluetooth range while maintaining connection stability for continuous scanning operations.
What is the actual scanning range in practical use?
The scanner maintains reliable reading at distances up to 15 feet (4572 mm) under normal operating conditions. This extended range allows operators to scan items on high shelves, across conveyor belts, or in large storage areas without physical repositioning. The laser scanning technology works effectively in various lighting conditions, including low ambient light environments.
How durable is this scanner for industrial environments?
Built to withstand demanding conditions, the DW930 carries IP65 and IP54 ingress protection ratings making it waterproof, dustproof, and spill-resistant. It survives 6 drops from 6.6 feet onto concrete across all six sides. The operating temperature range extends from -4°F to 122°F (-20°C to 50°C) with 95% humidity tolerance, ensuring reliable performance in warehouses, loading docks, and outdoor applications.
What is the battery life and charging time?
The integrated 700 mAh lithium-polymer battery delivers up to 13 hours of continuous operation on a full charge, supporting extended shifts without power interruptions. Recharging from empty to full capacity takes approximately 8 hours using the included serial cable. The battery chemistry maintains stable performance across the scanner's operating temperature range.
What platforms and operating systems are supported?
This scanner is compatible with Linux, iOS, Android, macOS, Windows, smartphones, and PCs. The Bluetooth connectivity works with standard HID or SPP profiles, allowing integration without proprietary drivers in most cases. This cross-platform support makes the DW930 suitable for mixed-device environments commonly found in retail, healthcare, and logistics operations.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
