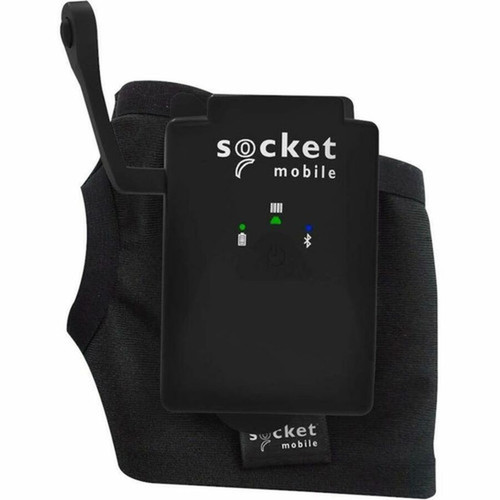

Socket Mobile CX4145-3212 DuraScan Wear DW930 - Wearable 1D Laser Barcode Scanner - Wireless Bluetooth - 15 ft Scan Distance - IP65/IP54 Rugged
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DuraScan Wear DW930 utilizes a laser light source for precise 1D barcode scanning across a standard range. It supports scanning distances up to 15 ft (4572 mm) with a maximum ambient light tolerance of 86000 lux, maintaining accuracy in bright environments. The scanner reads a comprehensive set of 1D symbologies including Code 39, Code 128, UPC-A, EAN-13, GS1-128, and over 20 other common formats.
Technical performance includes a minimum print contrast of 25% and element resolution for Code 39 ranging from 5 mil (0.13 mm) to 100 mil (2.54 mm). The curved ergonomic design incorporates a dedicated scan button and notification LED for intuitive operation and status feedback.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DuraScan Wear DW930 delivers productivity advantages through its wireless wearable design and rugged construction. By eliminating cables, workers gain mobility and reduce entanglement risks while maintaining continuous scanning capability throughout their shifts.
Extended Mobility
Bluetooth wireless connectivity enables scanning from up to 15 feet away, allowing workers to move freely without being tethered to a base station or device.
- 13-hour battery runtime
- 8-hour recharge time
- Lithium polymer battery chemistry
Rugged Reliability
Built to withstand industrial environments with IP65/IP54 ratings for dust and water resistance, plus drop testing to concrete from 6.6 feet.
- Dust proof and water resistant
- Tested for 6 drops to concrete
- Operating range -4°F to 122°F
Deployment / Use Cases
The DW930 wearable scanner is optimized for mobile data capture applications where hands-free operation and worker mobility are essential. Its wireless design and rugged construction make it suitable for environments where traditional handheld scanners would be impractical or limiting.
In logistics and warehouse settings, workers can scan items during picking and packing without interrupting workflow to handle a scanner. Retail staff can conduct inventory counts while moving through aisles. Healthcare professionals can track equipment and supplies without compromising sterile environments. Manufacturing personnel can scan components on assembly lines while keeping both hands available for production tasks.
Warehouse & Logistics
Ideal for order picking, sorting, and inventory management where workers need both hands free for handling packages while maintaining scanning capability.
- Picking operations
- Sorting stations
- Inventory audits
Retail & Healthcare
Supports price verification, stock counts, and asset tracking in environments where mobility and hygiene are important considerations.
- Retail inventory
- Healthcare equipment tracking
- Laboratory sample management
Physical Profile
The wearable form factor weighs just 3.20 ounces (90.70 grams) for comfortable all-day use without fatigue. The curved ergonomic design fits naturally on the hand, with a dedicated scan button positioned for easy thumb activation. The compact, lightweight construction combined with rugged IP65/IP54 ratings makes the DW930 suitable for extended use in challenging environments where durability and comfort are equally important.
- Weight
- 3.20 oz (90.70 g)
Highlights
- Wearable 1D laser barcode scanner for hands-free operation
- Wireless Bluetooth connectivity eliminates cable constraints
- 15 ft (4572 mm) scanning distance for extended reach
- IP65 and IP54 ratings for dust and water resistance
- 13-hour battery runtime with 8-hour recharge time
- Supports over 20 1D barcode symbologies including Code 39, Code 128, UPC
- Rugged construction tested for 6 drops to concrete at 6.6 ft
- Compatible with Linux, iOS, Android, Mac, smartphones, and PCs
- Operating temperature range from -4°F to 122°F (-20°C to 50°C)
- 1-year limited warranty with RoHS and WEEE compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX4145-3212 |
| Brand Name | Socket Mobile |
| Product Line | DuraScan |
| Product Model | DW930 |
| Product Name | DuraScan Wear DW930 - Wearable 1D Laser Barcode Scanner |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D: Bookland EAN Chinese 2 of 5 Codabar Code 11 Code 39 Code 93 Code 128 Discrete 2 of 5 EAN-8 EAN 13 GS1-128 GS1 Databar GS1 Databar Expanded GS1 Databar Limited Interleaved 2 of 5 Inverse 1D ISBT 128 Korean 3 of 5 Matrix 2 Of 5 MSI UPC-A, UPC-E/E1 |
| Light Source | Laser |
| Scan Mode | Trigger |
| Scanner Range | Standard Range |
| Scanning Distance | 15 ft (4572 mm) |
| Maximum Ambient Light | 86000 lux |
| Drop Specification | 6 drops to concrete - 1 on each side at 6.6 ft. (2 m) |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 100 mil (2.54 mm) |
| Features | Notification LED,Curved,Scan Button,Ergonomic Design |
| Network & Communication | |
| Bluetooth | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Polymer (Li-Polymer) |
| Battery Capacity | 700 mAh |
| Maximum Battery Run Time | 13 Hour |
| Maximum Battery Recharge Time | 8 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Physical Characteristics | |
| Form Factor | Wearable |
| Rugged | Yes |
| Durability | Dust Proof,Dust Resistant,Water Proof,Water Resistant |
| Weight (Approximate) | 3.20 oz (90.70 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65,IP54 |
| Application/Usage | Logistics,Transportation,Manufacturing,Retail,Healthcare,Picking,Sorting,Inventory,Laboratory,Packing,Warehouse |
| Platform Supported | Linux,iOS,Android,Mac,Smartphone,PC |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What type of barcodes can the DuraScan Wear DW930 scan?
The DW930 scans 1D barcodes exclusively, supporting over 20 symbologies including Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, GS1-128, GS1 Databar, Codabar, Code 11, Code 93, and Interleaved 2 of 5. It handles common retail, logistics, and industrial barcode formats with laser precision.
How does the wireless connectivity work with this scanner?
The scanner uses Bluetooth wireless technology to transmit scanned data to compatible devices. This eliminates cables that can tangle or restrict movement, allowing workers to scan from up to 15 feet away from their base station or connected device while maintaining reliable data transmission.
What is the battery life and how long does it take to recharge?
The 700 mAh lithium polymer battery provides up to 13 hours of continuous scanning on a full charge. Recharging takes approximately 8 hours to reach full capacity, ensuring the scanner is ready for extended shifts in warehouse, retail, or healthcare environments.
How durable is this wearable scanner for industrial use?
The DW930 meets IP65 and IP54 ingress protection ratings for dust and water resistance. It has been drop-tested to withstand 6 drops onto concrete from 6.6 feet (2 meters), with one drop on each side. This rugged construction ensures reliable performance in demanding environments like warehouses, manufacturing floors, and outdoor logistics yards.
What operating systems and devices are compatible with this scanner?
The scanner supports a wide range of platforms including Linux, iOS, Android, macOS, smartphones, and PCs. This broad compatibility makes it suitable for integration with existing mobile devices, tablets, and computer systems across different organizational environments without requiring specialized hardware.
What are the key applications for this wearable barcode scanner?
Primary applications include logistics and transportation operations, manufacturing floor tracking, retail inventory management, healthcare equipment monitoring, picking and sorting in warehouses, laboratory sample tracking, and packing operations. Its hands-free wearable design is particularly valuable where workers need mobility while maintaining scanning capability.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
