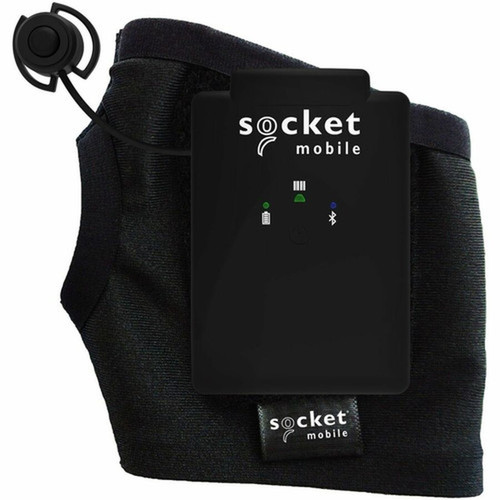

Socket Mobile DuraScan Wear DW940 1D/2D Universal Barcode Scanner - Wireless Connectivity - 19.50" (495.30 mm) Scan Distance - 1D, 2D (CX4202-3283)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Bookland EAN
- Chinese 2 of 5
- Codabar
- Code 11
- Code 39
- Code 93
- Code 128
- Composite CC-A/B
- Composite CC-C
- Composite TLC
- Discrete 2 of 5
- EAN-13/ JAN
- EAN-8/JAN
- GS1 Databar
- GS1 Databar Expanded
- GS1 Databar Limited
- GS1-128
- Interleaved 2 of 5
- ISBT 128
- ISSN EAN
- Matrix 2 of 5
- MSI
- UPC/EAN/JAN
- UPC A
- UPC EO
- Aztec
- Data Matrix
- DotCode
- GS1 Data Matrix (S740 with Green scan LED only)
- GS1 QR Code (S740 with Green scan LED only)
- Maxicode
- Micro PDF417
- MicroQR
- PDF417
- QR Code
- Australia Post
- Han Xin
- Japan Postal
- KIX Code
- Maxicode
- Netherlands
- UPU FICS Posta
- US Planet
- US Postnet
- USPS 4CB/One Code/Intelligent Mail
- 56 drops to concrete - 1 on each side at 6.6 ft. (2 m)
- 1 x DuraScan Wear DW940 1D/2D Universal Barcode Scanner and Rechargeable Battery (pre-installed)
- 1 x Hand Wrap - Right/Small
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D:
2D:
Postal Codes:
Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Area,Omni-directional
Scanner Range: Standard Range
Scanning Distance: 19.50" (495.30 mm)
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Maximum Ambient Light: 86000 lux
Drop Specification:
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Minimum Element Resolution (PDF417): 6.67 mil (0.17 mm)
Image Sensor Resolution: 1280 x 960
Illumination Type: LED
Features: Ergonomic Design,Notification LED,Scan Button
Bluetooth: Yes
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 95%
Form Factor: Wearable
Rugged: Yes
Durability: Dust Proof,Water Proof
Weight (Approximate): 3.20 oz (90.7 g)
Package Contents:
Ingress Protection (IP) Rating: IP67,IP65
Application/Usage: Transportation,Logistics,Picking,Packing,Sorting,Delivery,Component Tracking,Manufacturing,Assembly Line,Inventory,Retail,Warehouse,Healthcare,Pharmacy,Industrial
Platform Supported: PC,Linux,iOS,Mac,Android
Environmentally Friendly: Yes
Environmental Certification: TÜV Rheinland Green Product
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 1 Year
- LED aimer is a perfect choice for patient-facing applications
- With Bluetooth technology, you can scan barcodes and then transmit data from the base
[custom-specifications]
| Specifications | |
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX4202-3283 |
| Manufacturer Website Address | http://www.socketmobile.com |
| Brand Name | Socket Mobile |
| Product Line | DuraScan Wear |
| Product Model | DW940 |
| Product Name | DuraScan Wear DW940 1D/2D Universal Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
2D:
Postal Codes:
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Area,Omni-directional |
| Scanner Range | Standard Range |
| Scanning Distance | 19.50" (495.30 mm) |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Maximum Ambient Light | 86000 lux |
| Drop Specification |
|
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 6.67 mil (0.17 mm) |
| Image Sensor Resolution | 1280 x 960 |
| Illumination Type | LED |
| Features | Ergonomic Design,Notification LED,Scan Button |
| Network & Communication | |
| Bluetooth | Yes |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Physical Characteristics | |
| Form Factor | Wearable |
| Rugged | Yes |
| Durability | Dust Proof,Water Proof |
| Weight (Approximate) | 3.20 oz (90.7 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP67,IP65 |
| Application/Usage | Transportation,Logistics,Picking,Packing,Sorting,Delivery,Component Tracking,Manufacturing,Assembly Line,Inventory,Retail,Warehouse,Healthcare,Pharmacy,Industrial |
| Platform Supported | PC,Linux,iOS,Mac,Android |
| Environmentally Friendly | Yes |
| Environmental Certification | TÜV Rheinland Green Product |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
